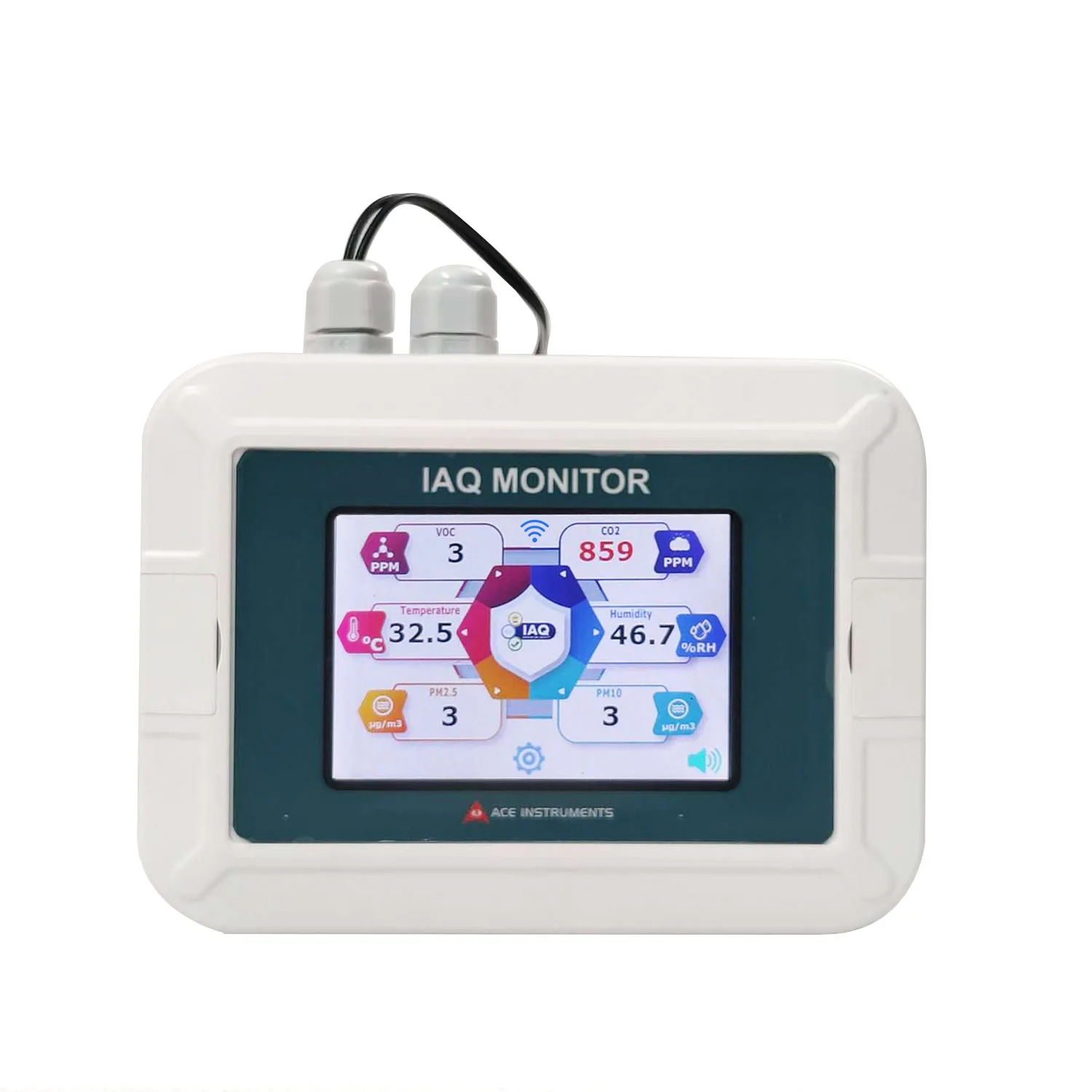

Smart Indoor Air Quality Monitor is an advanced Air Quality Monitor designed to track and analyze indoor environmental conditions in real time. This intelligent Air Quality Sensor monitors six key parameters, including PM2.5, PM10, CO₂, temperature, humidity, and VOC, to provide accurate insights into indoor air conditions. As a reliable Air Quality Monitoring Device, it detects pollutants, harmful gases, and airborne particles while identifying poor ventilation and rising pollution levels. Ideal for offices, commercial buildings, healthcare facilities, and smart buildings, this monitor helps maintain a healthier indoor environment, improves air management, and supports better occupant comfort and safety.
Applications:- Hospitals, Pharmaceuticals, Modern Workspaces, Smart Residences, Biolabs and Critical Storage Units..
Air Quality Monitor ACE AI IAQ6 PH is a device used to measure and tract the quality of the air inside the house or closed places. This device helps to monitor and display various levels of air pollutants and environment facts and these are used to asses indoor or outdoor air quality helping individual and communities under pollution level identify potential health risks, and take action to improve air quality. Air Quality Monitor Connects With RS 485 Modbus communication wi-fi communication or LAN network using RJ45 output.
| Model No | AI-IAQ6-PH |
|---|---|
| Measuring Parameters | Temperature, Humidity, CO2, VOC,PM10,PM2.5 |
| Temperature Range | (0º to 50ºC |
| Temperature Accuracy | ±0.5°(0-65°) |
| Humidity Range | 0 to 100% RH |
| Humidity Accuracy | ±3%RH |
| CO2 Measuring Range | 0 to 5000 ppm |
| CO2 Accuracy | ± 50ppm (or) +5% of reading value |
| VOC Measuring Range | 0 to 500 PPM |
| VOC Accuracy | ±30PPM |
| PM 2.5 Range | 0 to 1000 µg/m3 |
| PM 2.5 Accuracy | ±15 µg/m3 (when concentration is ≤ 100µg/m3) ±15% (when concentration is > 100µg/m3 ) |
| PM 10 Measuring Range | 0 to 1000 μg/m3 |
| PM 10 Accuracy | ±15 µg/m3 (when concentration is ≤ 100µg/m3) ±15% (when concentration is > 100µg/m3 ) |
| Display | 3” Touch Screen Full Colour TFT Display |
| Communication | Using RS485 Modbus communication /Wi-Fi communication or *LAN network using RJ 45 Output. |
| Power Supply | 12 VDC Adapter provided along with for direct plug in to 230 VAC / 110 VAC |
| Enclosure | Panel /Wall mounting ABS Plastic Body |
| Dimensions | 120(W) x80(H) x 55(D)mm. |
| Manufacturer | Ace Instruments |
| Dimensions | Array |
