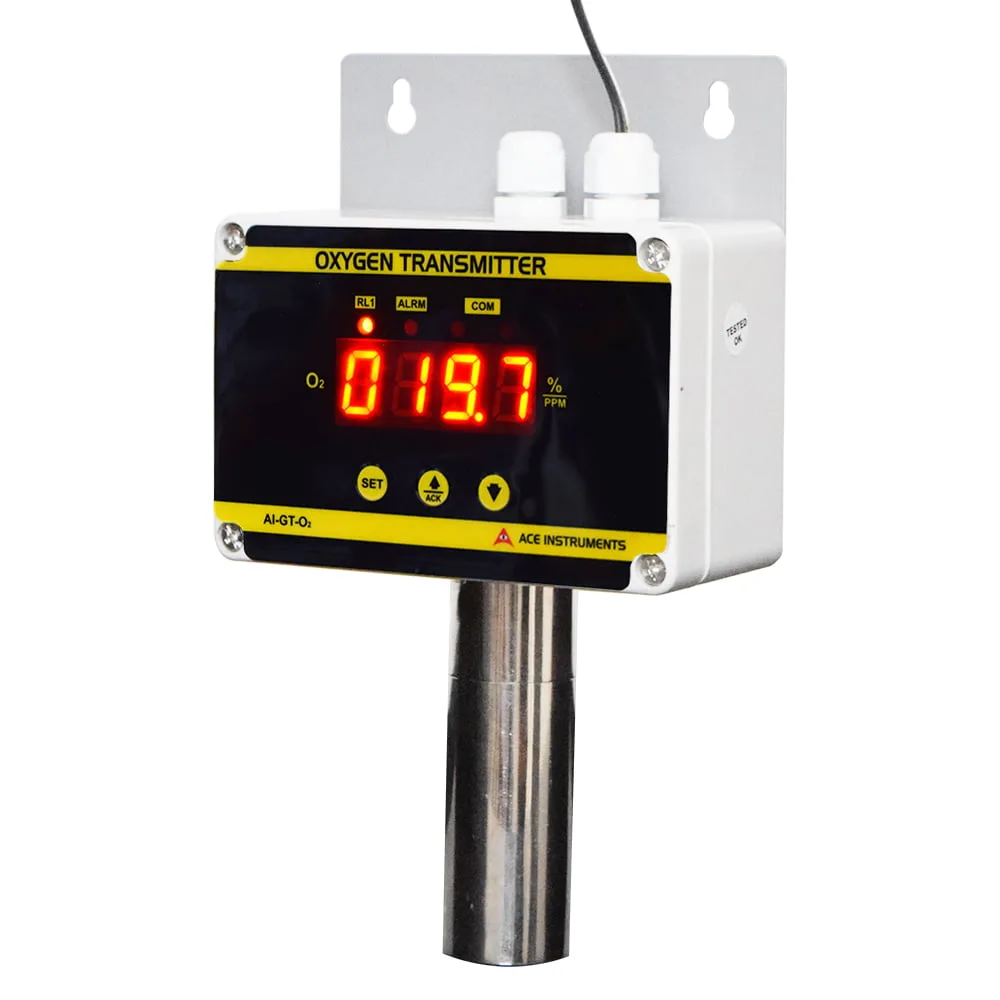

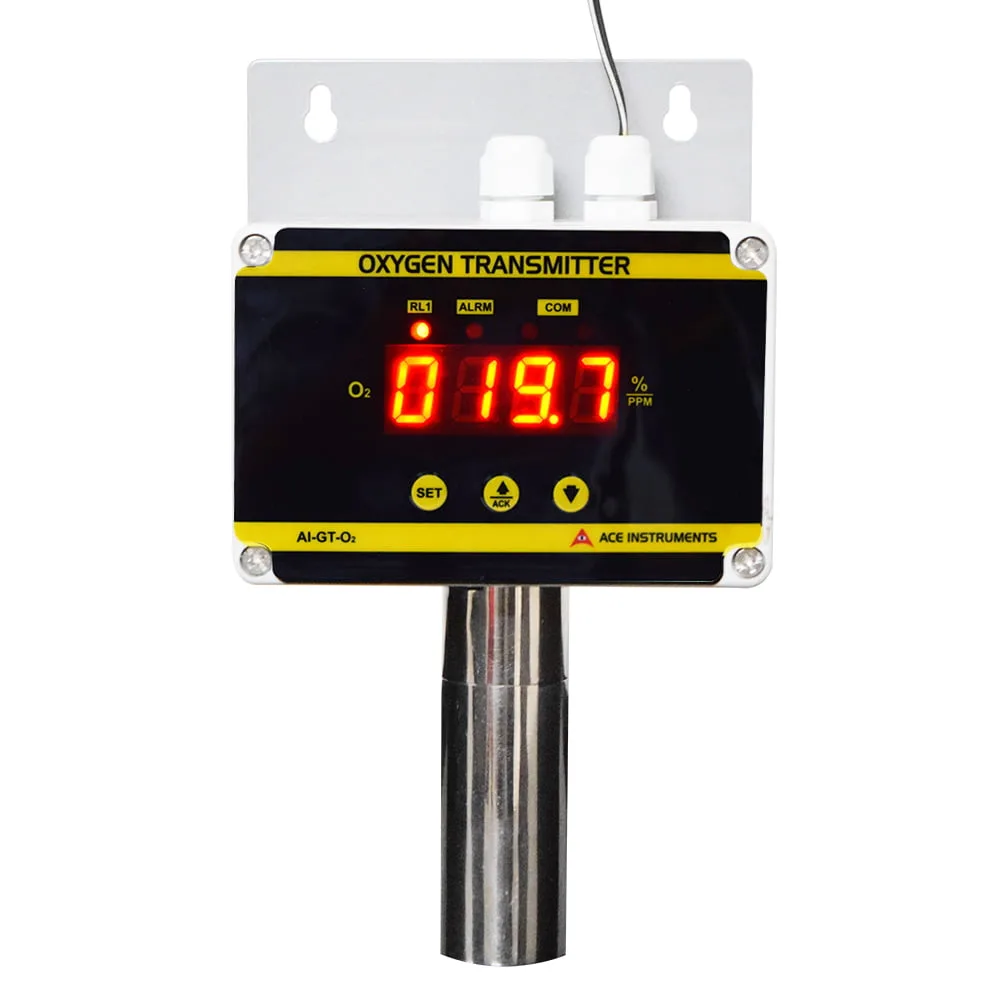

Ace Digital Oxygen Transmitter AI-O2-Tx is a high-performance Oxygen Analyzer for industrial and environmental applications. This advanced Dissolved Oxygen Analyzer delivers accurate oxygen measurements for process control and monitoring. It works as an Oxygen Level Monitor with a bright LED display for clear readings. The device also supports 4–20 mA output for easy integration with automation systems. As a reliable Oxygen Monitoring System, it provides continuous performance and helps maintain safe and efficient operating conditions.
Application: Fuel Tank Monitoring, Food, Beverage Packaging, Pharmaceutical, Bulk Drug manufacturing plants, Paper & Pulp Industry, Offshore Drilling and Processing Platforms, Fertilizers Plants, Coal Mines & Confined Areas etc.
ACE Digital Oxygen Transmitter AI-O2-Tx has an optional RS 485 Modbus Protocol Communication output to connect to PLC/SCADA/BMS software. The Digital Indicator standard feature also includes an in-built buzzer for process violation alerts.
| Manufacturer | Ace Instruments |
|---|---|
| Model No | AI-O₂-Tx |
| Select Oxygen Range | 0 to 100% Vol, 0 to 25% Vol |
| Target Gases | Oxygen (O2) |
| Accuracy | +/-1% of measuring range |
| Display | 4 Digit, 0.56” High, 7 Segment Red LED Display |
| Response Time | Approx. 15 seconds |
| Sensing Method | Galvanic Cell |
| Sensor Type | Galvanic Cell Type , quick response , no CO2 influence |
| Sensor life | Approx. 5 years, after which the Oxygen Cell is directly replaceable |

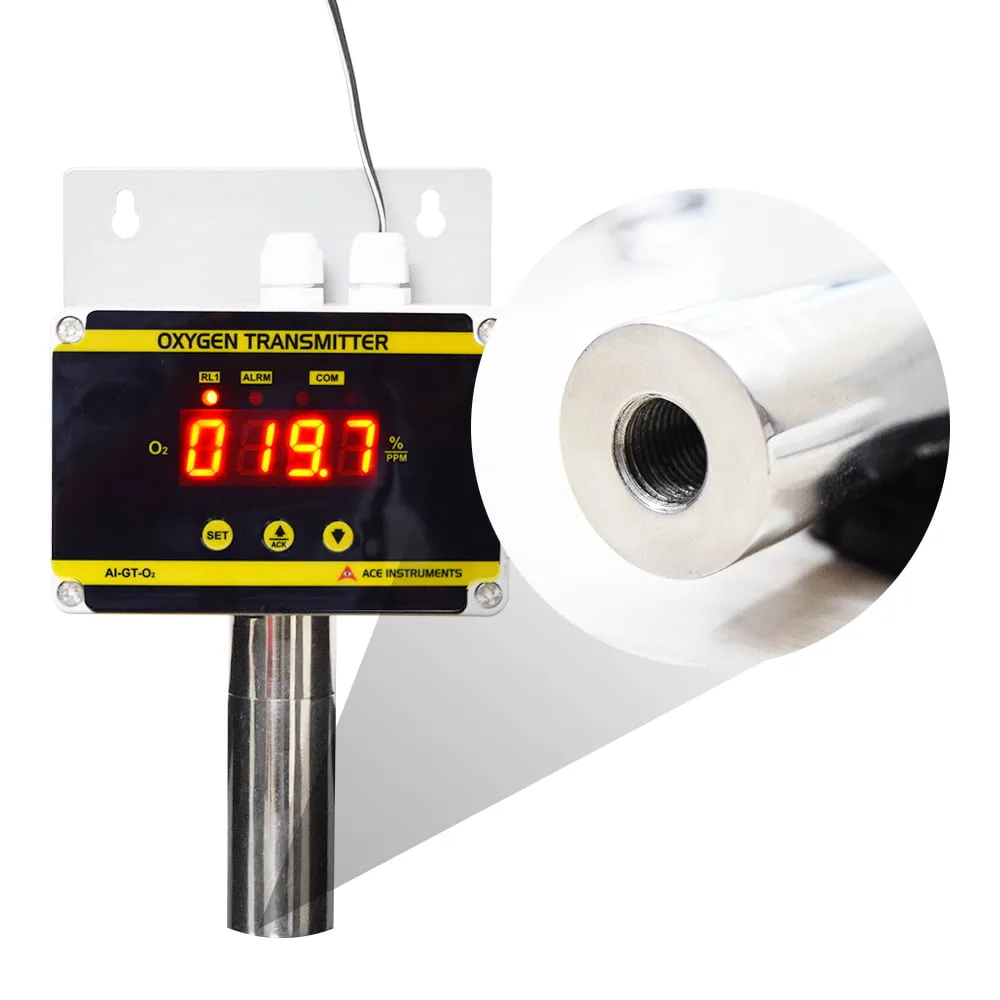

| Bar Probe Material | Stainless Steel 304 (Optional 1/4" BSP) |
| Buzzer | Built – in Buzzer Alarm for low & high limit violation alert |
| Enclosure | ABS Plastic IP 65 Rated ( However Sensor is not rated IP65) |

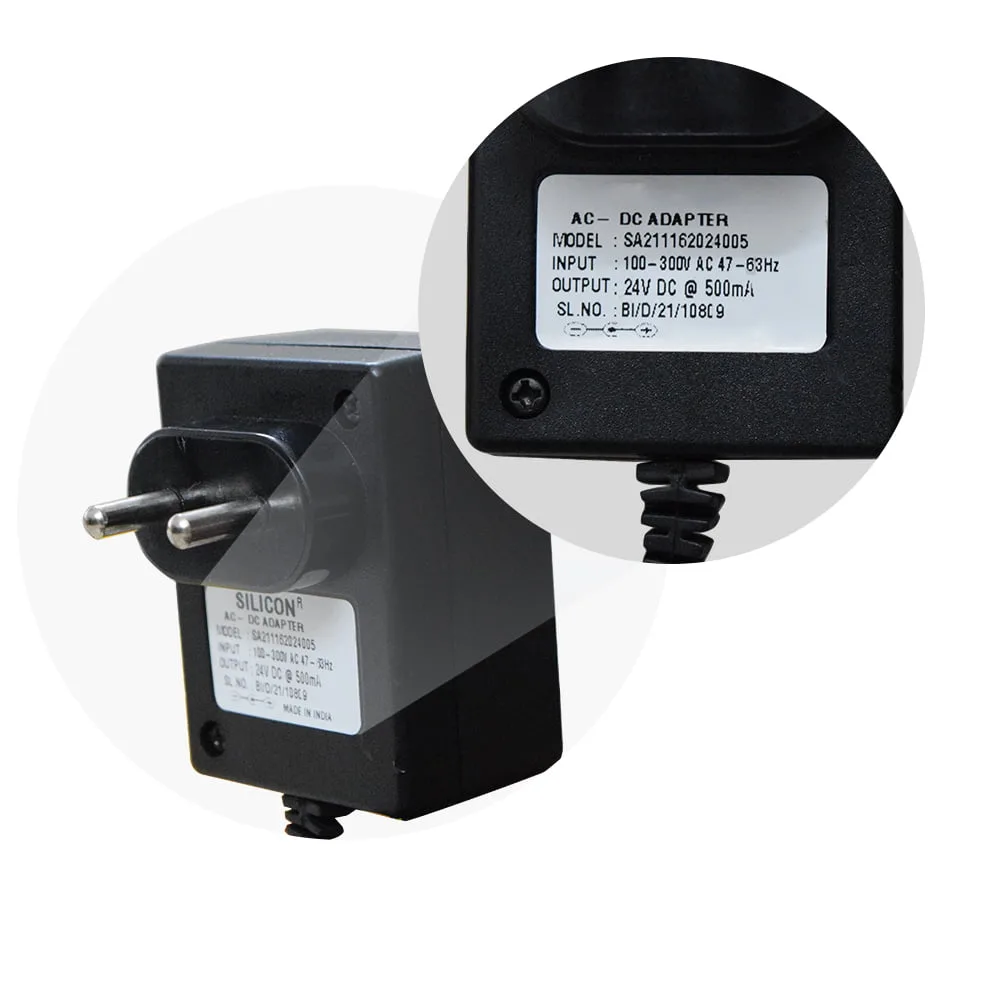

| Power Supply | 12-24VDC, by the way of 110-230 VAC, 50-60Hz Adaptor provided along with (Fits well in USA and European countries Also) |
| Customization Available | 1 Relay Output & a built in buzzer alarm, Optional: RS 485 Modbus Protocol Communication |
| Calibration | Will be provided at no extra cost. Traceable to national standards. |
| Supply Scope | 1 Unit of Oxygen Transmitter, Power Adapter, Instruction Manual and Factory Calibration Certificate |
| Warranty | 1 Year Manufacturing Warranty |
| Dimensions | 80 X 120 X 85 mm |
| Domain | Fire / Safety / Underwater, Mining / Refineries / Petro Chemicals, Pharmaceuticals |
| Weight | 600 Grams |
| Select Output Type | Standard 4-20mA, Standard 4-20mA + RS485 Communication, Standard 4-20mA + RS485 Communication + Relay |
| Weight | 1 kg |
| Dimensions | Array |
