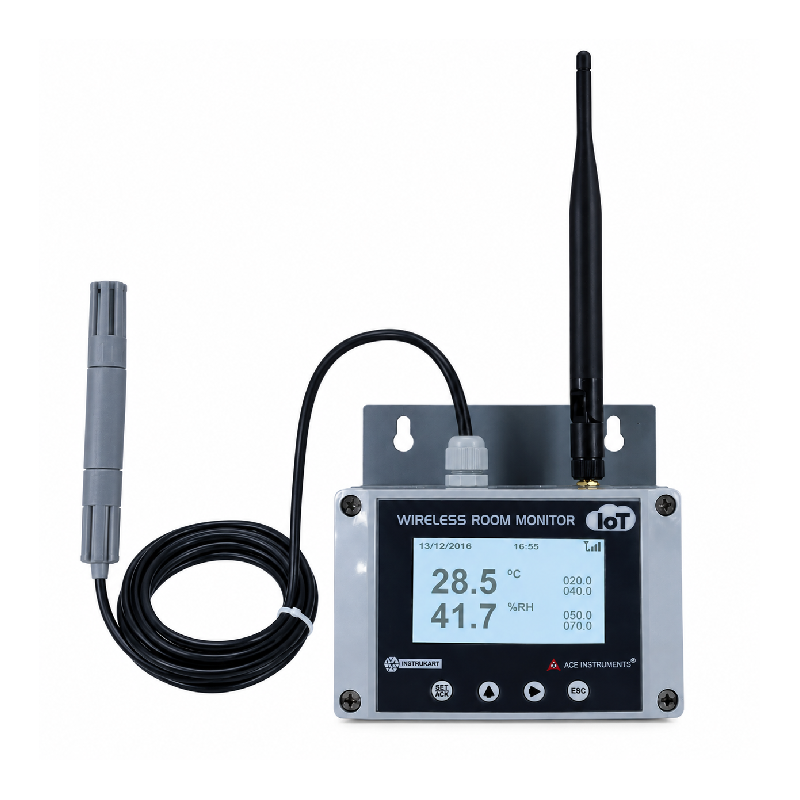

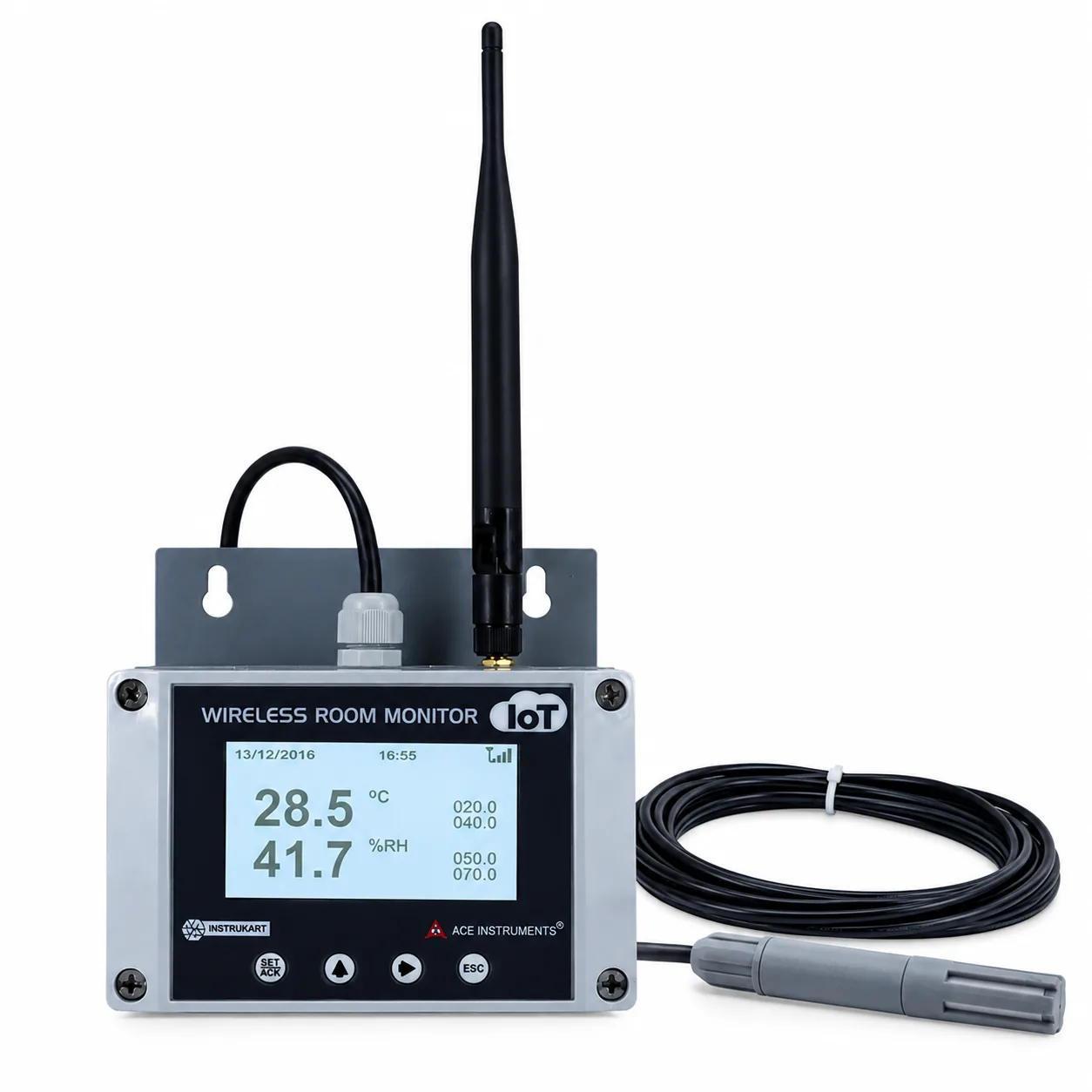

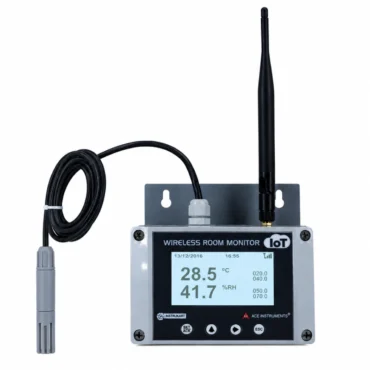

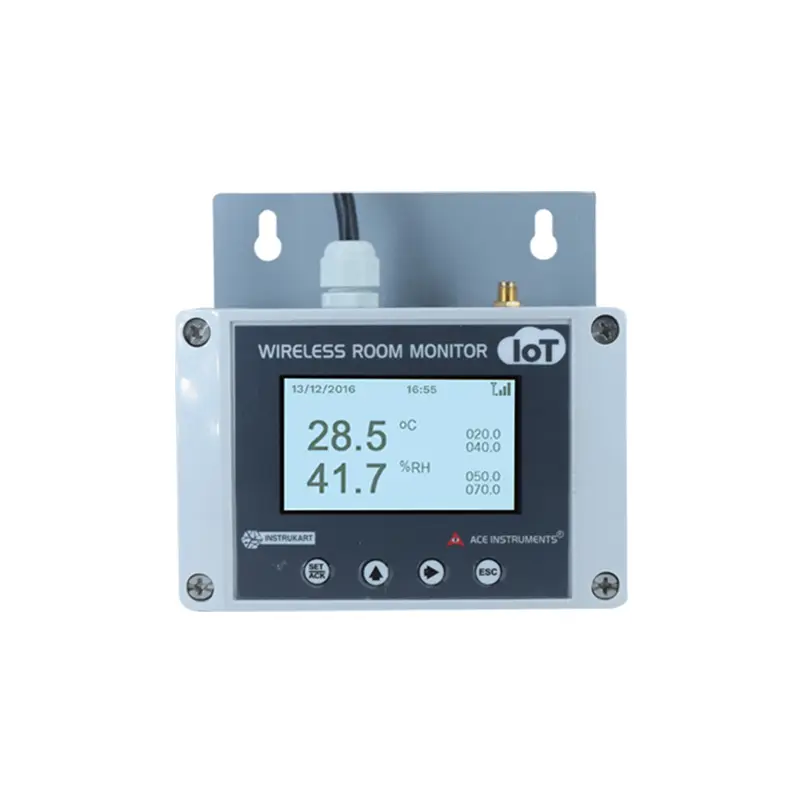

GSM Based Temperature and Humidity Monitor for Condense Environment is a reliable temperature and humidity monitor designed for accurate environmental tracking in critical applications. Functioning as an advanced temperature data logger, it provides real-time readings along with instant SMS and email alerts for quick response to fluctuations. Acting as a dependable humidity monitoring system, it ensures consistent oversight of conditions in cleanrooms, laboratories, and pharmaceutical facilities. Built for remote accessibility, this GSM-based device delivers accurate, continuous monitoring, helping facilities maintain compliance, safety, and stable environmental control at all times.
Applications: Food Dryer, Warehouses, Cold Storages, Seed Storage, Pharmaceuticals, Bio-Medical, Server Rooms, Datacenter, UPS rooms, Battery rooms, Cold Chains, Food, Logistics, Airports, Hospitals, Machinery Rooms, Ship-Building, etc.,

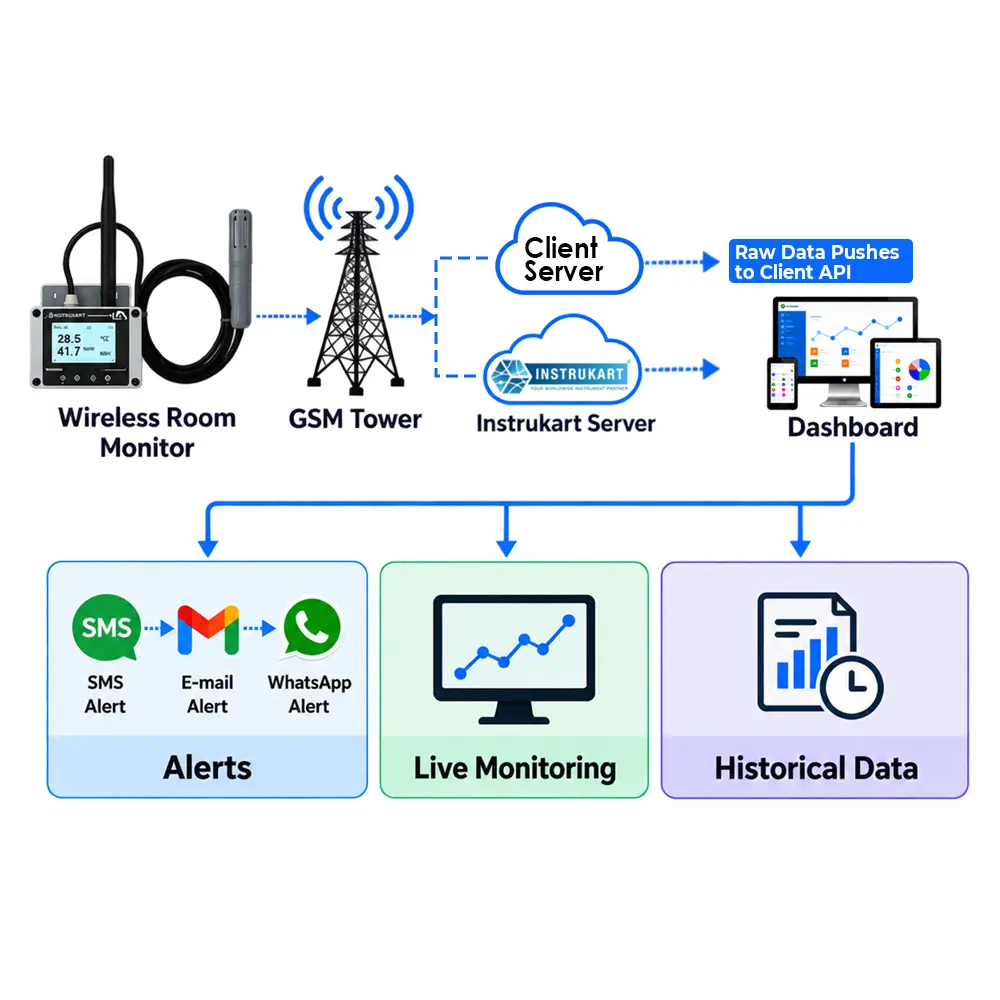

GSM Based Temperature and Humidity Monitor for Condense Environment is an advanced Temperature Monitoring System designed for unmanned and humidity-sensitive locations. Equipped with a high-precision Temperature and Humidity Sensor, it continuously measures environmental conditions and sends instant SMS, email, and alarm notifications when preset limits are exceeded. As a reliable Environmental Monitoring System, it provides real-time data, cloud dashboard access, graphical reports, historical logs, and secure user management to ensure accurate monitoring, regulatory compliance, and operational safety.
SMS Alert:
Note: Provision for registering up to 5 mobile numbers (Standard), Contact store for any other customization.

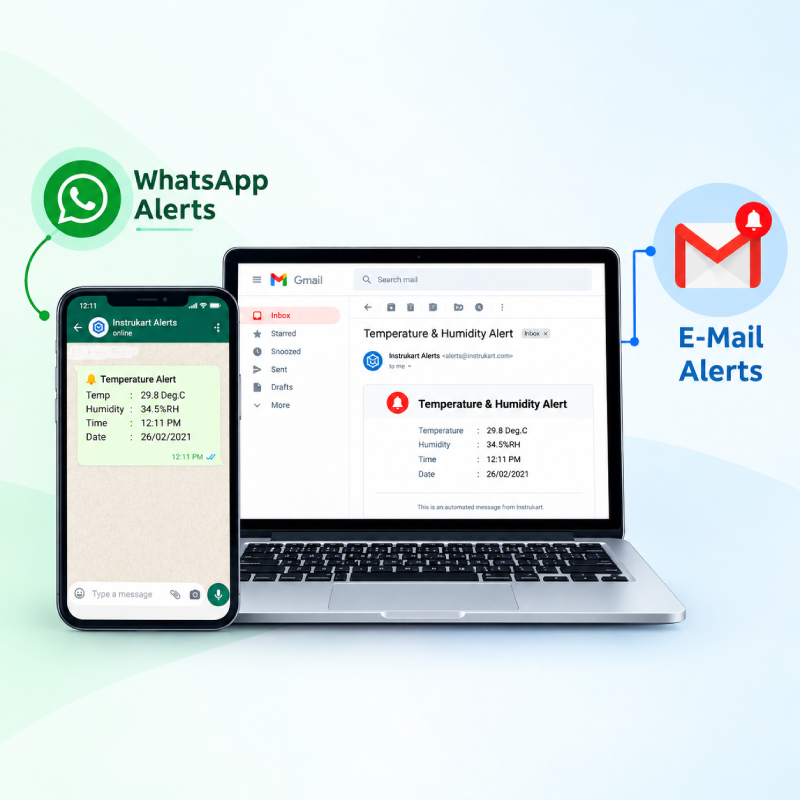

WhatsApp Alerts :
Note: The standard configuration supports up to 5 registered mobile numbers. Contact the store for customization options.
Email Alert :

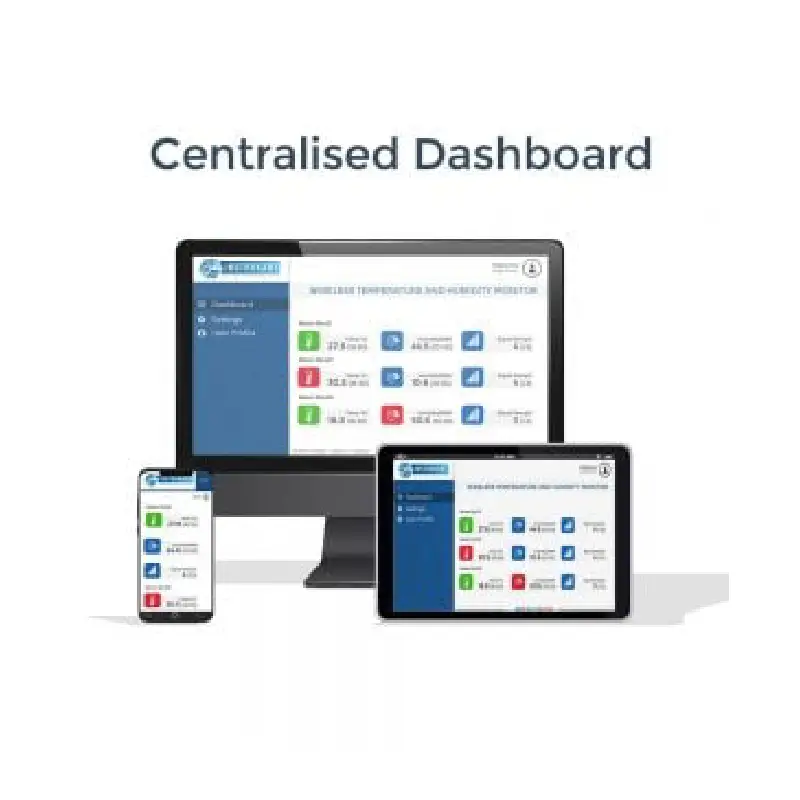

Cloud Function:
| Select Model | AI-RHTx-IoT1-1(With Hosting at Instrukart Server - 1Year Subscription), AI-RHTx-IOT1-2(With Hosting at Instrukart Server - Lifetime Subscription), AI-RHTx-IOT2(With Hosting at Client Server), AI-RHTx-SMS (SMS Only), IoT Service |
|---|---|
| Model 1 | AI-RHTx-SMS (SMS only) |
| Model 2 | AI-RHTx-IoT1-1 (with Hosting) Features: SMS + Email + WhatsApp + Cloud With Hosting: At Instrukart's Server |
| Model 3 | AI-RHTx-IoT1-2 (End User Hosting) Features: SMS + E-mail + Cloud at End User's Scope (Web space,Web Design & Database), Refer attached Instruction manual: IM_API_Integration_Guide_for_IoT_Ver1.0 |
| Measuring Parameters | Temperature and Relative Humidity |
| Temperature | -30ºC to +60ºC |
| Relative Humidity | 0 to 100% RH |
| Accuracy | ± 2% RH |
| Resolution | 0.1% RH |
| Display | 128 X 64 Dot Matrix Graphical Large LCD Display with White Backlight |
| Operating Temperature | -30ºC to +60ºC |
| Cable Length | Connecting Cable , pre-wired 3 meters. Extension between display monitor & sensor. |
| Buzzer | Standard In-Built Buzzer for Alarm. External Buzzer Option also available. |
| Additional Cable Length | Available at extra cost, maximum feasibility upto 10 mtrs (Sensor to Display Unit)- Contact Store |
| Alarm Type | In built buzzer for Low & High Limit upon temperature & humidity set point violation, Approx. 50 Decibel |
| Alarm Limit | User Configurable, Freely programmable from 4 front keypad |
| Acknowledgement Key | Provided for user to acknowledge the alarm manually, thus avoiding continuous buzzer alarm sound & user attention. |

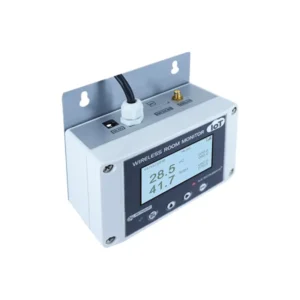

| Enclosure | Wall mounting type ABS Plastic Enclosure with Wall Bracket ( IP 65 splash proof ). |
| Domain | Cold Chain / Warehouse / Greenhouse |
| Weight & Dimension | 850 gm and 120 X 80 X 69 mm |
| Power Supply | 12 VDC Input with minimum of 2 Amp current rating. Adaptor provided alongwith. |
| Supply Scope | One unit of Temperature and Humidity monitor, 12 VDC Power Adapter, Instruction Manual and Factory Calibration Certificate. |
| Warranty | 1 year manufacturing warranty under manufacuring defects only |
| Manufacturer | Ace Instruments |
| Dimensions | Array |
