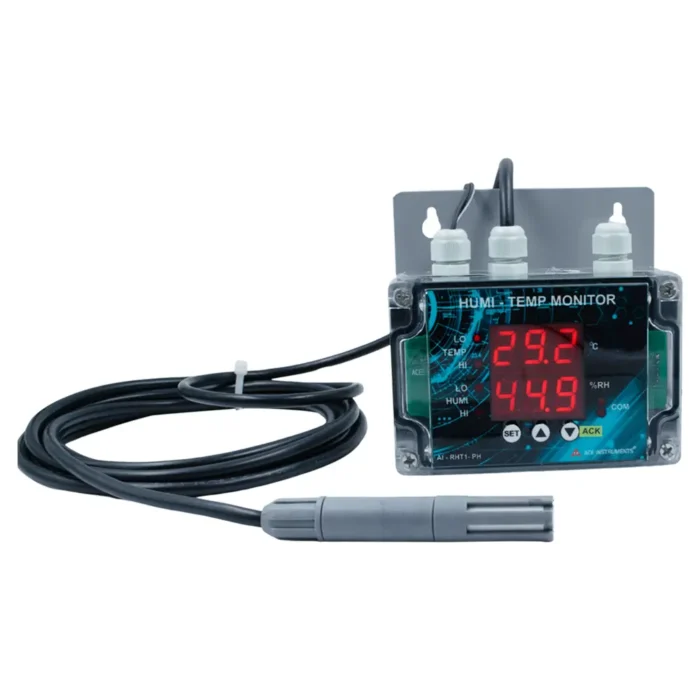

Temperature & Humidity Monitor with External Sensor Ace AI-RHT1-PH is a reliable Temperature and Humidity Monitor for continuous temperature and humidity measurement. This Temperature Humidity Meter features a clear dual-line LED display, programmable alarms, RS485 Modbus, and optional 4–20mA outputs, making it an ideal Digital Humidity Monitor, Environmental Monitoring Instrument, and Temperature Measurement Instrument.
Application: Server Rooms, Data Centers, IT Infrastructure Facilities, Storage Rooms, UPS Rooms, Battery Rooms, Hospitals, Blood Banks, Warehouses, Greenhouses, Horticulture Facilities, and other temperature- and humidity-sensitive environments.
Temperature and Humidity Monitor is a simple and dependable monitoring device designed to help users keep track of Temperature and Humidity in important areas having 3m external sensor cable with high sensing probe. It clearly shows both readings on a bright display and provides an audible warning when the conditions move beyond the desired levels. Its easy-to-use design makes it suitable for continuous monitoring where maintaining suitable environmental conditions is important.
| Model No | AI-RHT1-PH |
|---|---|
| Measuring Parameters | Relative Humidity, Temperature |
| Temperature | 0 to 50 ℃ |
| Temperature Accuracy | ±0.3 °C |
| Temperature Resolution | 0.1°C |
| Humidity | 0.0 - 100.0% R.H (Non Condensing) |
| Humidity Accuracy | ± 1.0 % RH |
| Humidity Resolution | 0.1% RH |
| Sensor Cable Length | Pre-wired 3 mtrs, extension of cable length and inbuilt sensor is available, contact store |
| Communication | Standard RS485 MODBUS Output |
| Analog Output | Optional Two Wire 4-20mA output |
| Display | 4 Digits for Temperature , 0.8°C” Height , Red LED Display ; 4 Digits for Humidity (%R.H.) , 0.8°C” Height , Red LED Display |
| Mounting | Wall mounting type with Wall Bracket |
| Enclosure | ABS Plastic Enclosure |
| Protection class | IP-65 |
| Acknowledgement Key | Provided for user to acknowledge the alarm manually, thus avoiding continuous buzzer alarm sound & user attention |
| External Alarm (Optional) | Available at extra cost (Length between Instrument and buzzer) |
| Alarm Limit | User Configurable, Freely programmable from 4 front keypad |
| Weight | 470g |
| Dimensions | 120 X 80 X 60 mm |
| Power Supply | Universal 110–230 VAC, 50/60 Hz to 24 VDC Power Adapter with Region-Specific Power Plug (US,UK,UAE,EU) |
| Supply Scope | 1 Unit of Temperature and Humidity Monitor, Power Adapter with region specific plug, Instruction Manual, and Factory Calibration Certificate |
| Calibration Certificate | Provided at no extra cost, traceable to national/international standards, and valid for 1 year |
| Warranty | 12-Month Warranty Against Manufacturing Defects |
| Manufacturer | Ace Instruments |
| Weight | 0.7 kg |
| Dimensions | Array |
| SKU / Model | S-0091 |
