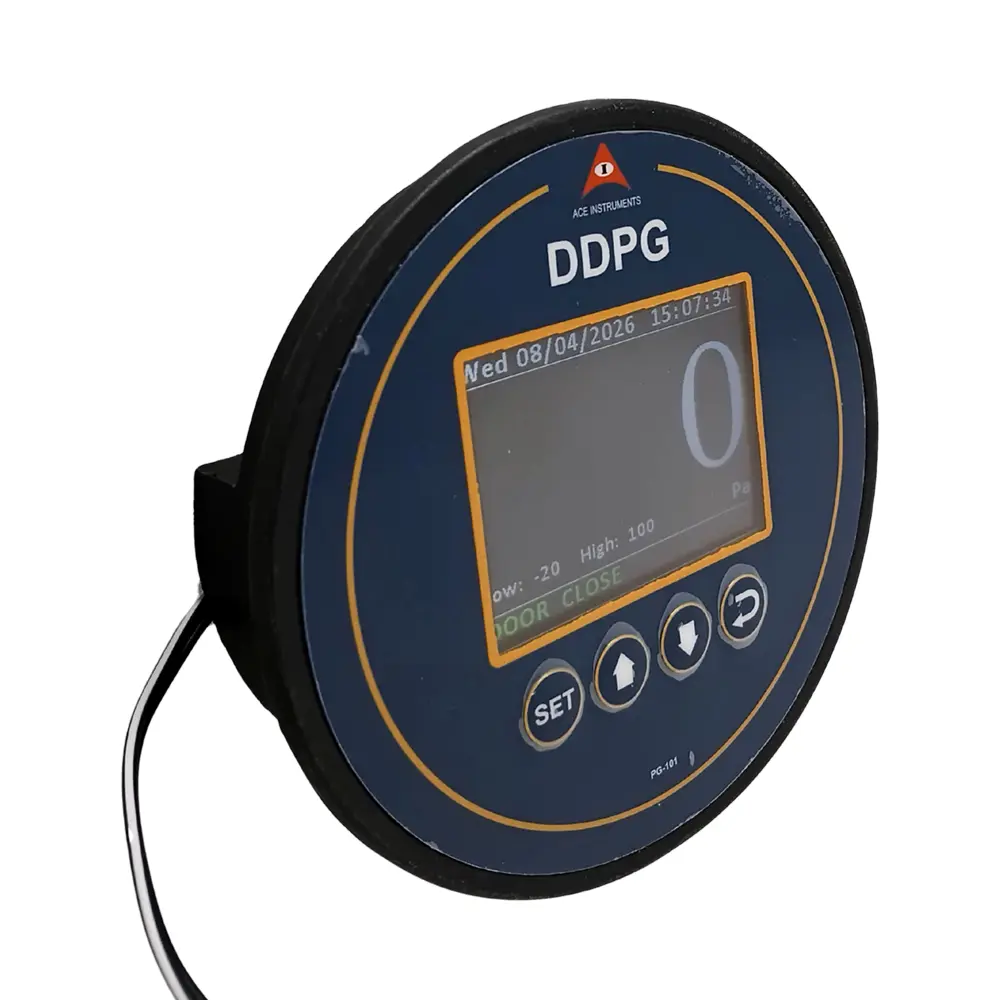

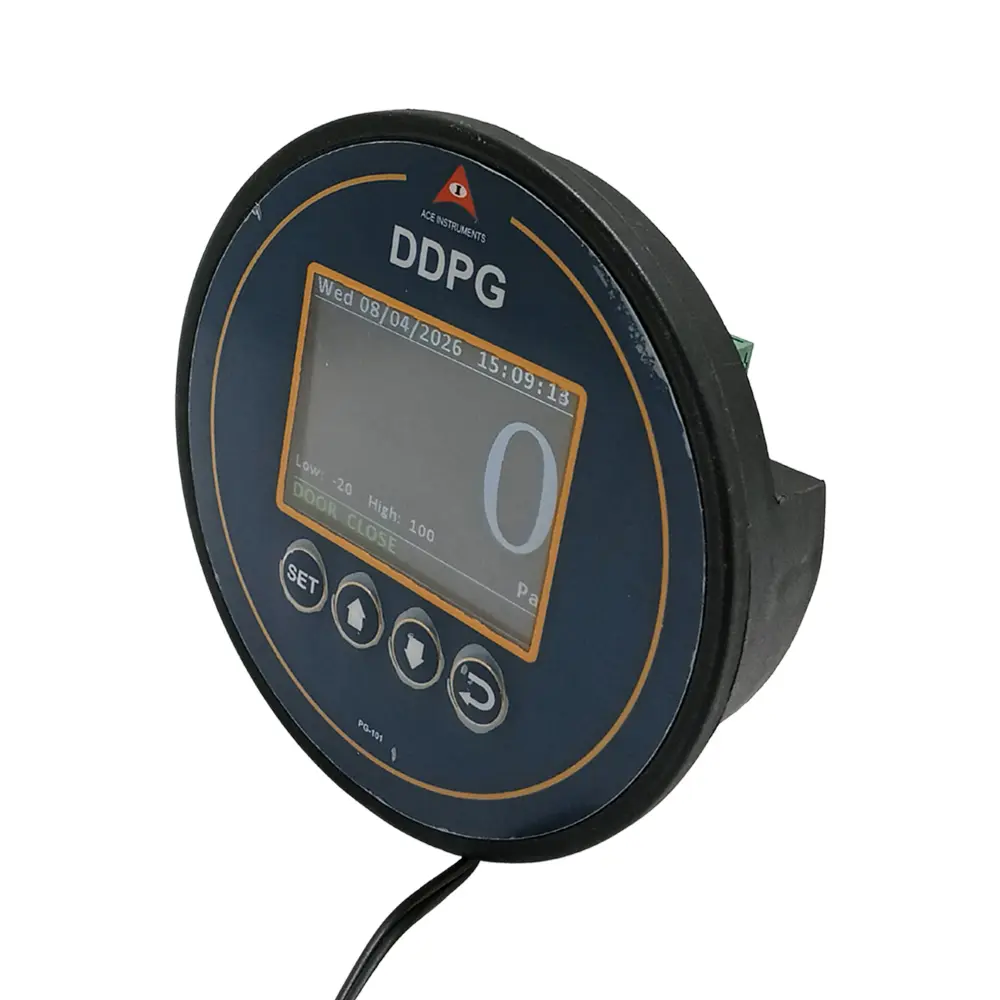

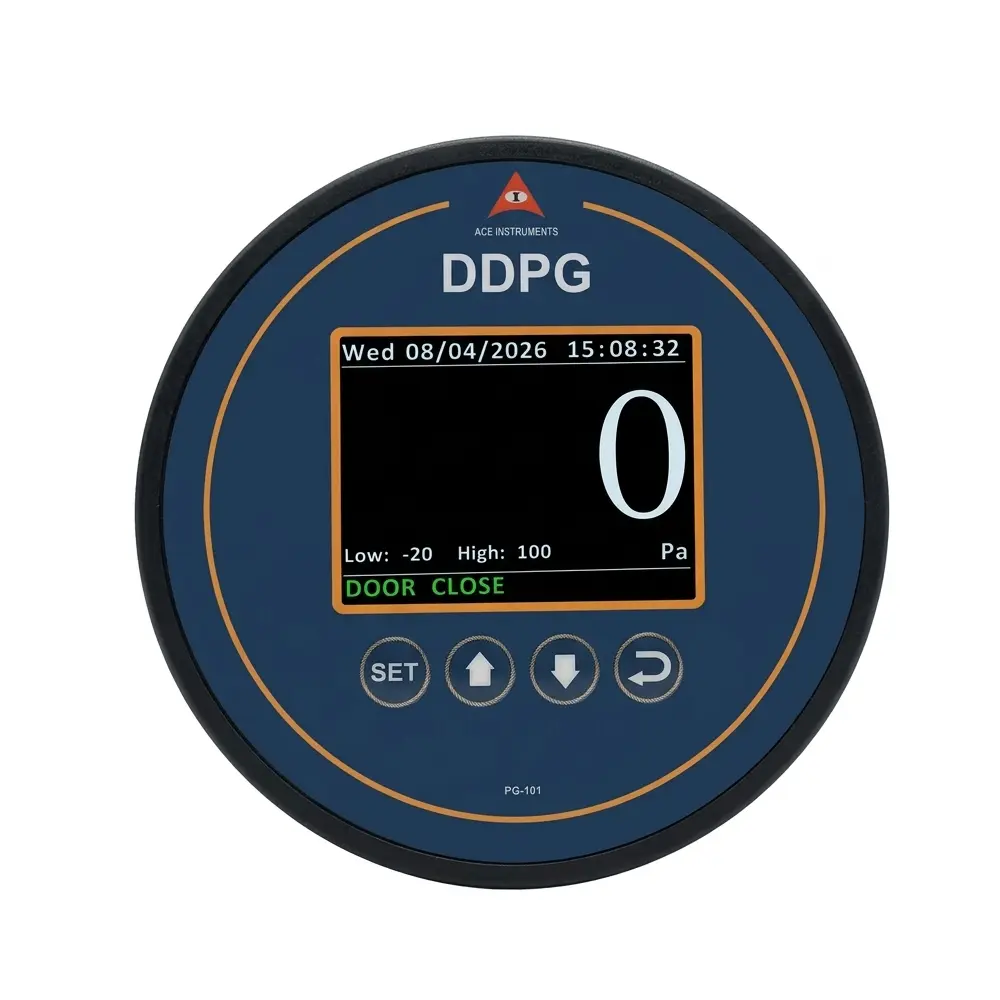

Digital Differential Pressure Gauge Ace AI-DDPG-TFT features a clear TFT screen designed for process control environments where monitoring differential pressure is crucial. This advanced differential pressure gauge includes a built-in buzzer alarm for instant alerts on setpoint violations, ensuring safe and stable operation. With Modbus RS-485 communication, it integrates easily with BMS, PLC, and SCADA systems for reliable performance. As a dependable pressure monitoring system, it continuously tracks and displays pressure levels, ensuring safe, stable environmental conditions and efficient facility control.
Application: Laminar Air Flow Cabinets, Biosafety Cabinets, AHU, Clean Rooms, Laminar Air Flow Cabinets, Hospitals, ICU, etc.
Ace Digital differential pressure gauge with a TFT screen is a digital readout monitor designed to measure room pressure in pharmaceutical clean rooms, isolation rooms, and hospital operating theaters. This negative differential pressure gauge offers an accuracy of 0.5% on the full scale and can continuously transmit data Room pressure measurement helps monitor and control air pressure differences between spaces to maintain cleanliness and safety.
| Model No | AI-DDPG |
|---|---|
| Measuring Parameters | Differential Pressure |
| Select Pressure Range | -10.0 to +10.0 mm.w.c / -100 to +100 Pascals, -50.0 to 50.0 mm.w.c/-500 to +500 pascals, 0.0 to 10.0 mm.w.c / 0 to 100 Pascals, 0.0 to 100.0 mm.w.c / 0 to 1000 Pascals, 0.0 to 25.0 mm.w.c / 0 to 250 Pascals, 0.0 to 50.0 mm.w.c / 0 to 500 Pascals |
| Options | Standard, WITH 4-20 mA O/P, WITH 4-20 mA O/P & RS485 COM |
| Range | All Ranges are avaliable, Please select from drop down mentioned above |
| Accuracy | +/-0.5% of Full Scale |
| Resolution_1 | 1 Pascal (Pa) / 0.1 mmWC ) / inWC |
| Display | Integrated 4 Digit Red LED 7 Segment Display 0.5” |
| Size | Standard 4 ½'' (114.3mm.) Diameter, Depth : 30 mm. Can be easily replace with magnaheic® |
| Maximum Over Pressure | 2 Times the rated pressure |
| Sensors | integrated Piezoresistive high speed differential pressure sensor |
| Communication | with 4-20mA & RS485 COM, with 4-20mA O/P |
| Medium | Air or Gases ( Non Corrosive ) |

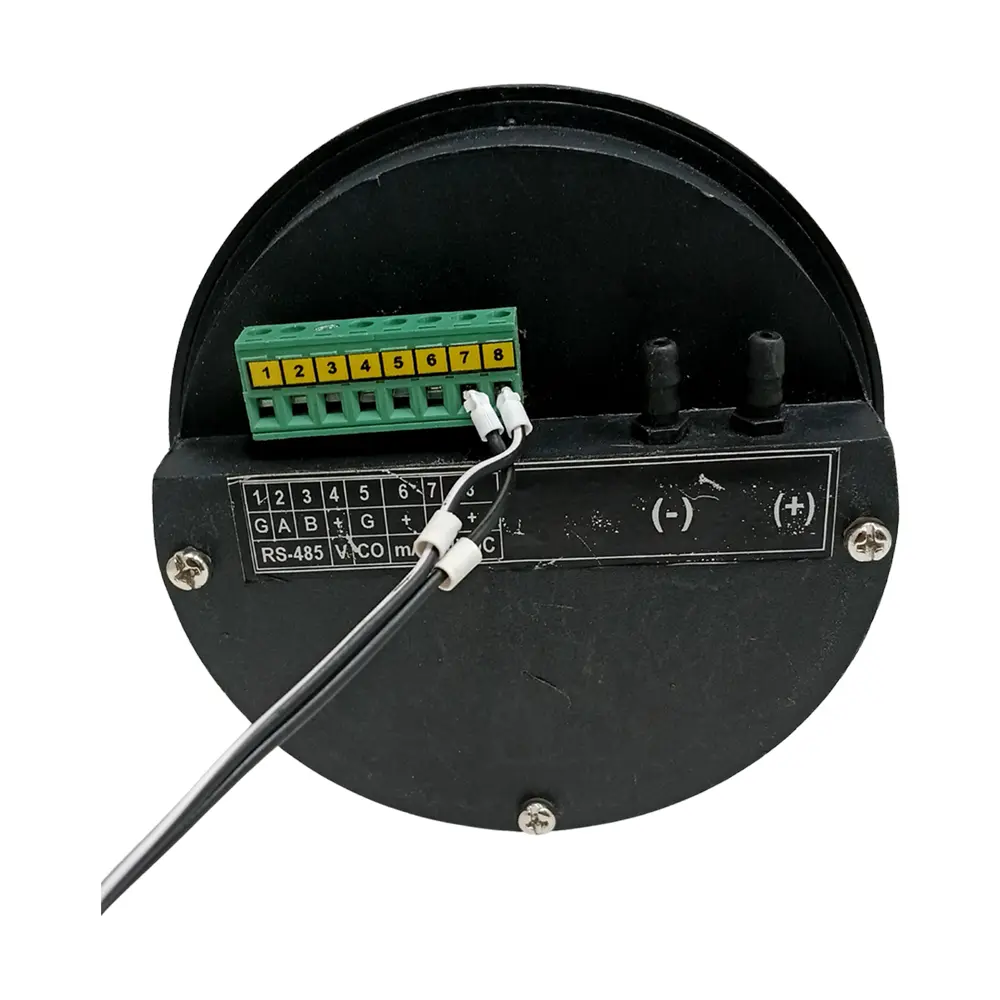

| Connection | 2 Nos. Hose Nipples of 4mm. ABS Plastic at the back |
| Alarm Type | Built in Buzzer Alarm for Process Violation Alert |
| Construction | Matte Finish ABS Plastic Enclosure |
| Power Supply | 12-24VDC, by the way of 110-230 VAC, 50-60Hz Adaptor provided along with (Fits well in USA and European countries Also) |
| Optional Accessory | Grouting Box |
| Optional Accessories | With Out Wall Mounting Box, with Wall Mounting Box |
| Domain | Clean Rooms, Hospital Operation Theatres, HVAC, Industries / Automobiles / Paint Booth, Pharmaceuticals |
| Weight | 180 Grams |
| Dimensions | 4½″ (114.3 mm) dial diameter × 30 mm depth. |

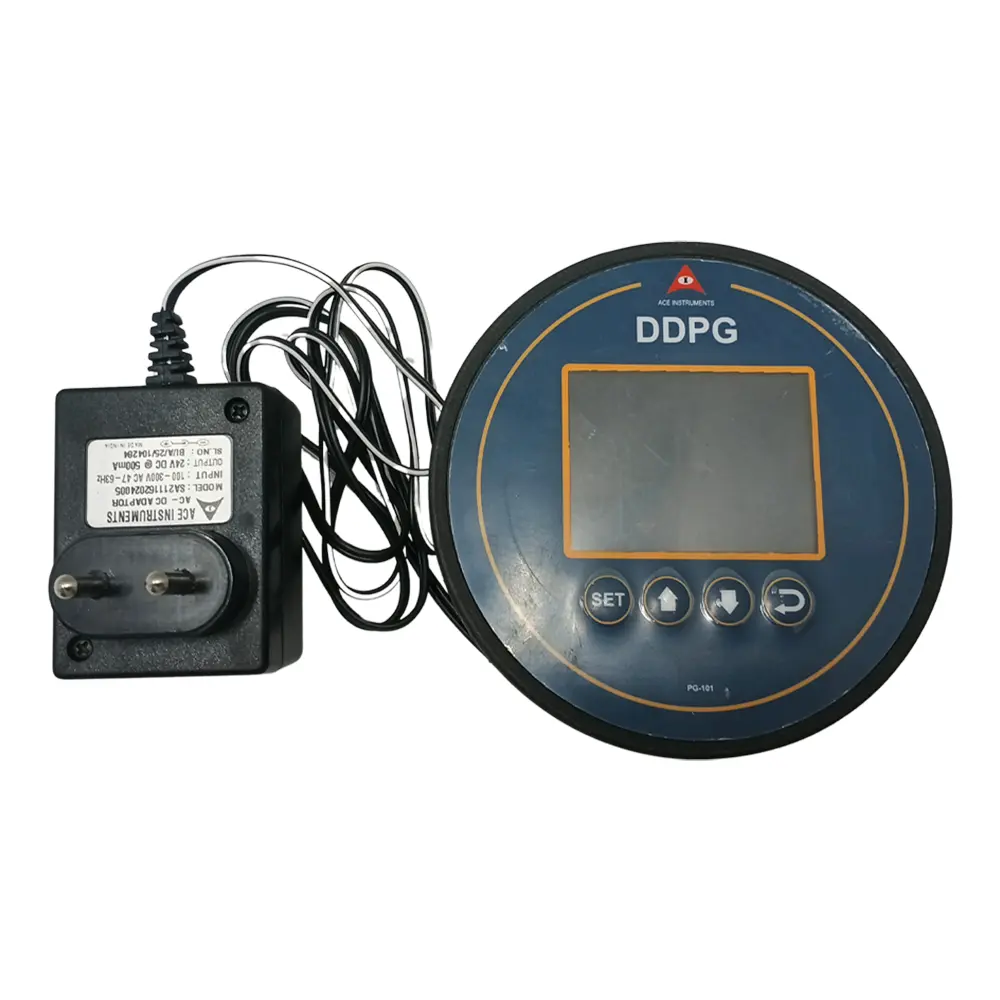

| Supply Scope | 1 unit of DDPG, 12-24VDC Adapter, Silicon tube, Mounting screws, Instruction manual, Calibration certificate |
| Warranty | 1 Year Manufacturer Warranty |
| Manufacturer | Ace Instruments |
