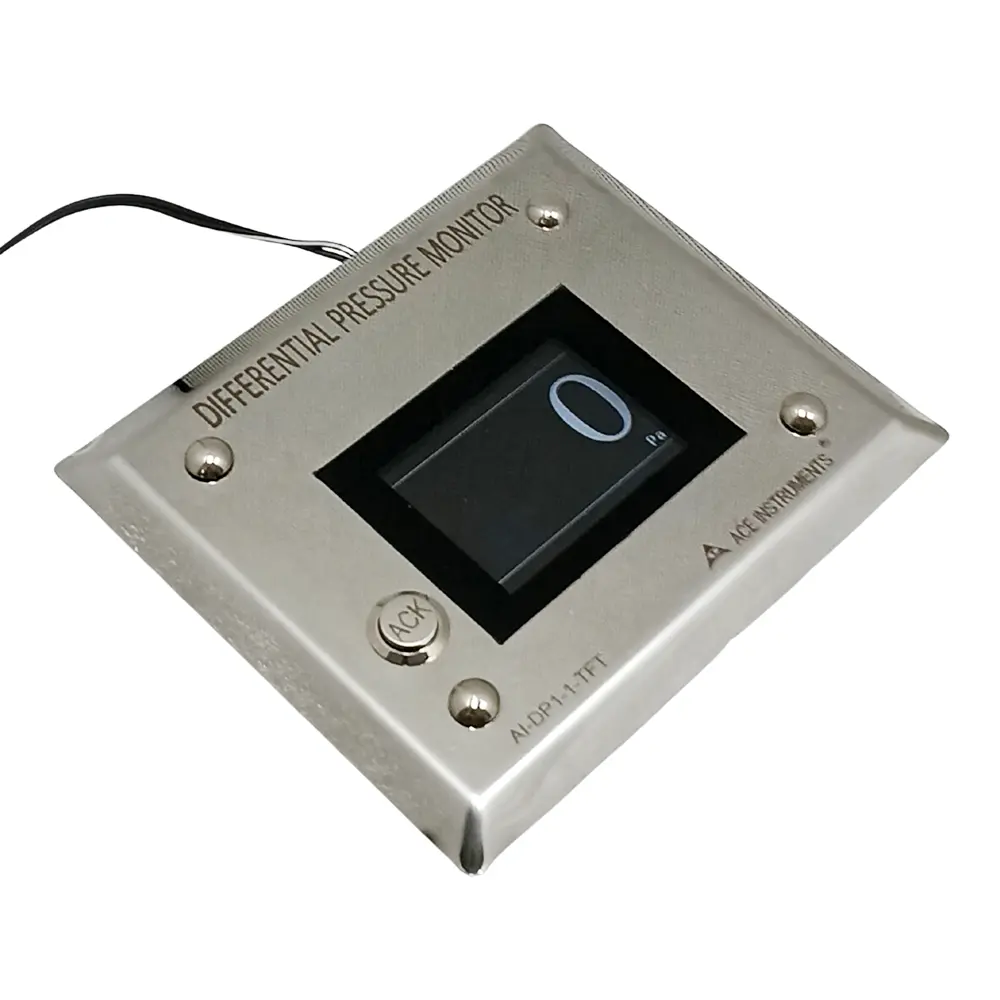

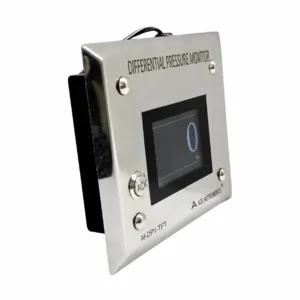

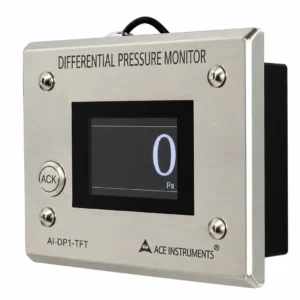

Digital Differential Pressure Monitor AI-DP1-TFT is a high-accuracy monitoring solution for cleanrooms and controlled environments. It provides precise differential pressure measurement with real-time monitoring and displays the current date and time on its digital screen. This advanced Air Pressure Sensor features a built-in buzzer alarm with an acknowledgment function and supports easy wall mounting for modular cleanrooms. Designed as a reliable Differential Pressure Transmitter, it supports RS-485 Modbus communication for seamless integration with BMS, SCADA, and PLC systems.
Application: Infection Rooms, Isolation Rooms, Laminar Air Flow Cabinets, HVAC, Bio Safety Cabinets, AHUs, and numerous others, Hospital Operation Theatre (OT) rooms, Pharmaceutical Clean Rooms ect..
Digital Differential Pressure Monitor AI-DP1-TFT is a high-quality device made to measure the pressure difference between two points with great accuracy. It uses a Differential Pressure Indicator high-precision sensor to give clear and reliable readings every time.It also comes with a built-in alarm that Negative Pressure Monitor alerts you right away if the pressure goes outside the safe range. This helps keep your systems running smoothly and safely.
| Model No | AI-DP1-TFT |
|---|---|
| Measuring Range | -100 to + 100 Pascal ( In Built Sensor ) Any other range as per requirement, Contact Store |
| Accuracy | +/- 0.5% F.S. |
| Sensors | Inbuilt Differential Pressure sensor |

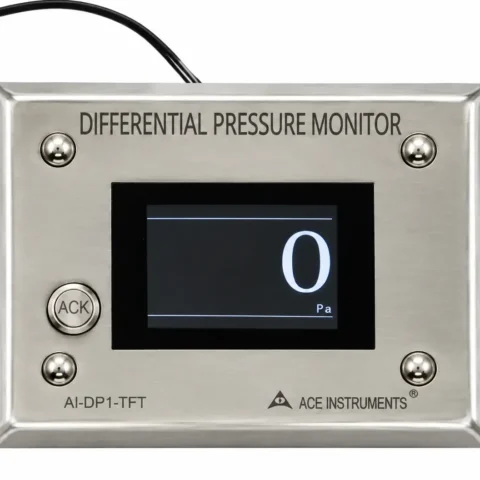

| Display | Single row 3 Height TFT Color Screen Display |
| Alarm | Built In High & Low Buzzer Alarm for Process Set Parameter Violation with touch Acknowledgement |
| Enclosure | Modular Wall/Brick Wall Mountable M.S. Back Box with Stainless Steel Front Flush Plate. |
| Real Time Clock | Optional real time clock (RTC) with HH:MM:SS |
| Output | 4-20mA Output (Please select above dropdown) |
| Communication | (Please select above dropdown), Isolated RS485 Modbus Protocol (optional) |

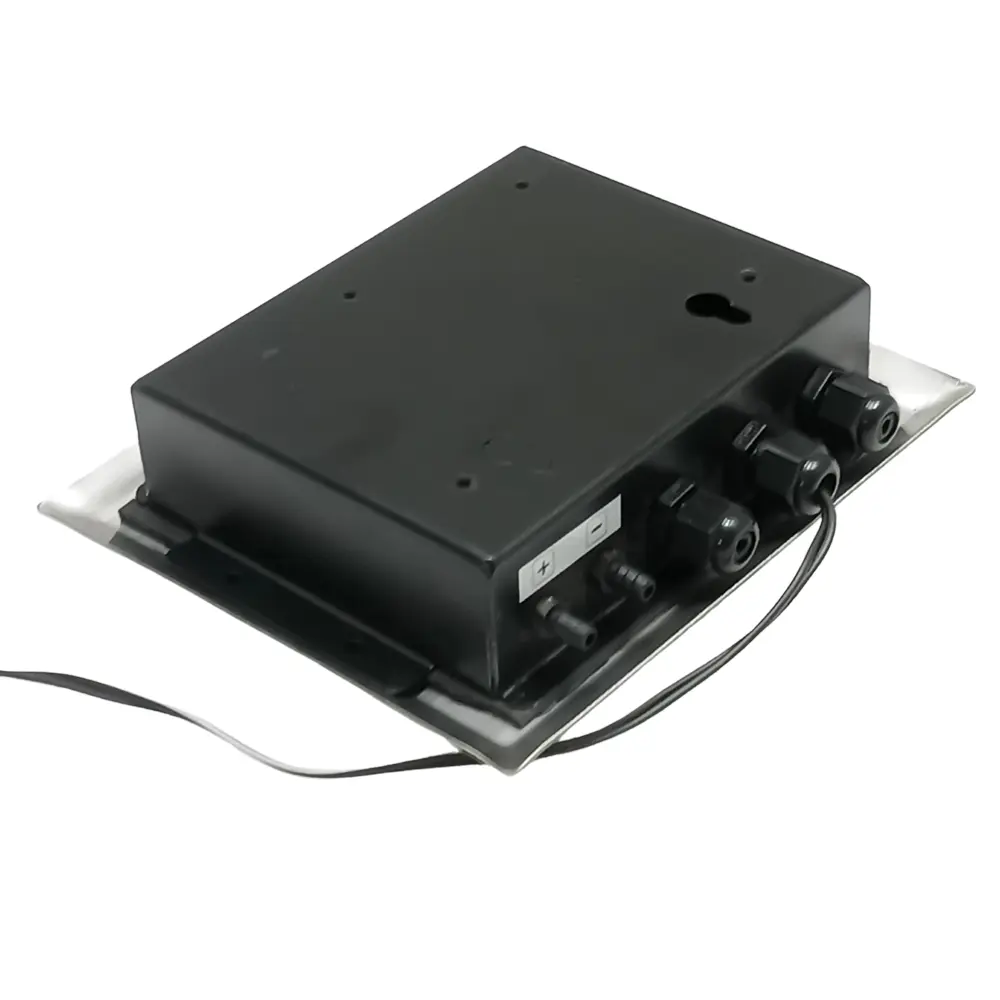

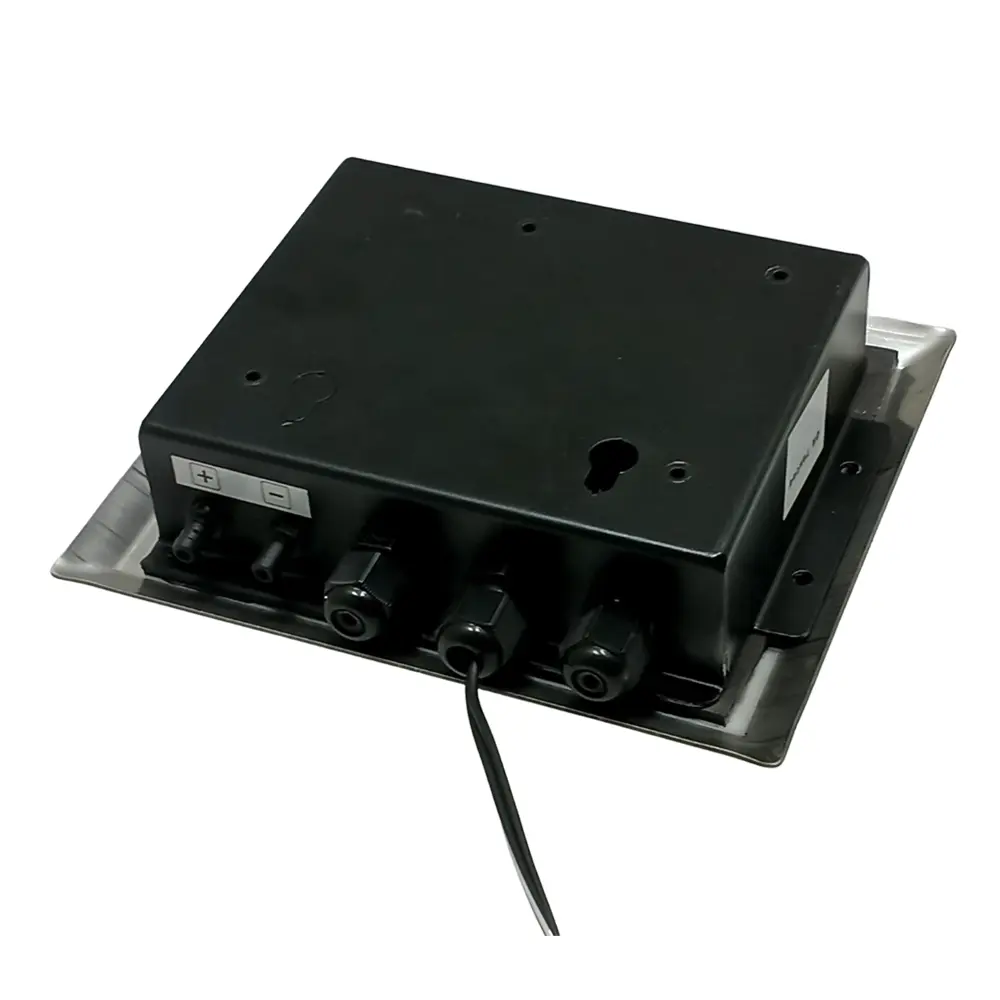

| Connection | 2 Nos. Hose Nipples of 4mm. Stainless Steel at the Back |
| Power Supply | 12-24VDC, by the way of 110 VAC to 230 VAC, 50Hz to 60Hz Adaptor provided along with (Fits well in USA and European countries) |
| Calibration | Will be provided at no extra cost valid for 1 year traceable to Electronic Test & Development centre. |
| Supply Scope | 1 unit of TFT Display Diff. Pressure Monitor, 12-24VDC Adapter, Silicon tube,Mounting screws, Instruction manual, Calibration certificate |
| Dimension | Front SS Plate : 135(W) x 160(H) (Approx., May Change depending on Inputs & Config) Back MS box : 105 (W)x 100 (H)x 40 (D)mm. |
| Select Output Type | 4-20mA Analog Output, RS485 MODBUS |
| Manufacturer | Ace Instruments |
