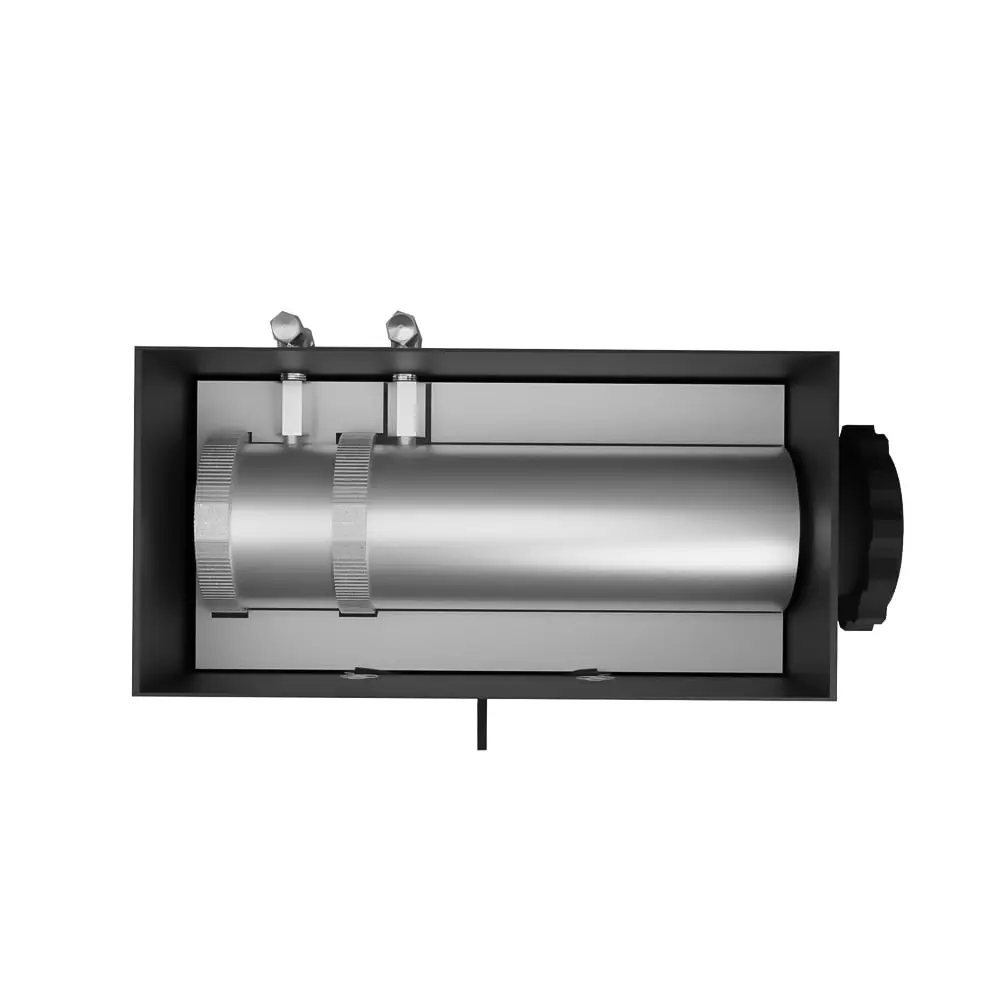

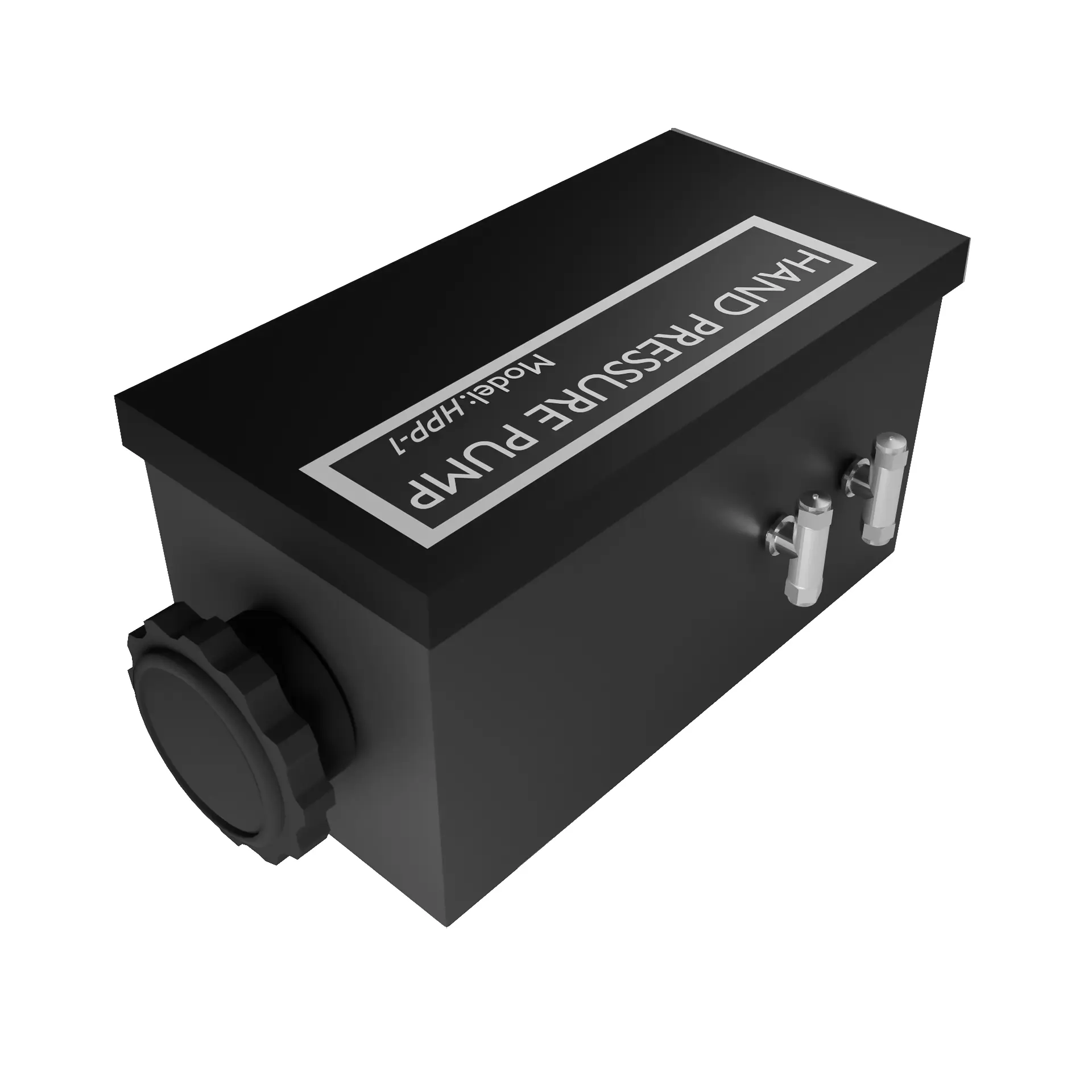

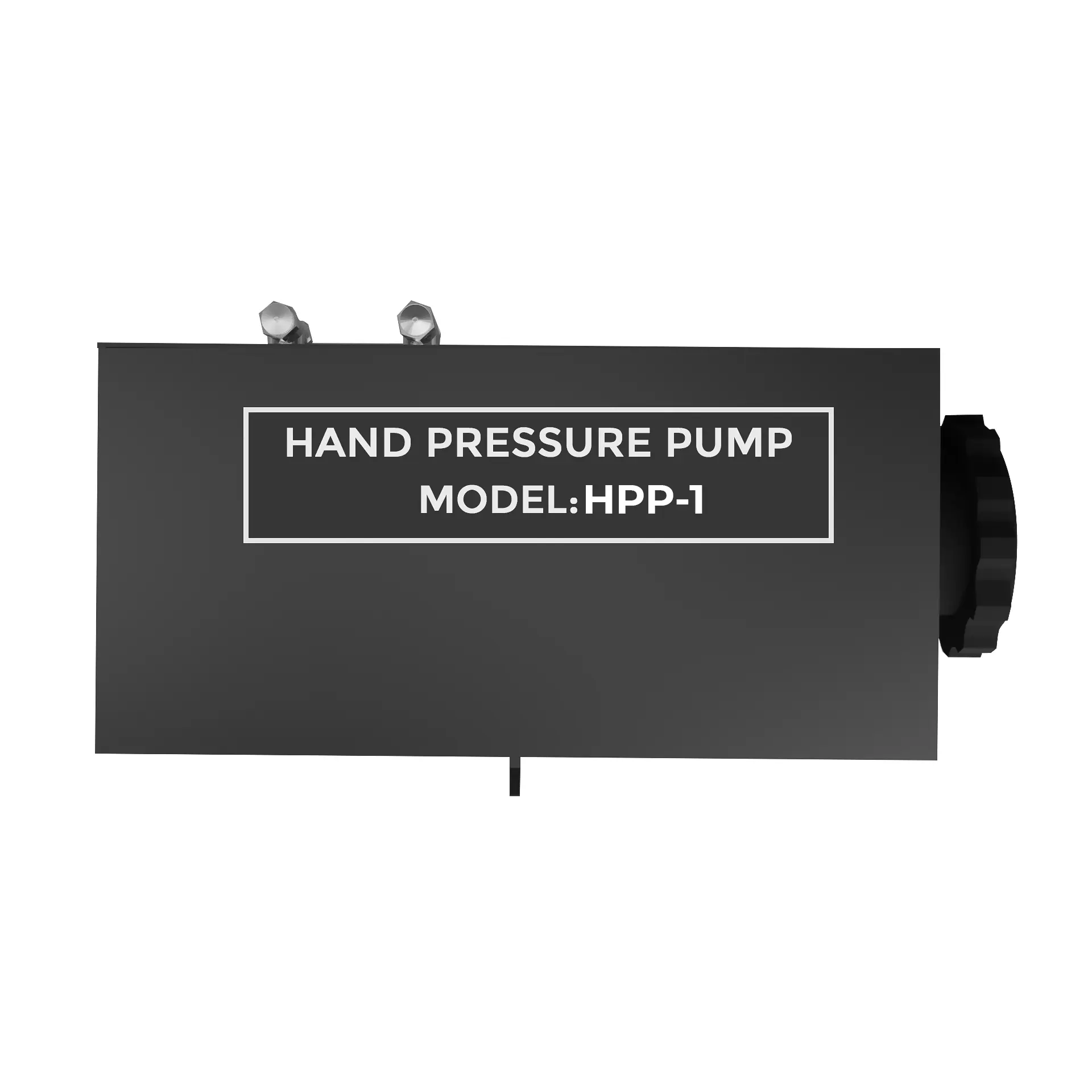

Magnehelic Gauge Calibrator Ace IK-HPP-01 is a high-performance Pressure Gauge Calibrator designed for accurate testing and adjustment of pressure instruments. This Pressure Transmitter Calibrator features a hand-operated pneumatic system with a static pressure screw pump for fine pressure control. Ideal for Differential Pressure Gauge Calibration, it provides reliable results with dual ports for master and test devices. Used as a Pressure Test Pump, it is suitable for calibrating analog and digital gauges, indicators, and transmitters across industrial and process applications.
Applications: HVAC system calibration, airflow and duct pressure measurement, cleanroom pressure validation, air filter pressure drop testing, room pressure monitoring calibration, differential pressure gauge calibration etc.
Magnehelic® Gauge Calibrator Ace IK-HPP-01 is a perfect source for the HVAC engineer & calibration laboratories carrying out high-precision calibration for differential pressure parameters. The Magnehelic Calibrator is a lightweight pneumatic pump used to generate air pressure for the calibration of Analog Magnehelic Gauges, Differential Pressure Transmitters, Differential Pressure Indicators, Low-Pressure Switches and low-pressure Instruments. The Pressure and Vacuum Gauge Calibrator is capable of generating up to 1 Bar (approx. 10,000 mm.W.C.) Pressure & up to 400 mm. Hg.
| Model | IK-HPP-01 |
|---|---|
| Pump | Static Pressure Pump |

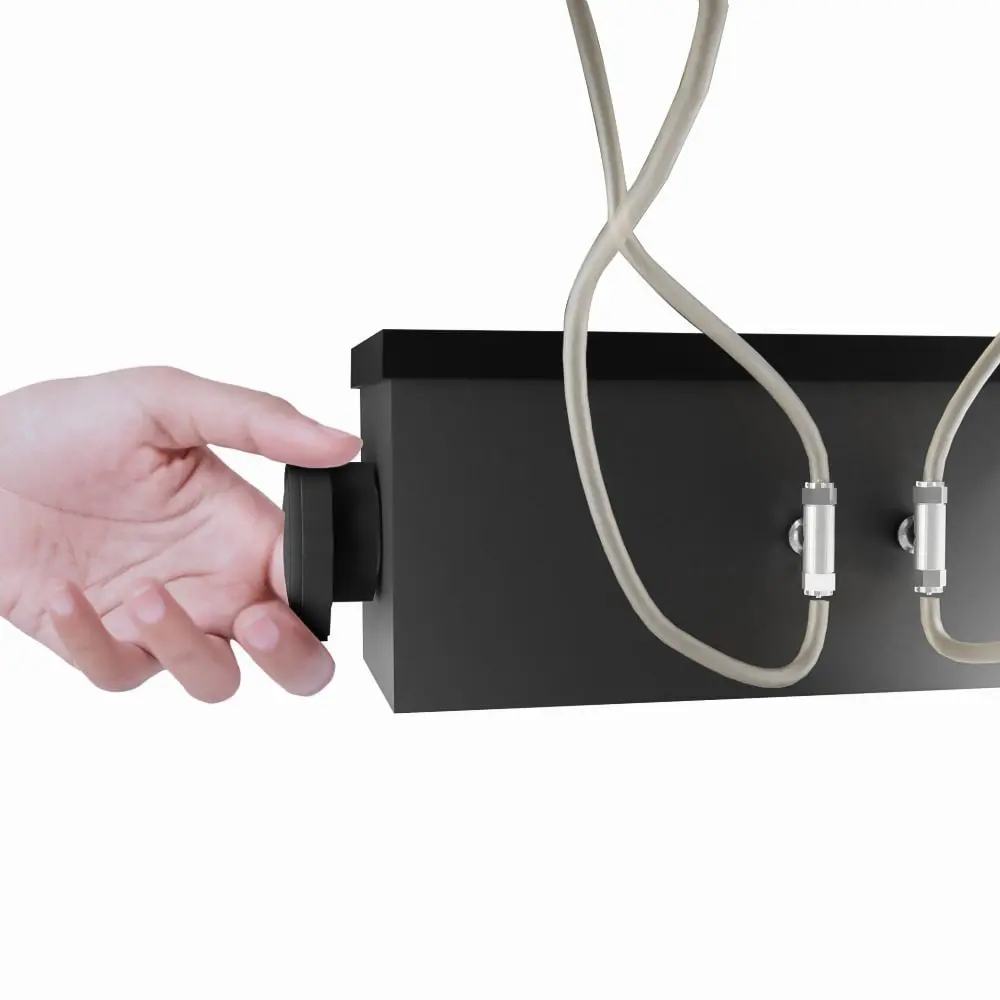

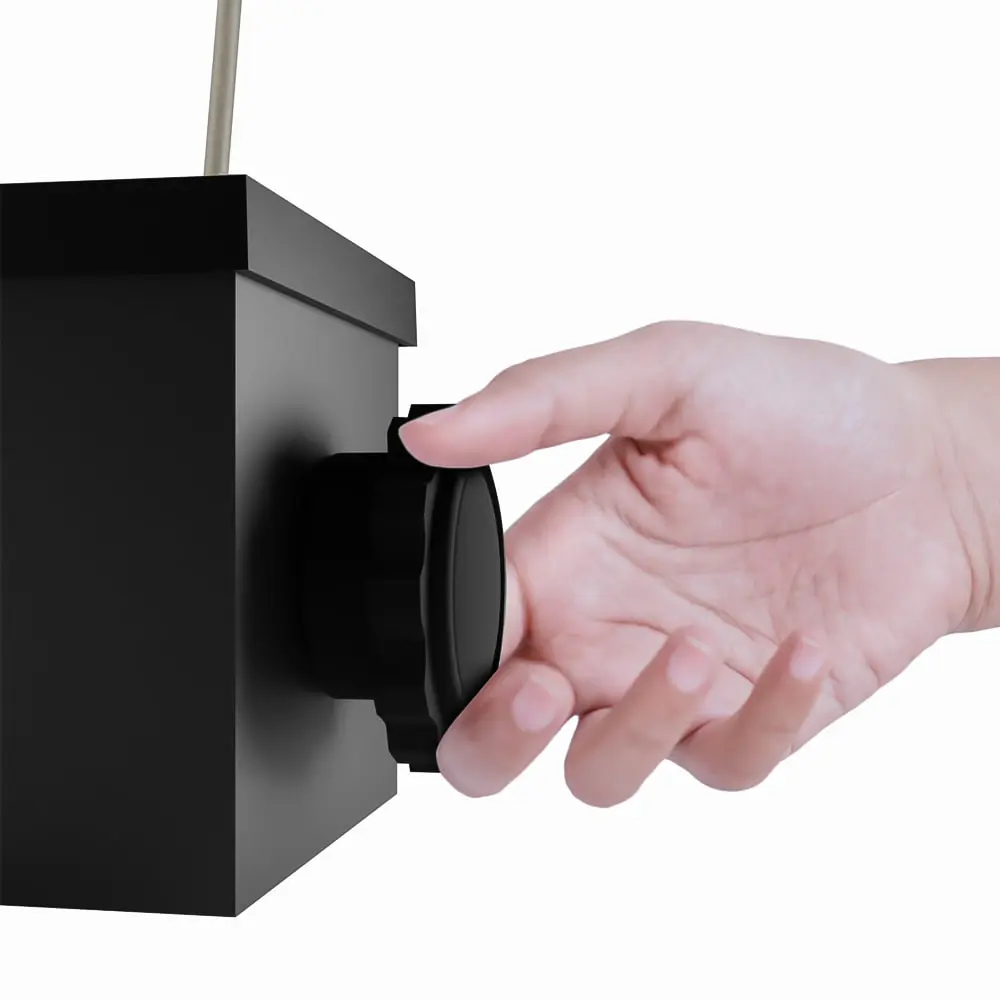

| Knobs | 2 Nos. for Fine & Coarse Pressure Adjustment |
| Pressure Range | Upto 1 bar |
| Vacuum Range | Upto 400 mm.Hg. |
| Pressure Ports_2 | 2 Pressure Ports with Ferrule Fittings, 1 Each for Master Gauge & Instrument under calibration |
| Domain | Calibration Services, HVAC, Hydraulics and Pneumatics, Laboratories and industrial applications, Measurement and Control Technology |
| Approximate Volume | 400 C.C. |
| Maximum Pressure | 30 PSIG |
| Maximum Vaccum | 70% of Atmospheric Pressure |
| Adjustment | Coarse & Fine Control |
| Outlet Connections | 4 Ferrule-less Union Connections |
| Manufacturer | Testo |
| Model No | 510 |
| Select Model | Pressure Pump with Master Gauge, Static Pressure Pump Only |
| Measuring Parameters | Differential Pressure |
| Range | 0 to 100 hPa |
| Accuracy | ±(0.1 hPa + 1.5 % of m.v.) (1.01 to 100 hPa), ±0.03 hPa (0 to 0.30 hPa), ±0.05 hPa (0.31 to 1.00 hPa) |
| Resolution_1 | 0.01 hPa |
| Positive pressure | 500 mbar |
| Maximum static pressure | 1.5 bar |
| Selectable Units | hPa, mbar, Pa, mmH2O, inH2O, inHg, mmHg, psi, m/s, fpm |
| Operating Temperature | 0 to 50 ℃ |
| Storage Temperature | -40 to +70 °C |
| Measuring Rate | 0.5 s |
| Protection class | IP 40 |
| Warranty | 1 Year Manufacturer Warranty |
| Note | Analog DP Gauge/Digital DP Gauge sold separately. |

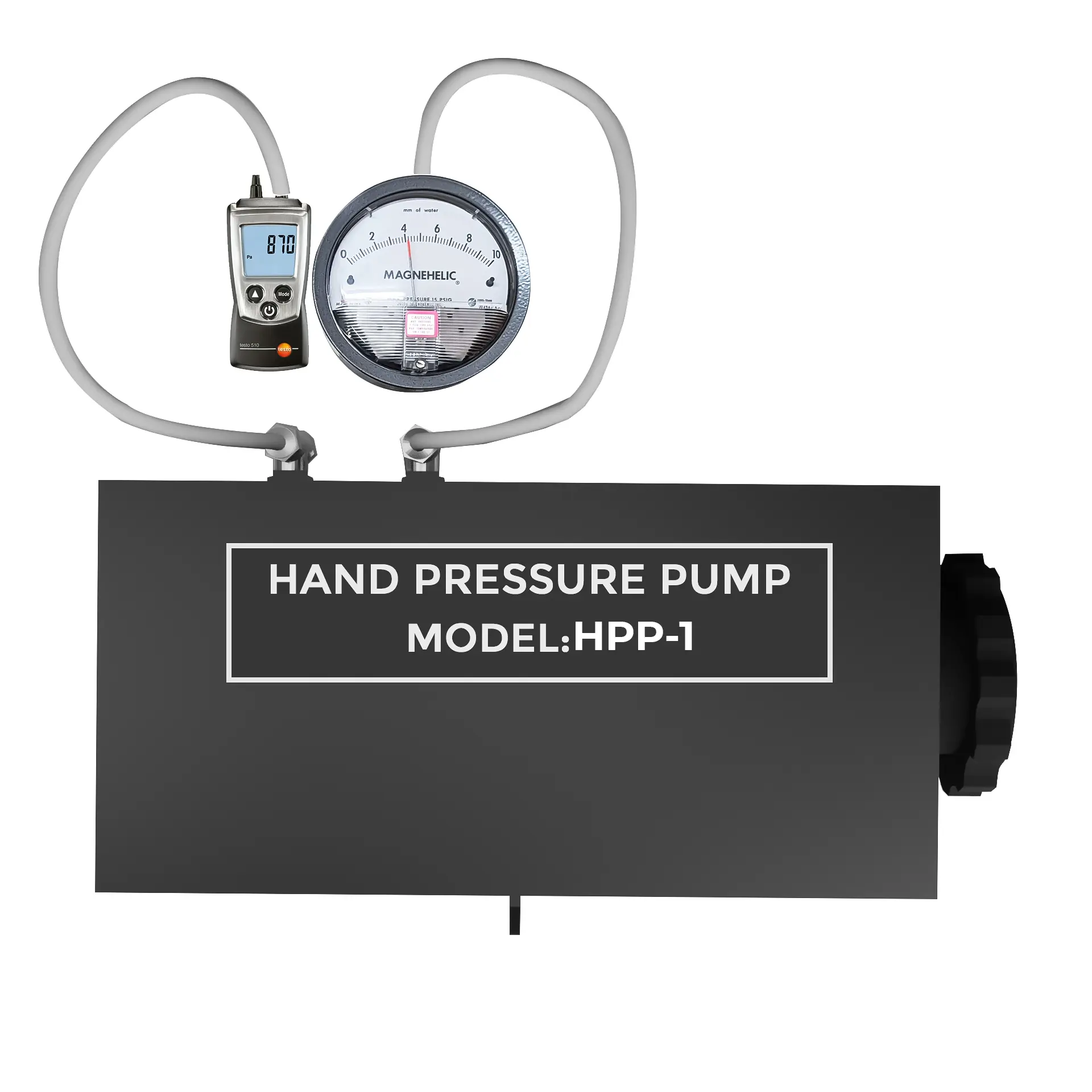

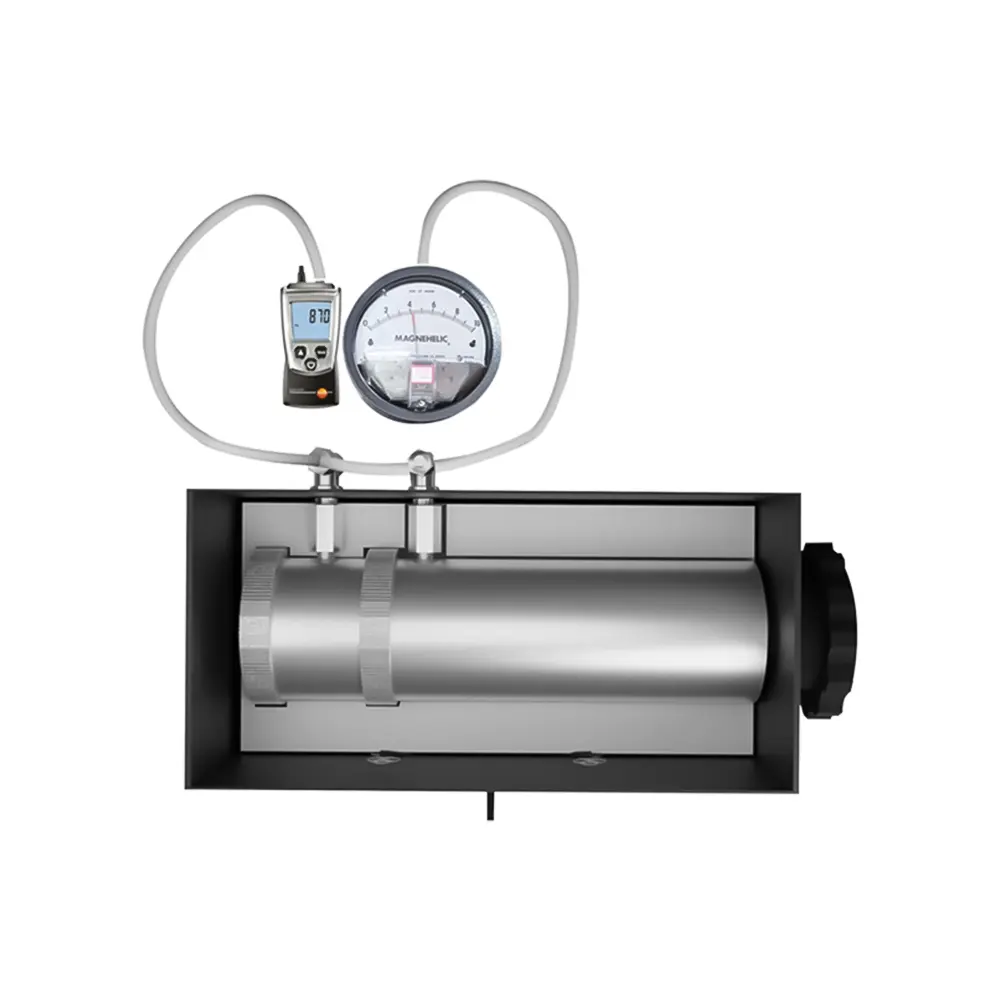

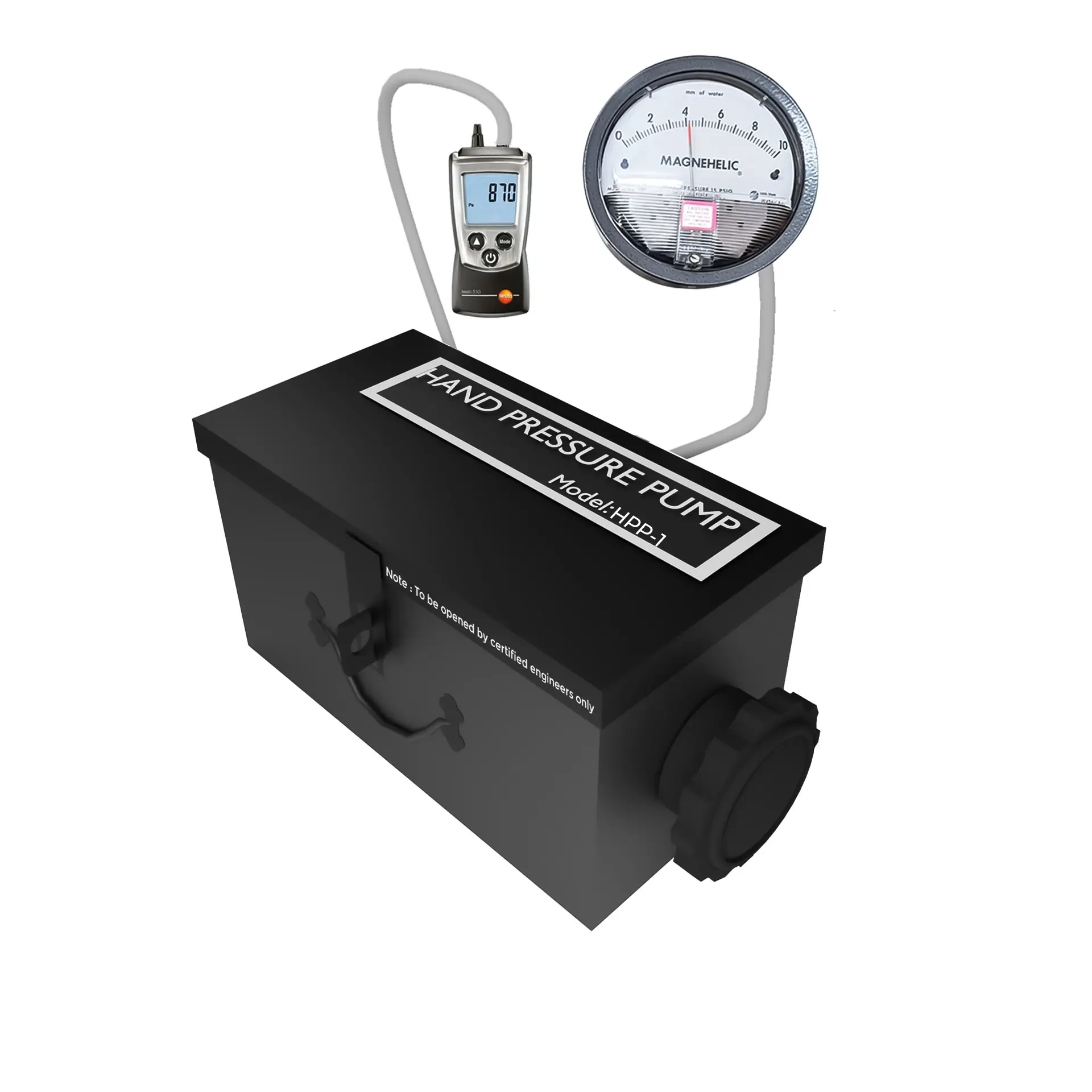

| Supply Scope | 1 Unit of Pressure Calibrator (HPP-01), 1 Unit of Master Gauge (Testo 510, Silicon Tube, carrying Case, Batteries, Instruction Manual and Factory Calibration Certificate) |
| Manufacturer | Ace Instruments |
| Weight | 0.411678 kg |
