Bench Top Hydraulic Pressure Calibrator Ace AI-PCAL1 is a reliable Pressure Calibration Equipment designed for accurate calibration and testing of pressure gauges, transmitters, transducers, and switches. This versatile Pressure Gauge Calibrator delivers precise pressure generation for laboratory and industrial applications. Engineered as a robust Pressure Testing Equipment, it ensures dependable performance, leak-free operation, and long-term durability. Featuring a high-accuracy High Pressure Calibration Pump, it is ideal for calibration labs, process industries, manufacturing facilities, and maintenance departments requiring precise pressure measurement verification.
Applications: Calibration laboratories, oil and gas industries, petrochemical plants, chemical processing industries, pharmaceutical manufacturing facilities, power generation plants, water and wastewater treatment plants, manufacturing industries, process automation systems, instrumentation and control departments, research and development laboratories, quality assurance and testing facilities, engineering service centers, industrial maintenance operations.

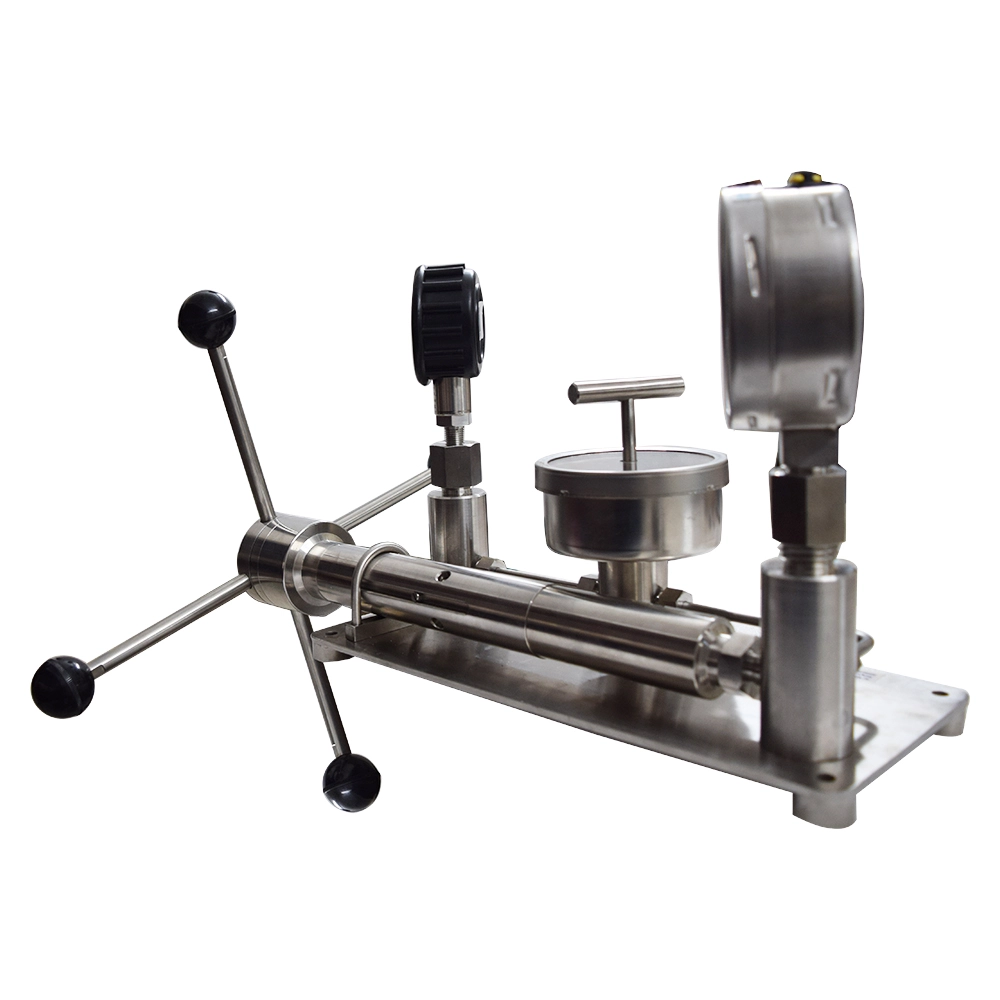

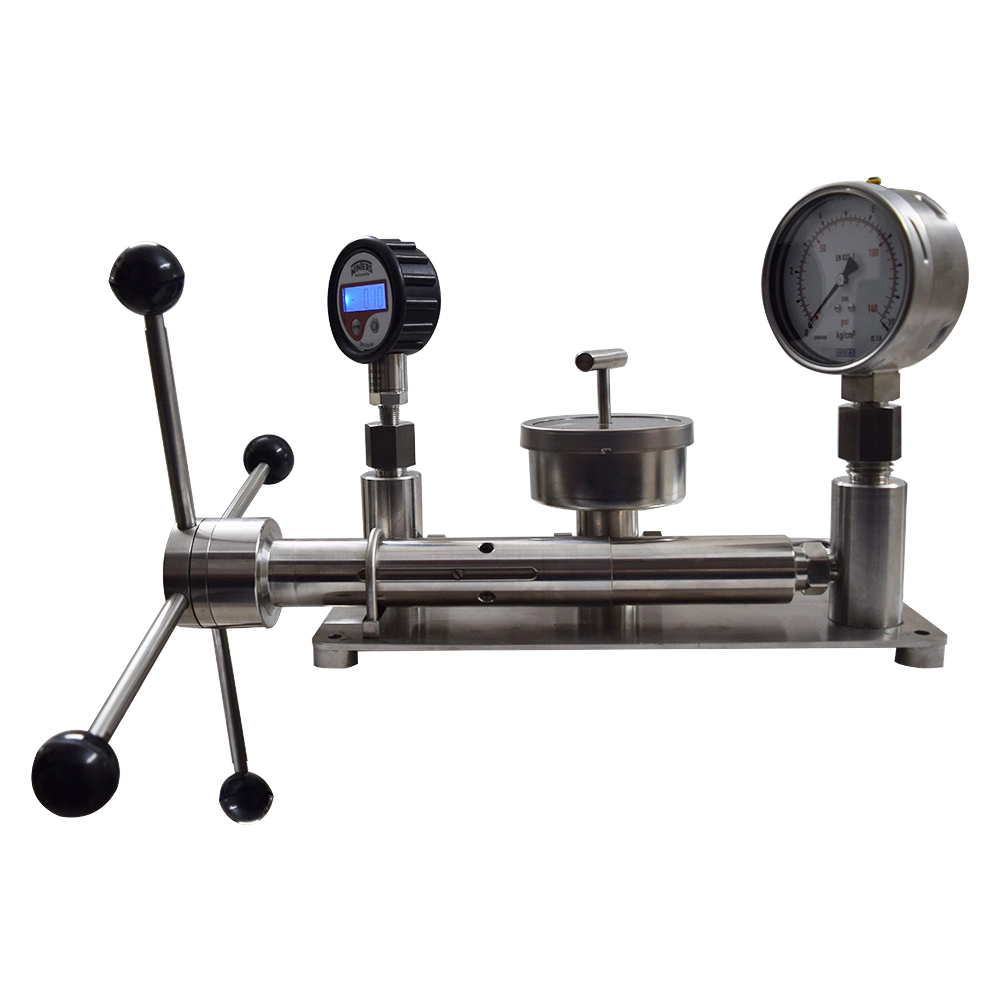

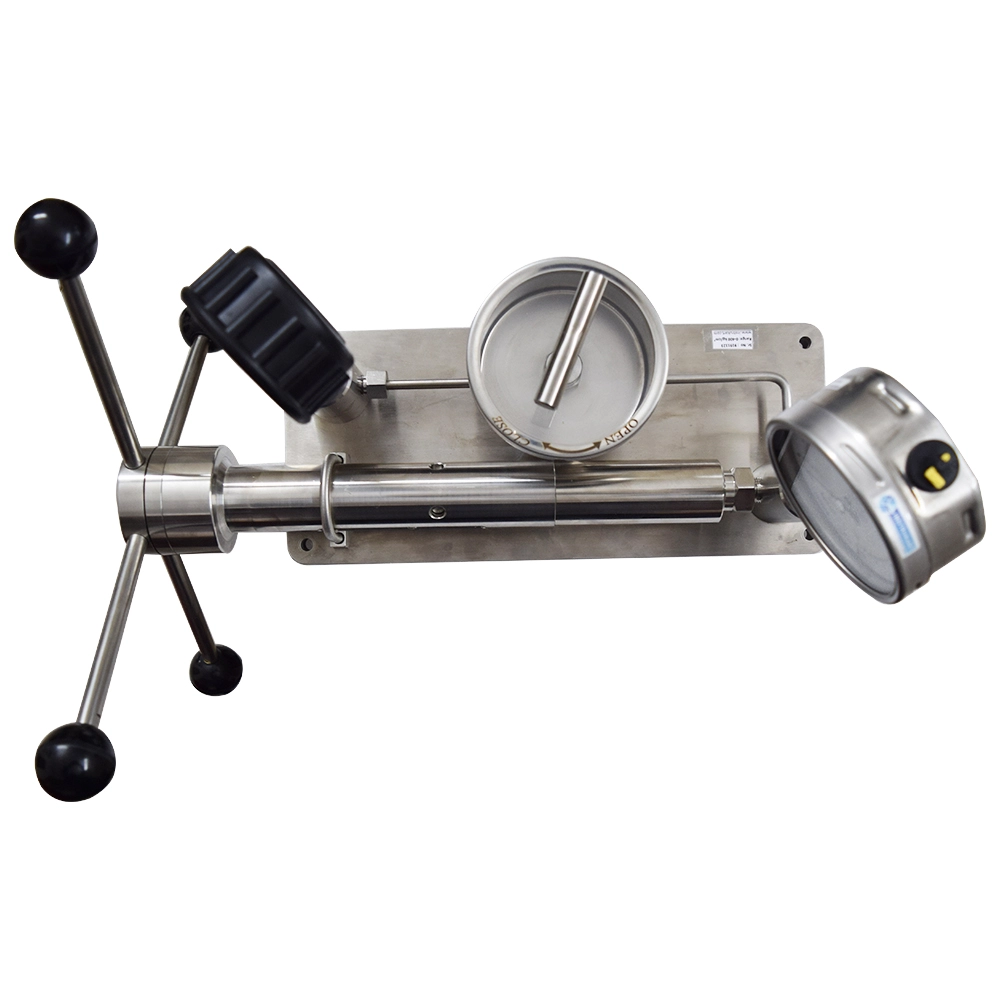

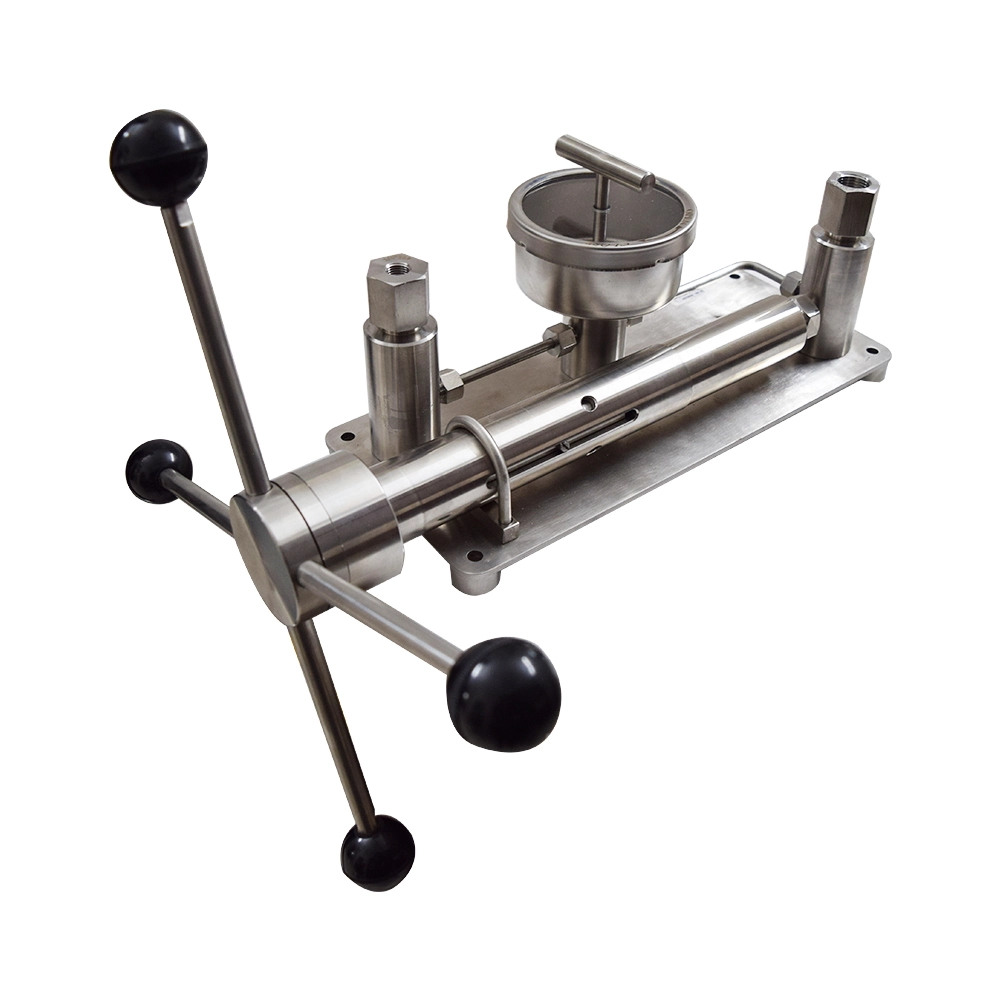

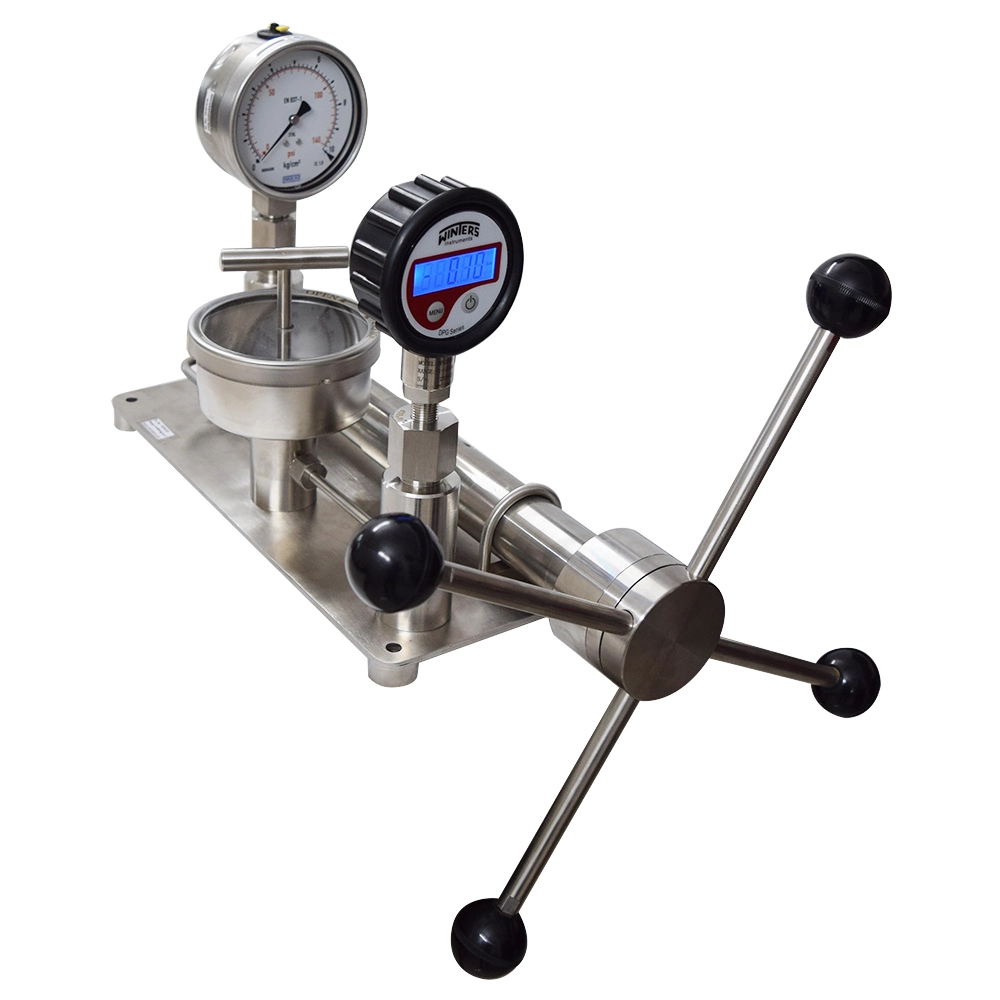

Bench Top Hydraulic Pressure Calibrator Ace AI-PCAL1 is a high-precision calibration instrument designed for accurate testing and calibration of pressure gauges, pressure transmitters, pressure transducers, and pressure switches. Featuring a robust stainless-steel construction, hand-operated pressure generation, and multiple pressure ranges up to 700 kg/cm², it delivers reliable performance for laboratory and industrial applications. Its user-friendly design, low maintenance requirements, and leak-free operation make it ideal for calibration and validation processes.
| Model No | AI-PCAL1 |
|---|---|
| Measuring Parameter | Pressure and Vacuum |
| Select Pressure Range | 0-1000 kg/cm², 0-200 kg/cm², 0-400 kg/cm², 0-700 kg/cm² |
| Vacuum Range | 0.6 Bar(500 mBar/450 mm of Hg) |
| Accuracy | +/- 0.5 % |
| Resolution | 1 digit |
| Base plate | Stainless Steel |
| Connection | 1/4" NPT 304SS |
| Pressure Adapters kit | 1/8” BSP (F) – 1 No., 1/4” BSP (F) – 2 Nos., 3/8” BSP (F) – 1 No., 1/2” BSP (F) – 1 No. |
| Weight | 8 Kgs |
| Dimensions | 703 X 360mm ( L X W ) |

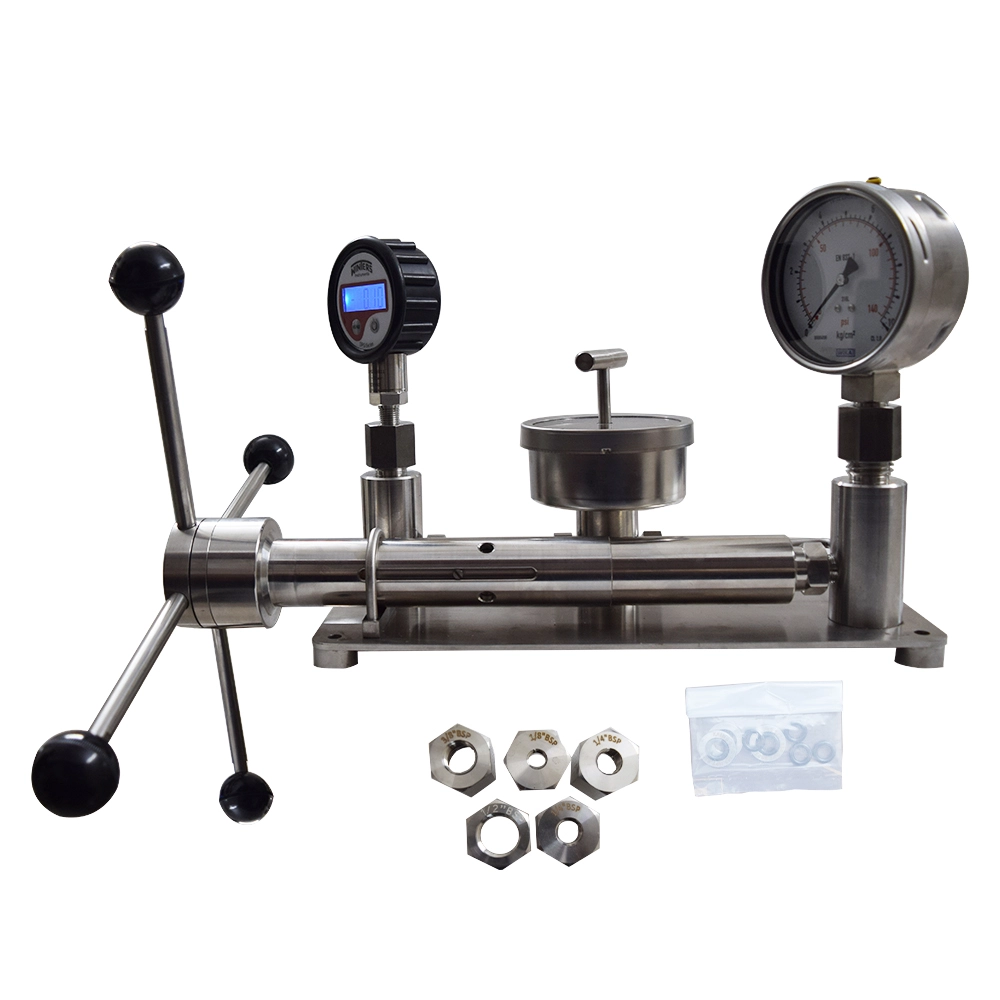

| Supply Scope | Pressure Calibrator, Pressure adapters set, 4 X handles, Spare seals, Pointer puller |
| Calibration Certificate | Provided at no extra cost, traceable to national/international standards, and valid for 1 year. |
| Warranty | 12-Month Warranty Against Manufacturing Defects |
| Manufacturer | Ace Instruments |
| Dimensions | Array |
