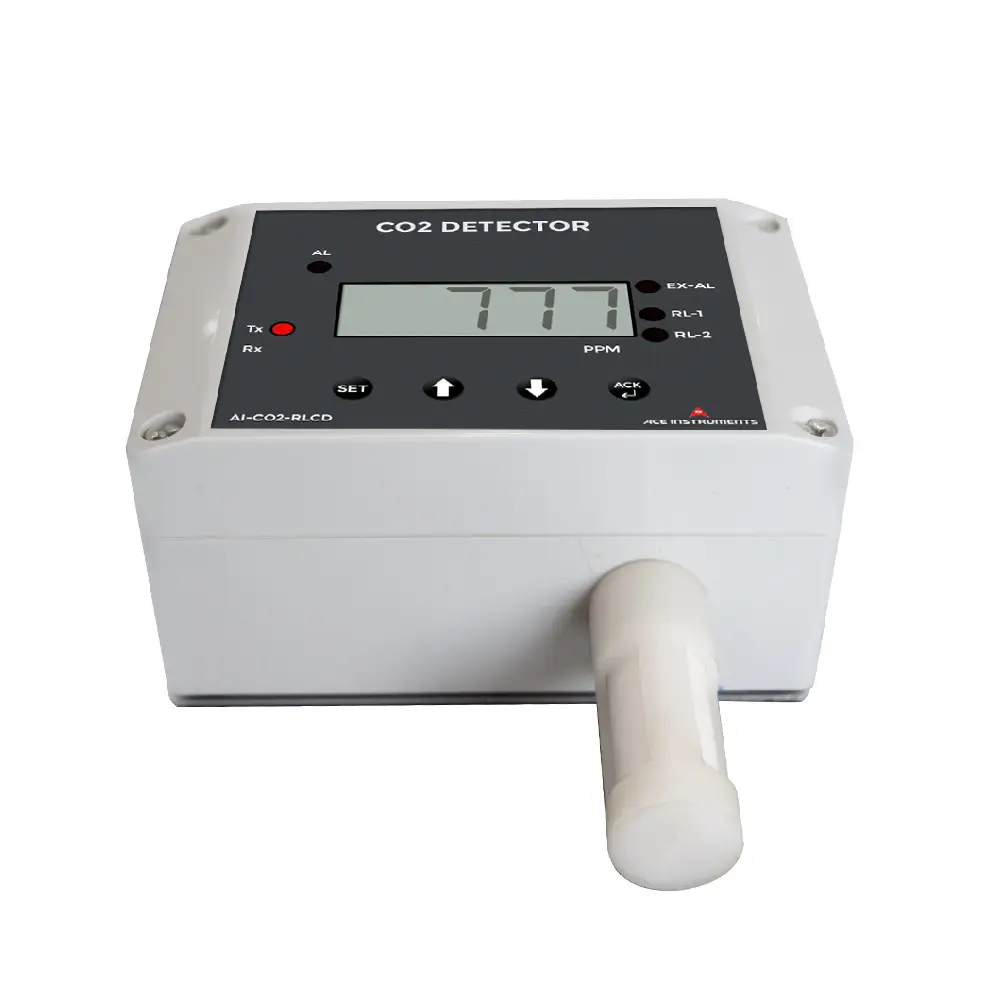

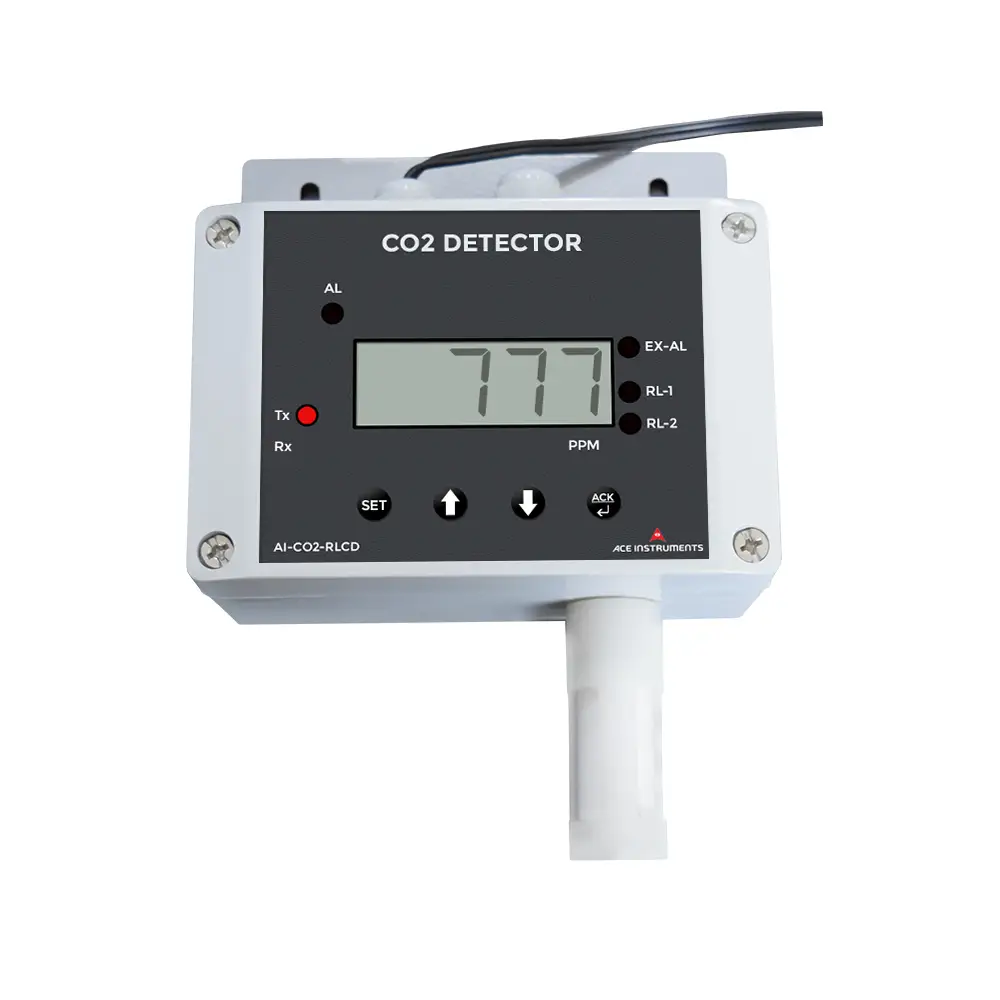

Carbon Dioxide Monitor Ace AI-CO2-10K-S is an advanced CO2 Monitor designed for accurate carbon dioxide measurement and continuous indoor air quality monitoring. This CO2 Meter uses an industrial-grade CO₂ transmitter with a Swiss photoacoustic sensor for reliable and stable readings. It functions as a Carbon Dioxide Meter, Carbon Dioxide Sensor, and CO2 Concentration Meter for accurate CO₂ level monitoring. The Air Quality Monitor is available in wall-mount and duct-mount configurations, with optional RS-485 communication, buzzer alarms, relay outputs, and a wall-mounted display. This Portable CO2 Monitor supports convenient and reliable CO₂ monitoring.
Applications: Greenhouse Monitoring, Cold Storage Monitoring, Mushrooms Farms, Industries, Confined Spaces and Hospital Laboratories, etc.
Ace AI-CO2-10K-S Carbon Dioxide Monitor accurately indicates CO2 levels using an industrial-grade carbon dioxide transmitter. Equipped with advanced sensing technology, it features a Swiss photoacoustic sensor for highly reliable monitoring. This CO2 detector supports measurement ranges up to 0-20,000 PPM and offers standard RS-485 communication, a programmable buzzer alarm, and relay outputs. Designed for demand control ventilation, it is ideal for commercial buildings and various industrial applications.
| Model | AI-CO2-10K-S |
|---|---|
| Measurement Parameter | Carbon Dioxide (CO₂) |
| CO2 Measuring Range | 2000ppm, 5000ppm, 10000ppm, 20000ppm |
| Accuracy | ±5% in 400–1,000 ppm range |
| Display | 4½-digit clear LCD display |
| Analog Output | 4–20 mA / 0–10 VDC, user field selectable, Optional, Contact Store |
| Relay Output | Optional single relay output 2A (NO/CO/NC), freely programmable |

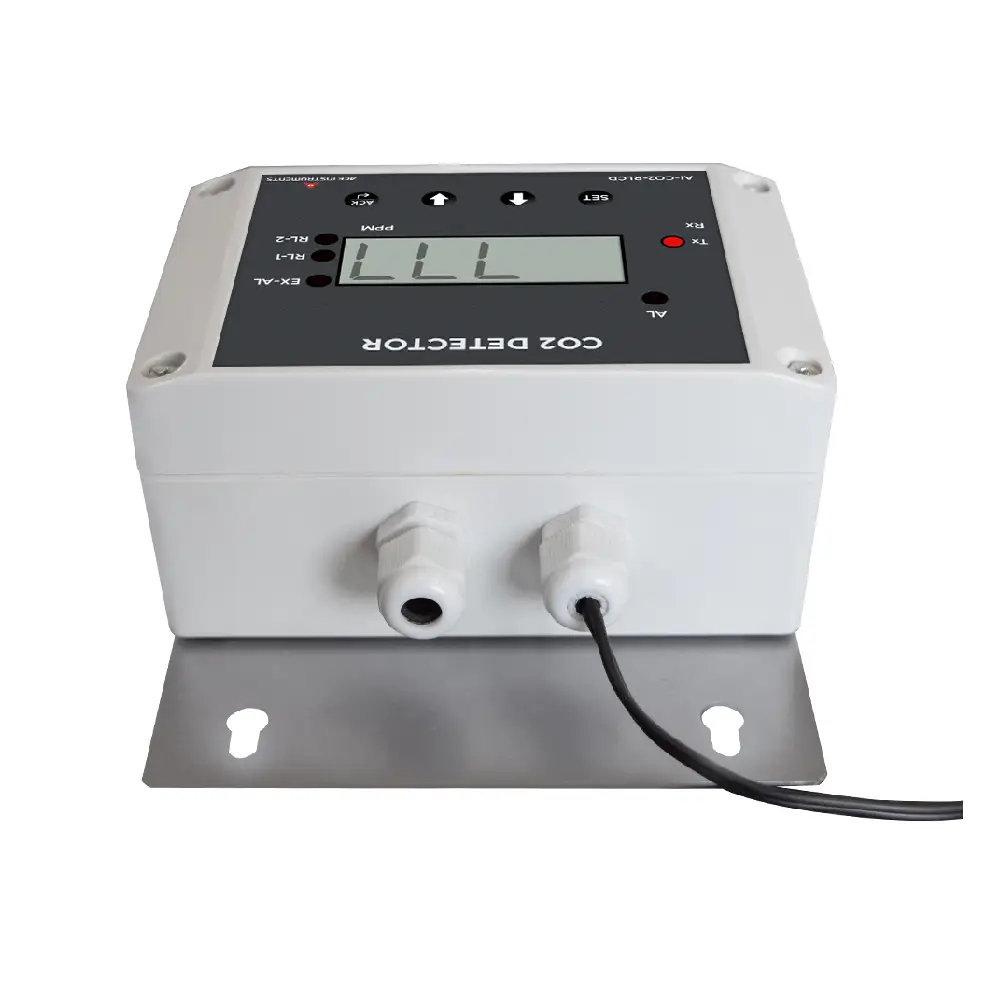

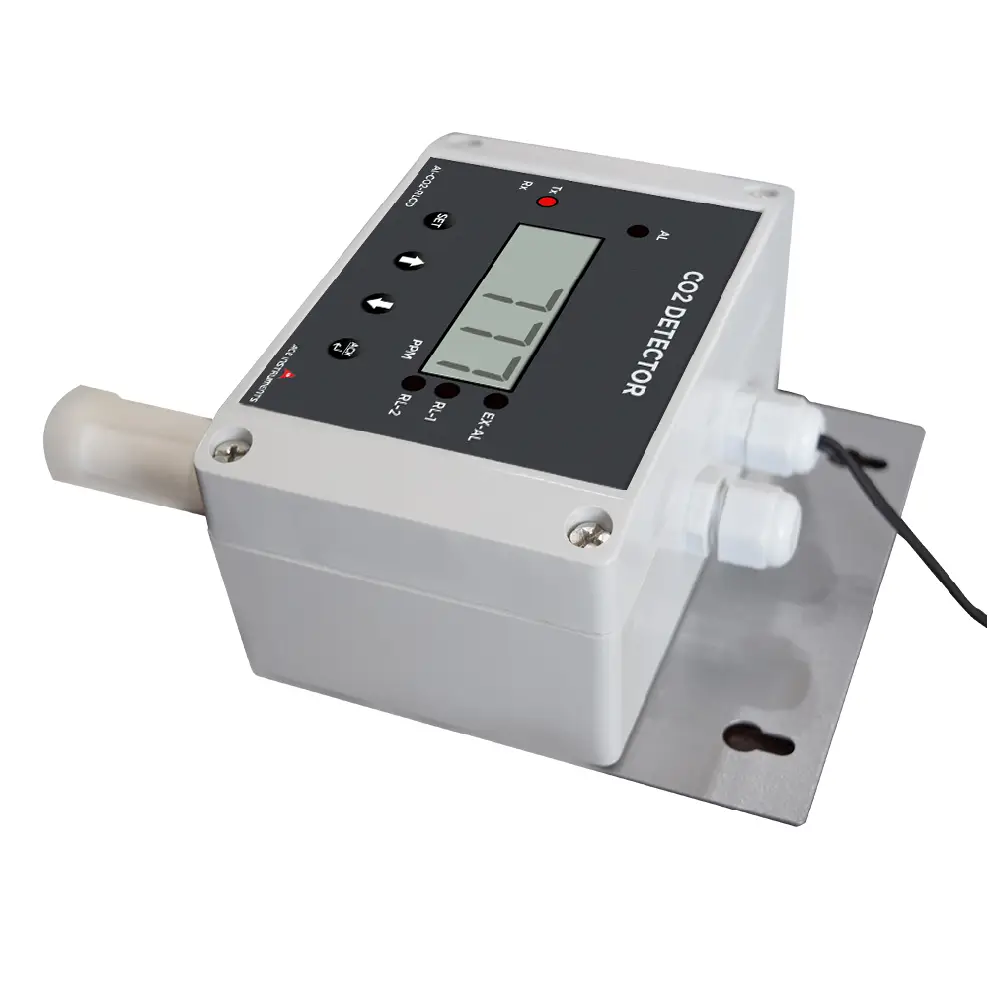

| Mounting Options | Wall mounting; duct mounting enclosure available |
| Sensor Technology | Swiss Photoacoustic (PAS) Sensor |
| Communication | Standard RS-485 Modbus communication |

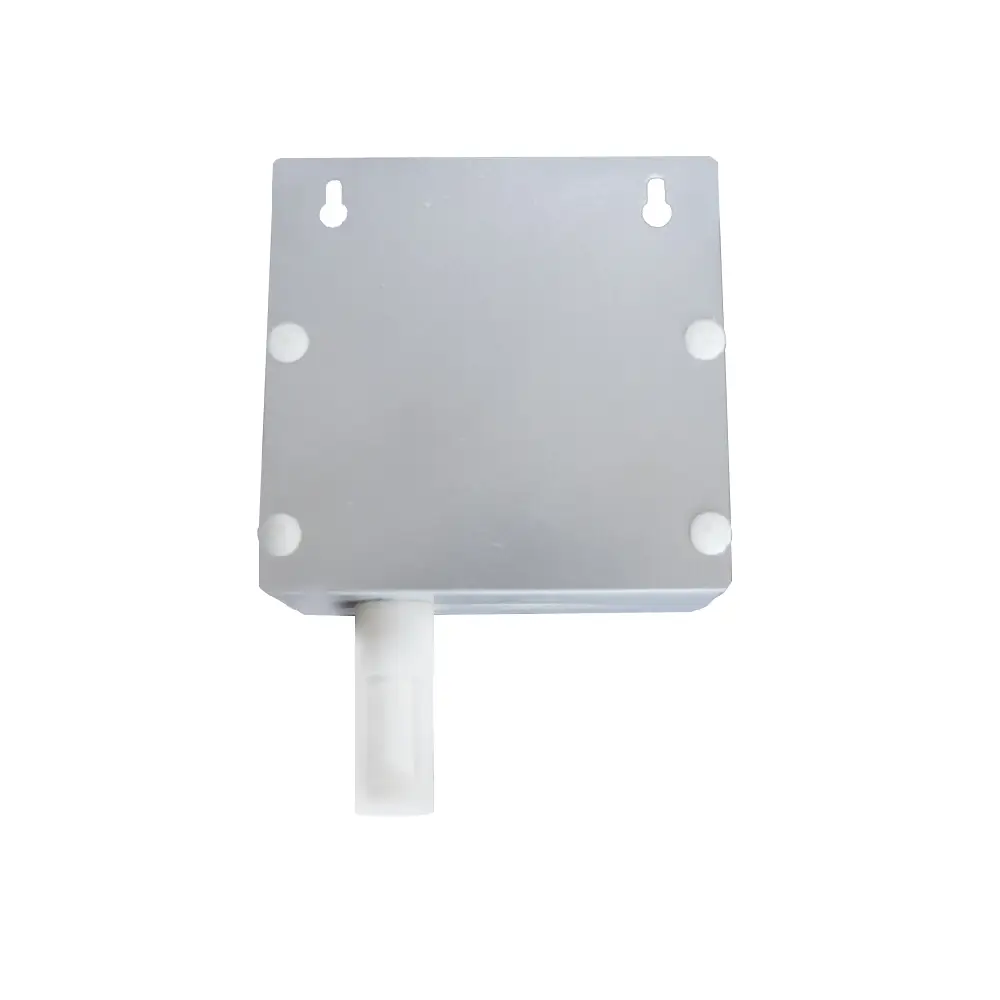

| Enclosure | Wall-mount ABS plastic enclosure with wall bracket |
| Dimensions | 80 (H) × 120 (W) × 55 (D) mm |
| Power Supply | Universal 110–230 VAC, 50/60 Hz to 24 VDC Power Adapter with Region-Specific Power Plug (US,UK,UAE,EU) |
| Supply Scope | CO₂ Detector/Controller, Power Adapter, Instruction Manual, Factory Calibration Certificate |
| Calibration Certificate | Provided at no extra cost, traceable to national/international standards, and valid for 1 year. |
| Warranty | 12-Month Warranty Against Manufacturing Defects |
| Manufacturer | Ace Instruments |
| Storage Conditions | −10 to +60°C |
| Buzzer Alarm | Optional programmable built-in buzzer for Low, High, and Extreme High thresholds |
| IP Rating | IP65, splash-proof |
| Response Time | <3 minutes for 90% step change |
| Weight | 12 kg |
| Dimensions | Array |
| SKU / Model | S-0445 |
