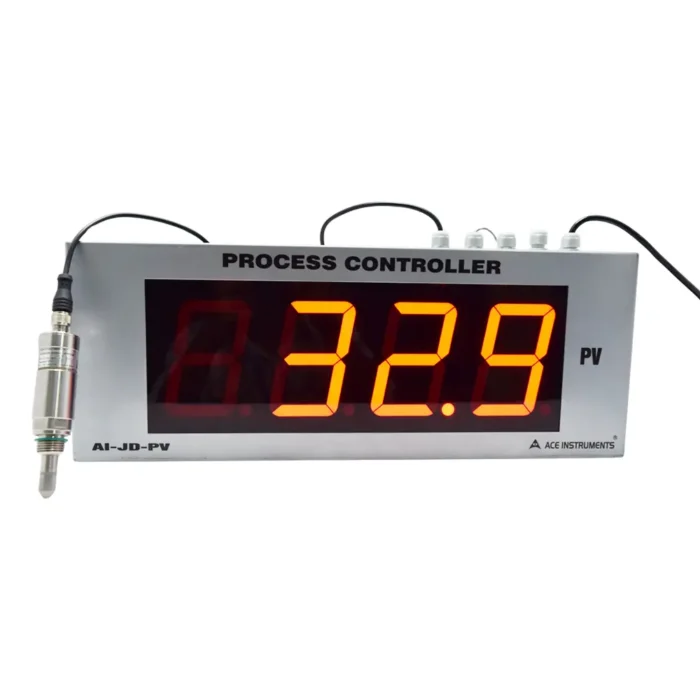

Jumbo Display Process Controller with Dew Point Transmitter provides accurate real-time moisture monitoring for compressed air, gas, and industrial processes. This Industrial Dew Point Monitor features a large 4-digit LED display for clear long-distance visibility and functions as a Digital Dew Point Meter for easy monitoring. The integrated Dew Point Sensor supports 4–20 mA input, optional RS-485 Modbus, retransmission output, and dual relay control for reliable process monitoring.
Applications : Compressed air systems monitoring, HVAC, Drying, Pharmaceutical, Chemical and petrochemical industries, Textile and paper, Storage and warehouse.
Jumbo Display Process Controller with Dew Point Transmitter provides accurate and continuous dew point measurement for compressed air, gas, and industrial processes. It combines a large, easy-to-read display with a reliable sensor for real-time monitoring of moisture conditions. As a Dew Point Meter, it helps operators track dew point levels clearly and supports effective process monitoring and moisture control.
| Model No | AI-JD-PV-DEP |
|---|---|
| Measuring Parameters | Dew Point |
| Sensor | Dew Point sensor ( E355-PA1SAL ) |
| Range | 20 to 200,000 ppm |
| Accuracy | ±(2 ppm + 9% from measured value) |
| Electromagnetic compatibility | EN61326-1 EN61326-2-3 Industrial environment FCC Part 15 ICES-003 ClassB |
| Sensor Protection | Stainless steel sintered filter |
| Pressure Working Range | 0...80 bar (0...1 160 psi) |
| Temperature Working Range | -40...+70 °C (-40...+158 °F) |
| Humidity Working Range | 0...100%RH |
| Analog Output | 4-20 mA (3-wire technology) RL < 500 Ohm |
| Response Time | < 5 min -20 °C Td ( -4 °F Td) -60 °C Td (-76 °F Td),15 sec -60 °C Td (-76 °F Td) -20 °C Td (-4 °F Td) |
| Protection class | Stainless steel 1.4404 (AISI 316L) /IP65 |
| Sensor Power Supply | 18...28 V DC |
| Controller | Dew Point Process Controller |
| Display | 4 Digit 7 Segment LED Display of Height 4 |
| Excitation Voltage | Optional: 24V.D.C., 50mA Built In Supply for transmitter |
| Input | User Selectable: 4-20 mA,RTD Pt-100,J,K,R & S thermocouple |
| Control Output | 2 Relays NO/C/NC rated 230V/6 A from Controller |
| Communication | Optional RS 485 Modbus Protocol Communication for BMS/SCADA |
| Retransmission | Optional: 4-20 mA Retransmission |
| Enclosure | Wall Mountable Powder Coated M.S |
| Dimensions | 535(L) X 255(H) X 70(D) |
| Power Supply | Standard 230 V.A.C., 50 Hz. / Optional 24 VDC |
| Calibration Certificate | Provided at no extra cost, traceable to National/International Standards, Valid for 1 year only |
| Warranty | 1 Year Manufacturing Warranty |
| Manufacturer | Ace Instruments |
