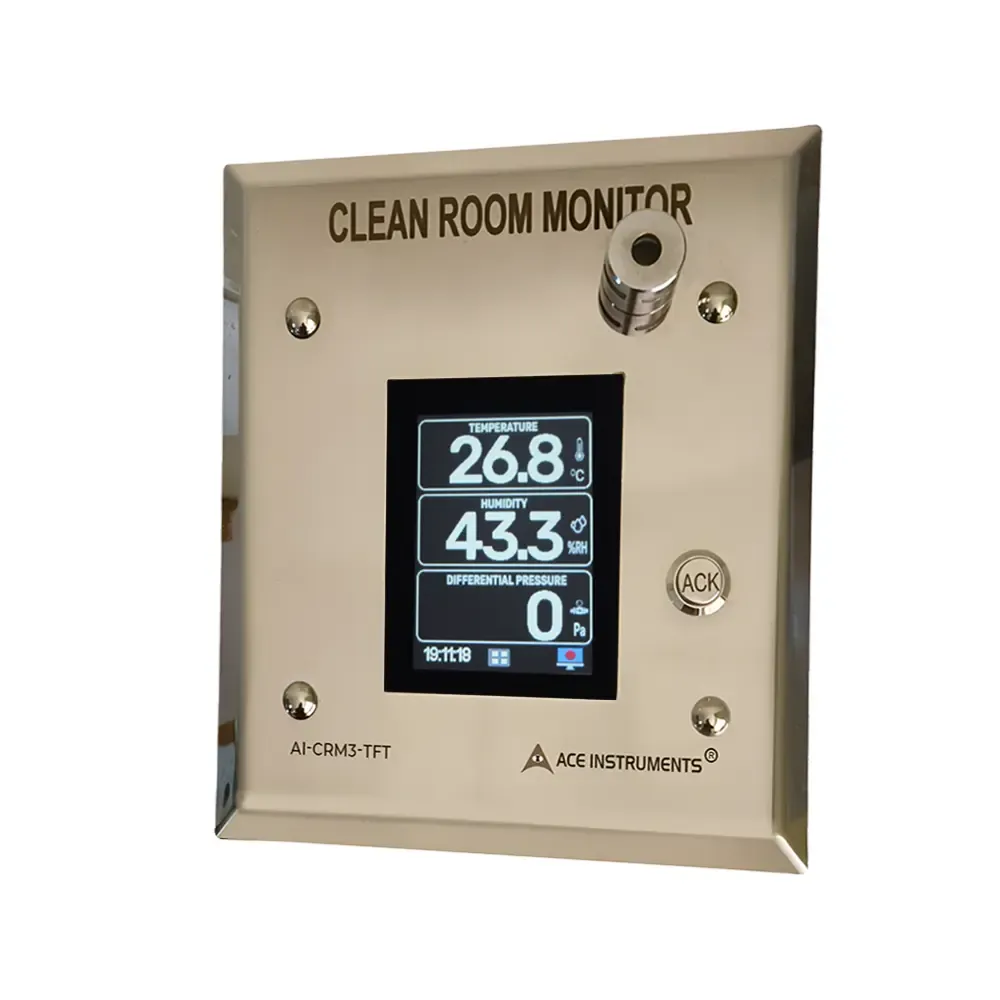

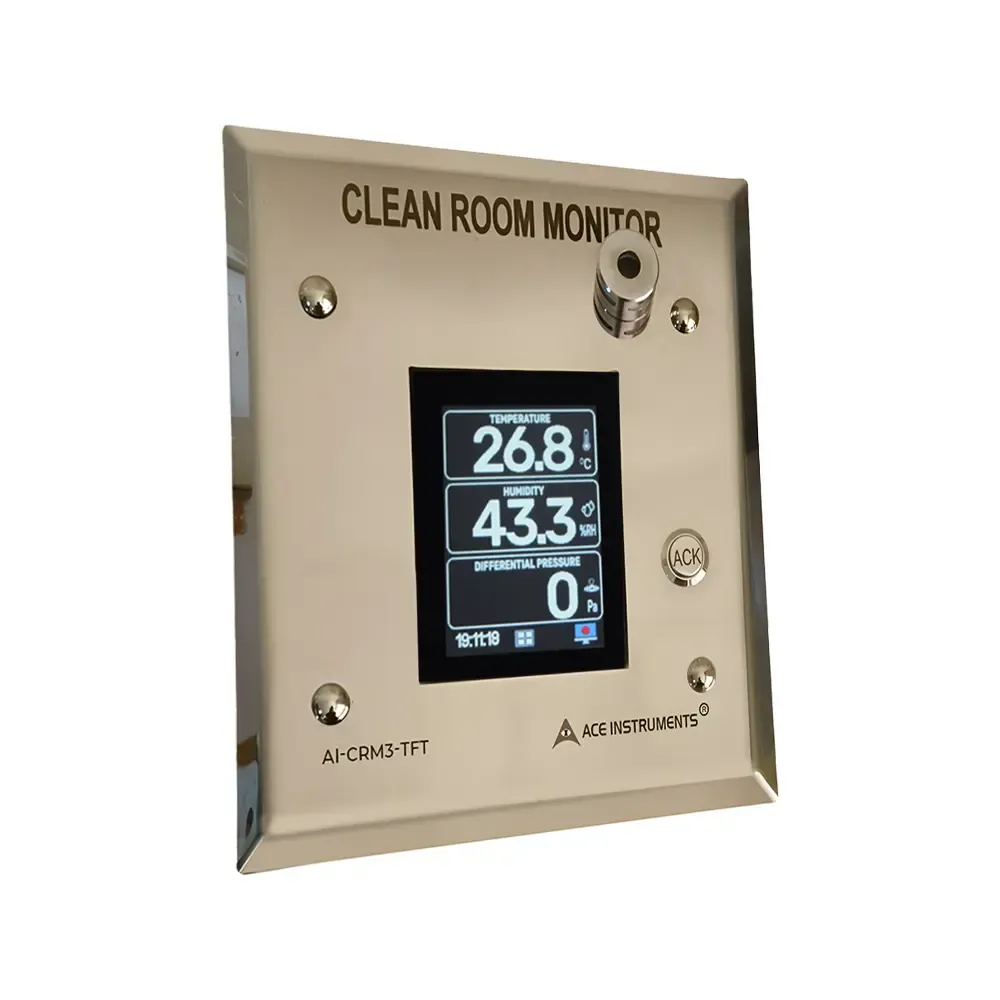

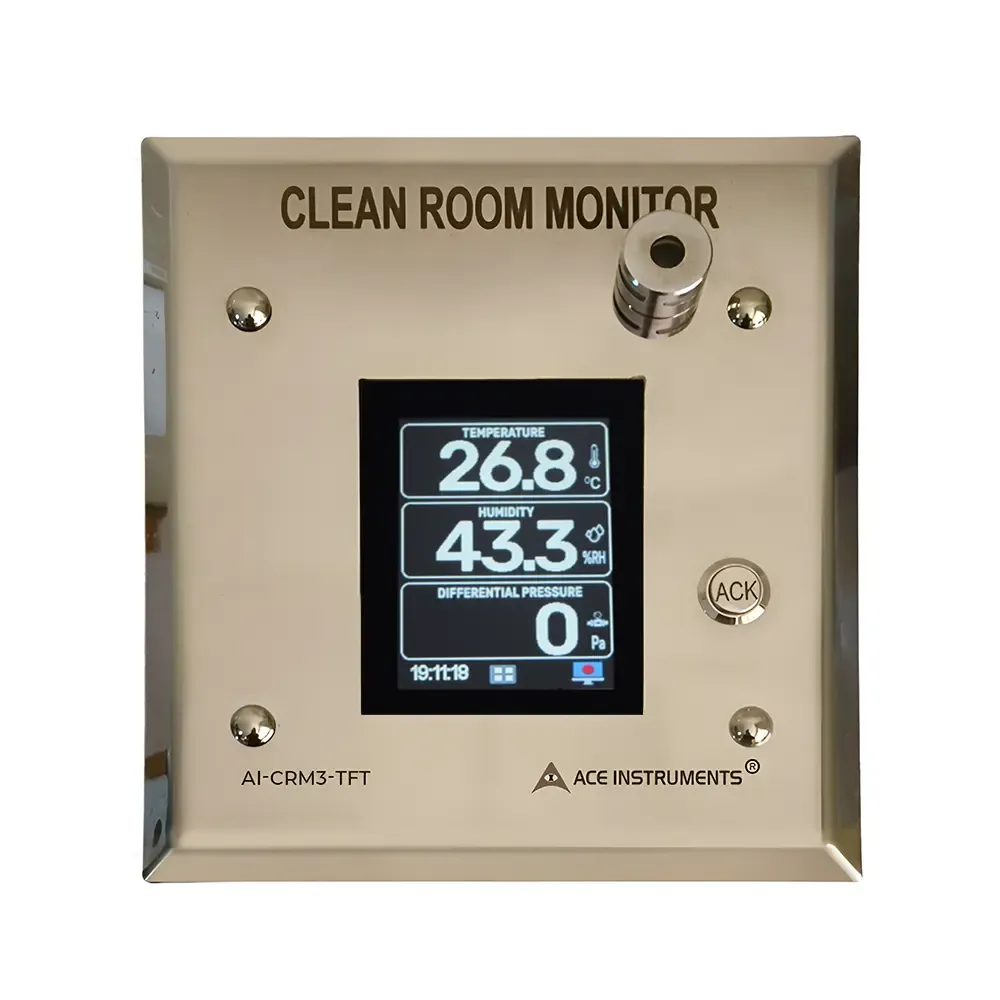

Differential Pressure, Temperature and Humidity Monitor with TFT Display for Cleanrooms | Ace AI-CRM3-TFT is designed for continuous monitoring of critical cleanroom conditions. This TFT Display Cleanroom Monitor features a 3.5-inch full-color screen with a clear 3-line display for easy viewing of temperature, humidity, and differential pressure readings. As a Cleanroom Environmental Monitor, it includes an integrated buzzer alarm for process limit violations and RS485 MODBUS output for BMS/EMS integration. The Cleanroom Temperature Humidity Monitor supports reliable environmental monitoring in controlled facilities.
Applications: Pharma Clean Rooms, Hospital Operation Theatre Rooms & Isolation rooms, Pharmaceuticals etc.
This Clean Room Monitor displays differential pressure, temperature and relative humidity on one 3.5″ full-color touch screen, with a buzzer alarm on every parameter and a real-time clock that timestamps each event. The AI-CRM3-TFT alerts you the moment your pressure cascade breaks.
Ensure compliance with international standards: EU GMP Annex 1 requires continuous monitoring with alarms and indicates 10 Pa between adjacent grades. ISO 14644-4 guides 10 to 15 Pa. ASHRAE 170 sets a minimum 2.5 Pa for operating rooms and isolation rooms. This monitor gives you that reading on the wall, with an alarm attached.
| Model No | AI-CRM3-TFT |
|---|---|
| Measuring Parameters | Differential Pressure, Humidity, Temperature |
| Select Range | 0 to 100 Pascals, 0 to 250 Pascals, 0 to 500 Pascals, 0 to 1000 Pascals |
| Resolution_1 | 0.1mmwc or 1 Pa |
| Accuracy_1 | ±0.5% Full Scale |
| Sensor Type | Piezoresistive Sensor for Differential Pressure |
| Temperature Range | 0.0 to 50.0 °C |
| Resolution_2 | 0.1°C |
| Accuracy_2 | ±0.1°C |
| Temperature Sensor Type | Polymer sensing for Temperature |
| Humidity Range | 0.0 to 100.0 %RH |
| Resolution_3 | 0.1% RH |
| Accuracy_3 | ±1% RH |
| Humidity Sensor | Capacitive polymer sensing for Relative humidity |
| Display | Multi row 3.5” Height Full Color TFT with Individual Parameter Engineering Unit Display. |
| Acknowledge Key | Front panel button to mute the buzzer during alarm conditions. |
| Buzzer | Integrated buzzer for Alarm in case of process violation of any of the 3 parameters |
| Communication | Standard RS 485 Modbus RTU Protocol communication for BMS / SCADA / PLC integration |
| Analog Output | 4-20mA Output (Optional), Contact Store |
| Enclosure | M.S. Powder Coated Body with Stainless Steel |
| Dimensions | Front SS Plate : 180(W) x 200(H) (Approx., May Change depending on Inputs & Config) Back MS box : 110 (W)x 150 (H)x 40 (D)mm. |

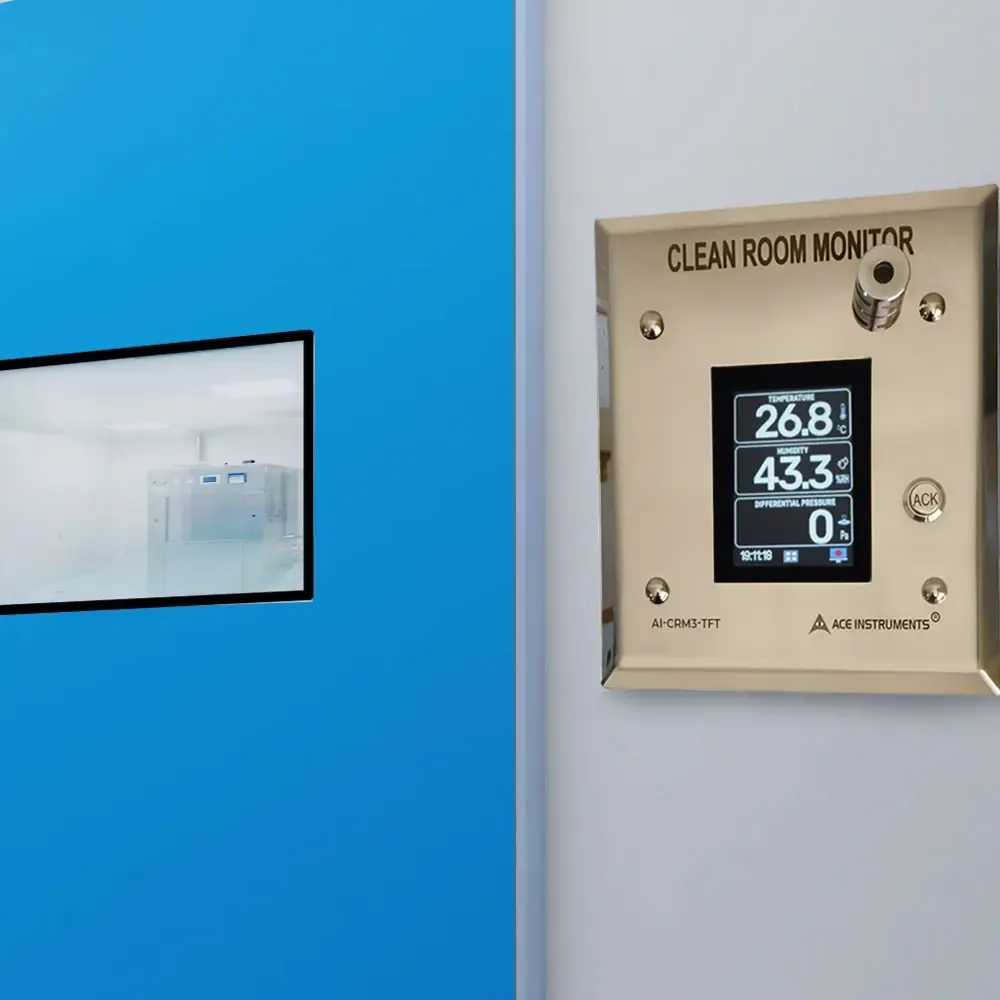

| Mounting | Wall Mounting / Modular Wall mounting /Optional Brick Wall Mounting |
| Weight | 700g |
| Power Supply | Universal 110–230 VAC, 50/60 Hz to 24 VDC Power Adapter with Region-Specific Power Plug (US,UK,UAE,EU) |
| Supply Scope | 1 Unit of CRM3-TFT Clean Room Monitor, 12-24 VDC Power Adapter, Silicon Tube, Instruction Manual and Factory Calibration Certificate |
| Calibration Certificate | Provided with 1-year validity and NIST traceability, at no extra cost |
| Warranty | 1 Year Manufacturing Warranty under faults |
| Manufacturer | Ace Instruments |
