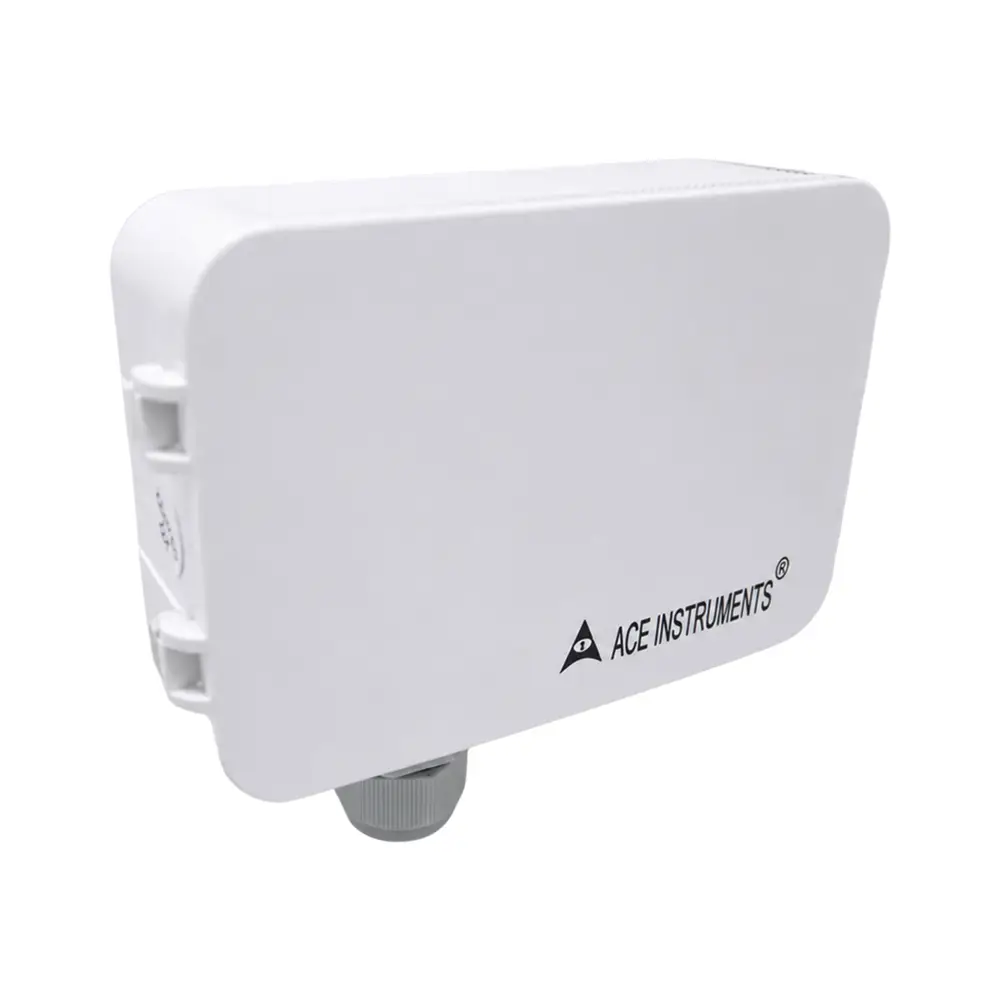

Differential Pressure Transmitter AI-DPTx delivers precise air pressure monitoring for HVAC, industrial, and cleanroom applications. Engineered as a Differential Pressure Transmitter, it also functions as a high-performance Differential Pressure Sensor and HVAC Pressure Sensor with jumper-selectable pressure ranges and field-selectable 4–20 mA or 0–10 VDC outputs. This Industrial Differential Pressure Transmitter features an IP52 enclosure for reliable operation, enabling accurate filter monitoring, airflow control, and pressure measurement across AHUs, HEPA filters, medical facilities, and sterile environments.
Applications: HVAC systems, pharmaceutical clean rooms, hospital isolation rooms, ventilators, and oxygenators.
AI-DPTx Differential Pressure Transmitter offers accurate differential pressure monitoring for ventilation, automation, and industrial control systems. Built with a rugged design and simple installation, it provides stable performance for continuous airflow and pressure management.
| Model No | AI-DPTx |
|---|---|
| Measuring Parameters | Differential Pressure |
| Select Range | 0 To 100 Pa, ± 100Pa, 0 To 1250 Pa, ± 1250Pa, 0 To 250 Pa, ± 250Pa, 0 To 2500 Pa, ± 2500Pa, 0 To 500 Pa, ± 500Pa, 0 To 60 Pa, ± 60Pa |
| Measuring Range | Select measuring ranges from the dropdown |
| Accuracy | ± 0.5 % of full scale |
| Max Over Pressure | +/- 10,000 Pascals |
| Output Signal | Field selectable 4-20mA (2-wire)/ 0-10 VDC ( 3 Wire ) |

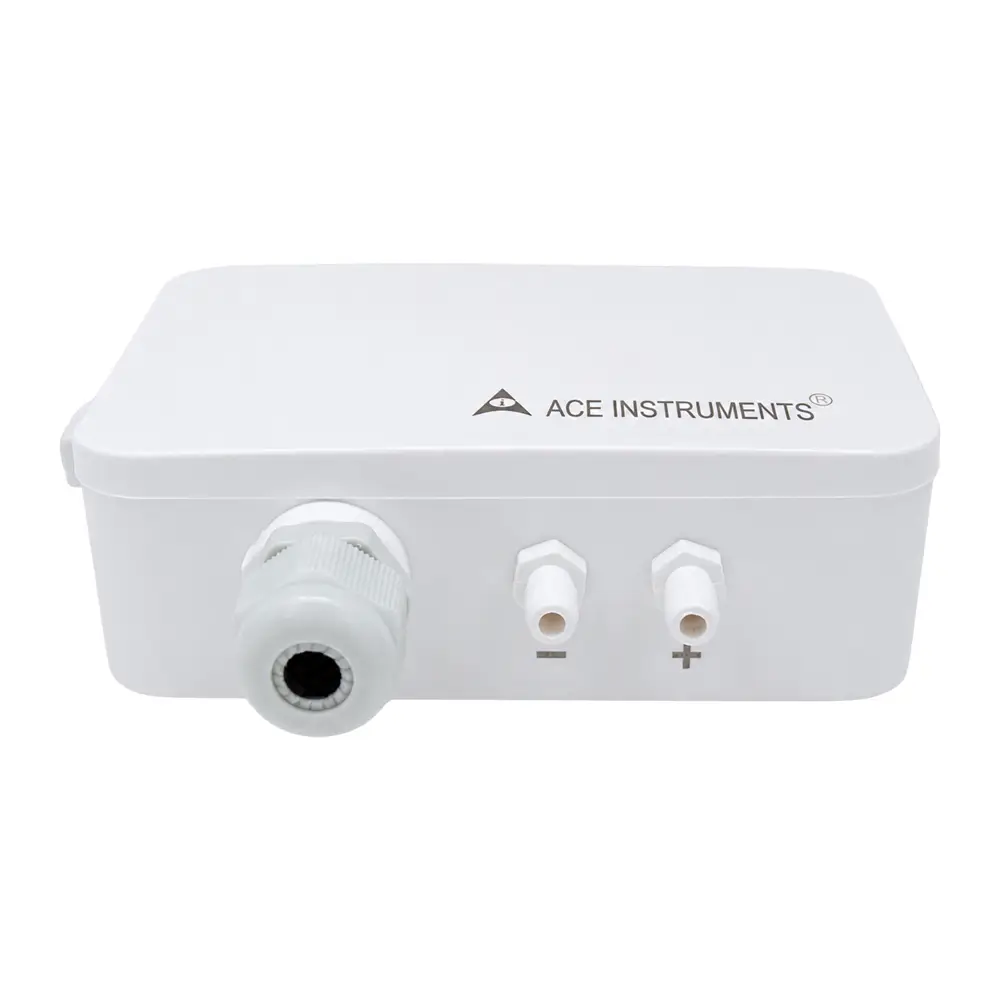

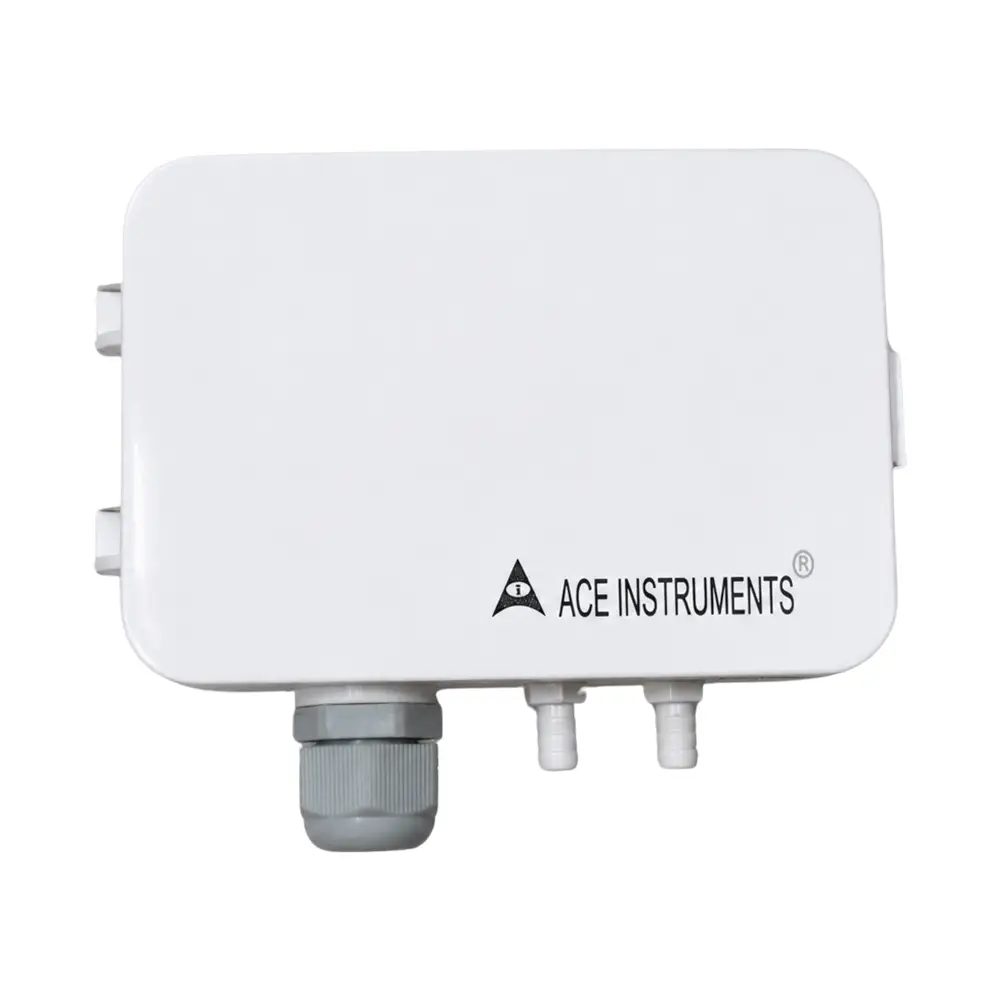

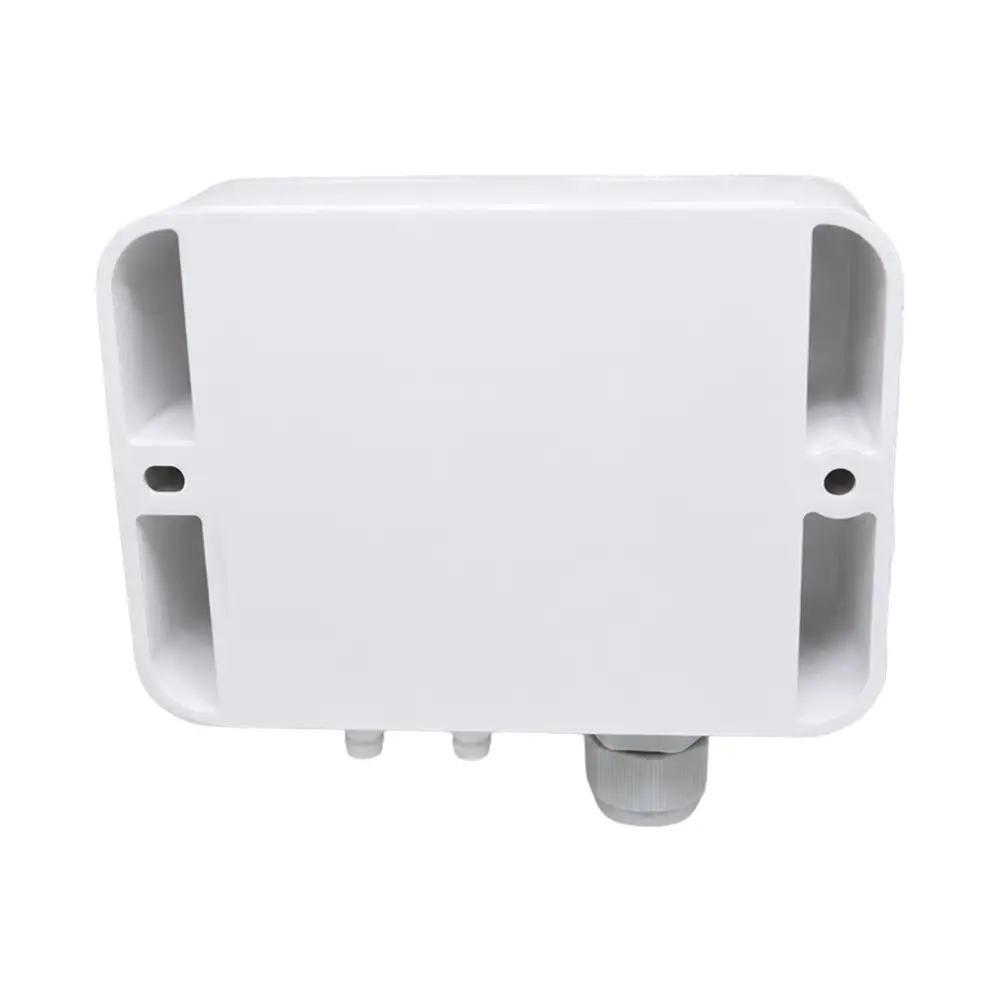

| Pressure Connection | via 2 Nos. hose nipples 5 mm at the bottom |
| Gland type | PG7 cable gland entry |
| Response Time | 250 ms (miliiseconds) |
| Stability | Maximum <± 2% over 10 year period |
| Protection Circuitry | Reverse voltage protected and output limited |
| Thermal Effects | <±3% over compensated range |
| Wiring Connection | Screw Terminal Block |
| Power Supply | 24 VDC +/- 10% |
| Operating Conditions | -5 to +65 degrees Celsius |
| Enclosure | Wall mounting type ABS plastic enclosure, IP52 rated |
| Dimensions | 100(W) x 70(H) x 30(D)mm |
| Supply Scope | 1 Unit of Differential Pressure Transmitte, Instruction Manual & Calibration Certificate |
| Calibration Certificate | Provided at no extra cost, traceable to National/International Standards, Valid for 1 year only |
| Weight | Approx. 350g |
| Warranty | 18 months manufacturer warranty |
| Manufacturer | Ace Instruments |
