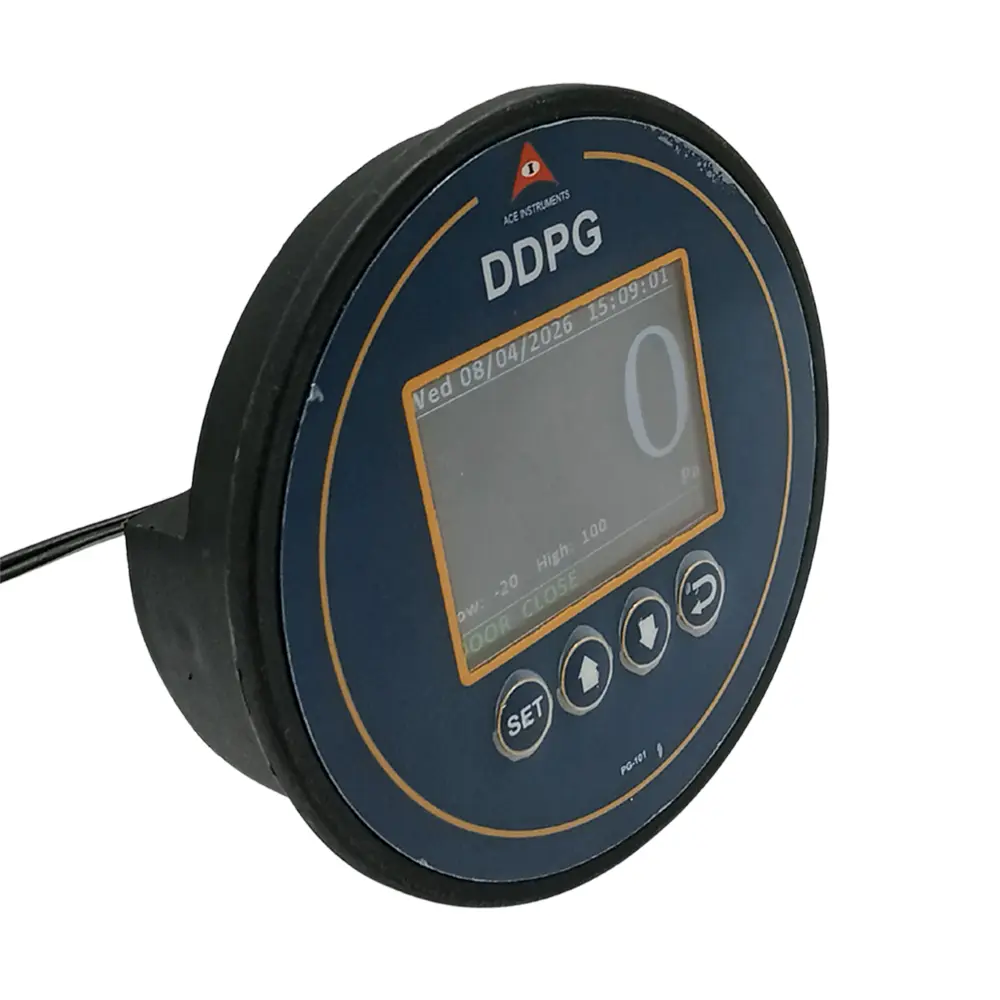

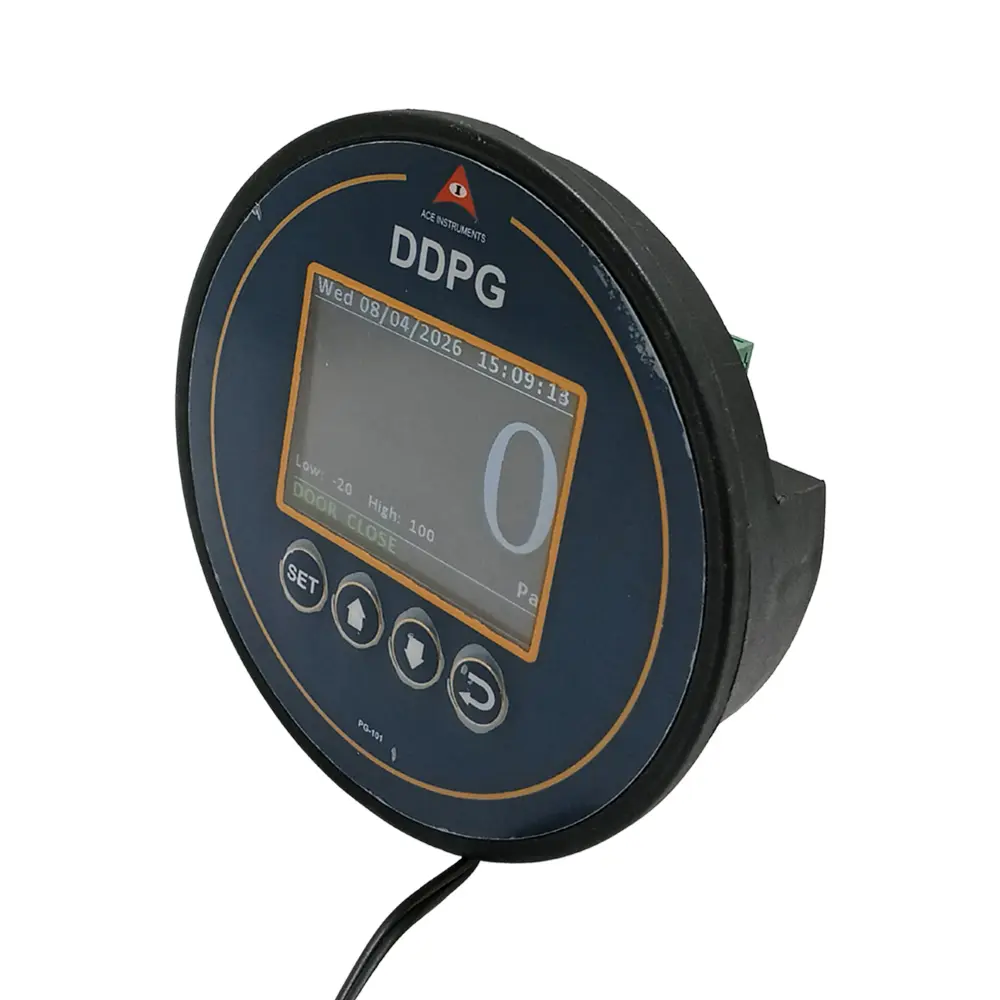

Digital Cleanroom Differential Pressure Monitor is engineered for accurate Differential Pressure Monitor applications in cleanrooms, laboratories, hospitals, and pharmaceutical facilities. Designed as a reliable Room Pressure Monitor, it delivers real-time pressure readings on a bright TFT display to help maintain controlled environments. Acting as a precise Differential Pressure Indicator, it features a built-in buzzer alarm for instant setpoint alerts and supports Modbus RS-485 communication for seamless integration with BMS, PLC, and SCADA systems, ensuring efficient, safe, and continuous pressure monitoring.
Application: Laminar Air Flow Cabinets, Biosafety Cabinets, AHU, Clean Rooms, Laminar Air Flow Cabinets, Hospitals, ICU, etc.

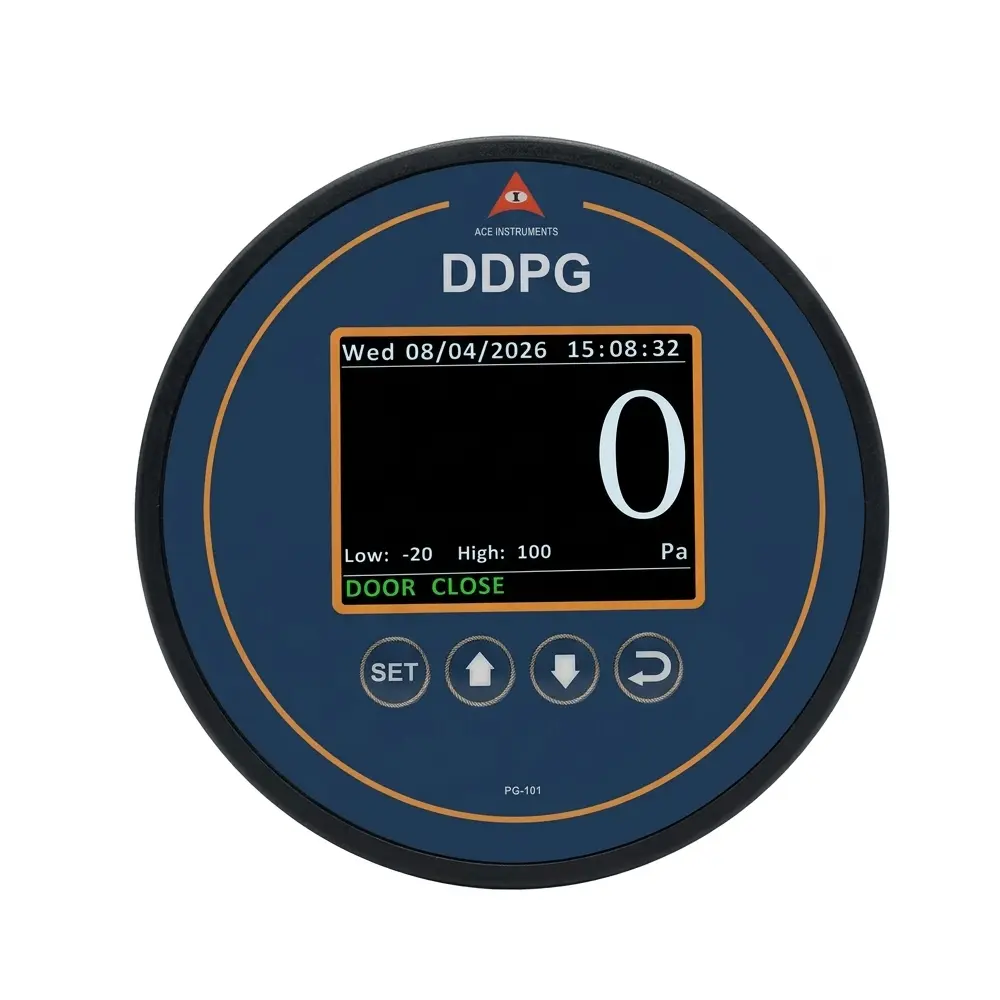

Digital Cleanroom Differential Pressure Monitor is designed to measure room pressure in pharmaceutical clean rooms, isolation rooms, and Hospital Operating Theaters. It features a bright TFT screen that shows clear, real-time pressure readings. The gauge offers high accuracy of ±0.5% on the full scale and supports continuous data transmission for easy monitoring and control. It helps with Real-Time Monitoring and maintaining proper air pressure between rooms to ensure cleanliness, safety, and compliance with health standards.
| Model No | AI-DDPG |
|---|---|
| Measuring Parameters | Differential Pressure |
| Select Pressure Range | -10.0 to +10.0 mm.w.c / -100 to +100 Pascals, -50.0 to 50.0 mm.w.c/-500 to +500 pascals, 0.0 to 10.0 mm.w.c / 0 to 100 Pascals, 0.0 to 100.0 mm.w.c / 0 to 1000 Pascals, 0.0 to 25.0 mm.w.c / 0 to 250 Pascals, 0.0 to 50.0 mm.w.c / 0 to 500 Pascals |
| Options | Standard, WITH 4-20 mA O/P, WITH 4-20 mA O/P & RS485 COM |
| Range | All Ranges are avaliable, Please select from drop down mentioned above |
| Accuracy | +/-0.5% of Full Scale |
| Resolution_1 | 1 Pascal (Pa) / 0.1 mmWC ) / inWC |
| Display | Integrated 4 Digit Red LED 7 Segment Display 0.5” |
| Maximum Over Pressure | 2 Times the rated pressure |
| Sensors | integrated Piezoresistive high speed differential pressure sensor |
| Communication | with 4-20mA & RS485 COM, with 4-20mA O/P |
| Medium | Air or Gases ( Non Corrosive ) |

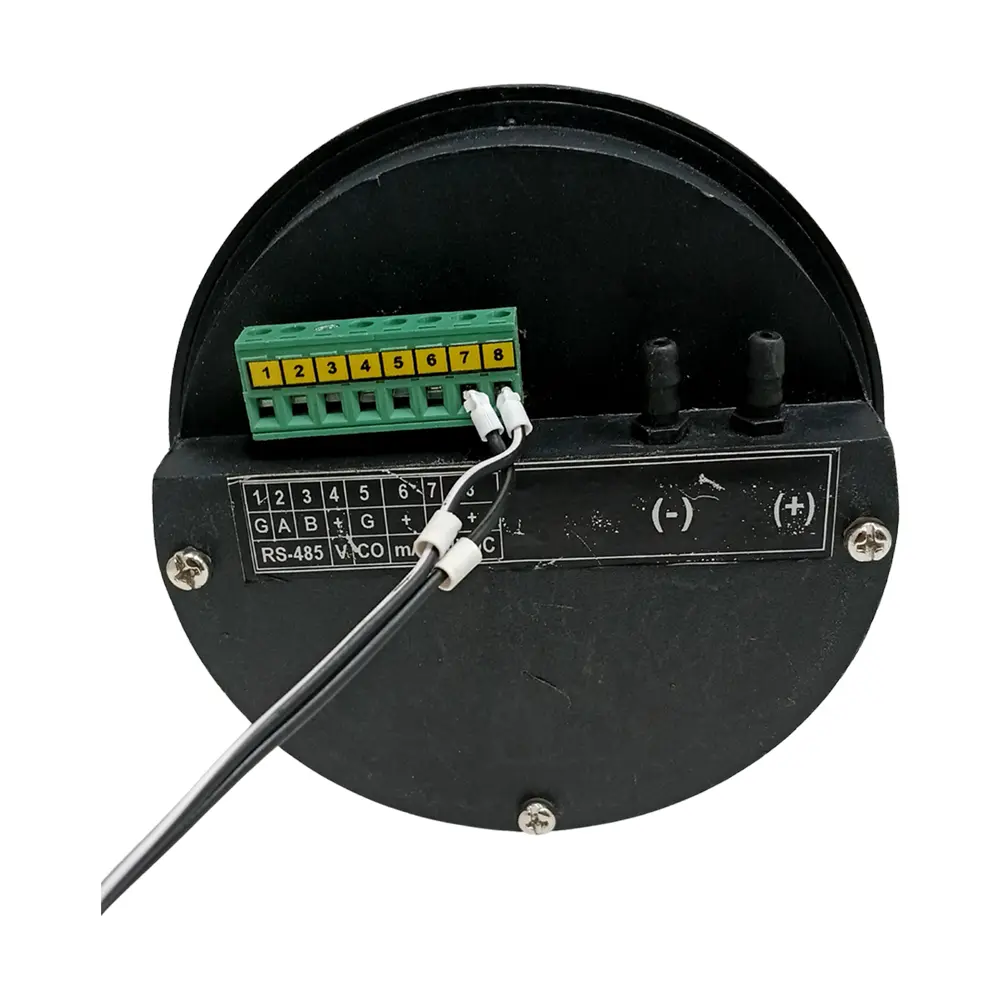

| Connection | 2 Nos. Hose Nipples of 4mm. ABS Plastic at the back |
| Alarm Type | Built in Buzzer Alarm for Process Violation Alert |
| Construction | Matte Finish ABS Plastic Enclosure |
| Power Supply | 12-24VDC, by the way of 110-230 VAC, 50-60Hz Adaptor provided along with (Fits well in USA and European countries Also) |
| Size | Standard 4 ½'' (114.3mm.) Diameter, Depth : 30 mm. Can be easily replace with magnaheic® |
| Calibration | Will be provided at no extra cost valid for 1yr traceable to Nist or Electronic Test & Development Centre. |
| Supply Scope | 1 unit of DDPG, 12-24VDC Adapter, Silicon tube, Mounting screws, Instruction manual, Calibration certificate |
| Optional Accessories | With Out Wall Mounting Box, with Wall Mounting Box |
| Warranty | 1 Year Manufacturer Warranty |
| Domain | Clean Rooms, Hospital Operation Theatres, HVAC, Industries / Automobiles / Paint Booth, Pharmaceuticals |
| Weight | 180 Grams |
| Dimensions | 4½″ (114.3 mm) dial diameter × 30 mm depth. |
| Manufacturer | Ace Instruments |
