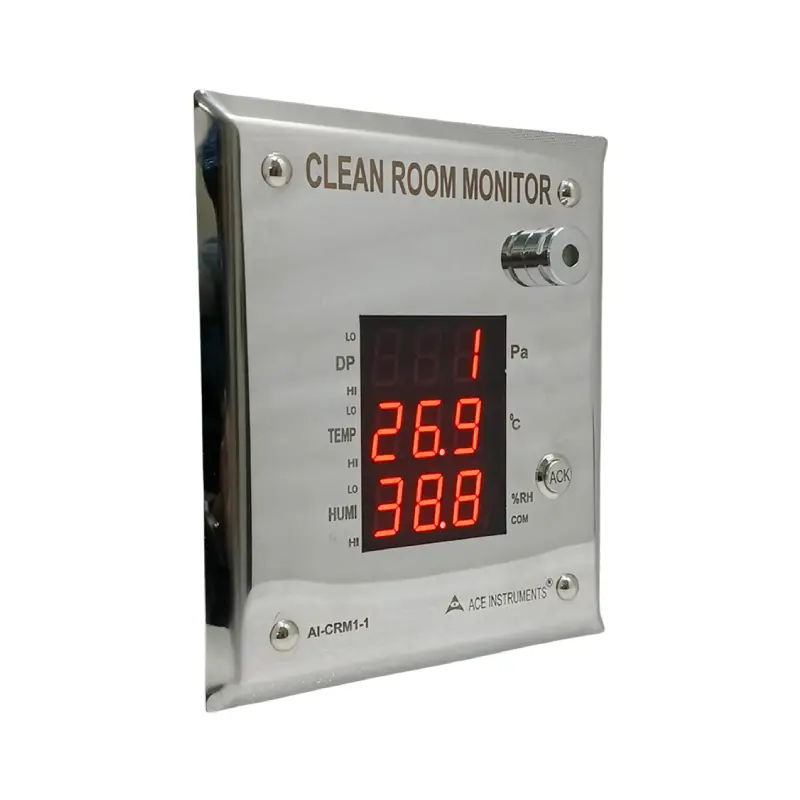

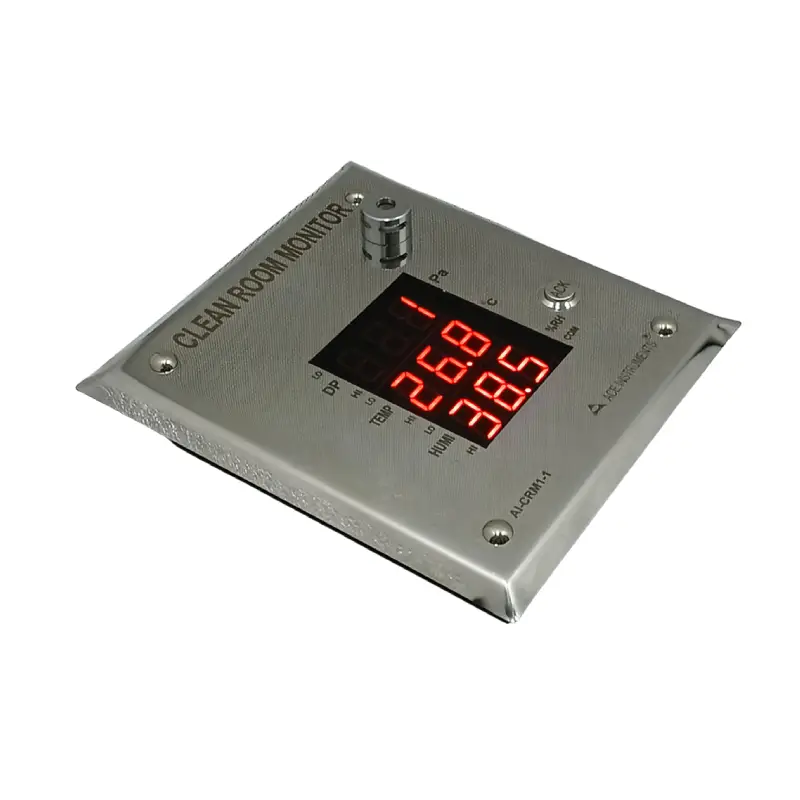

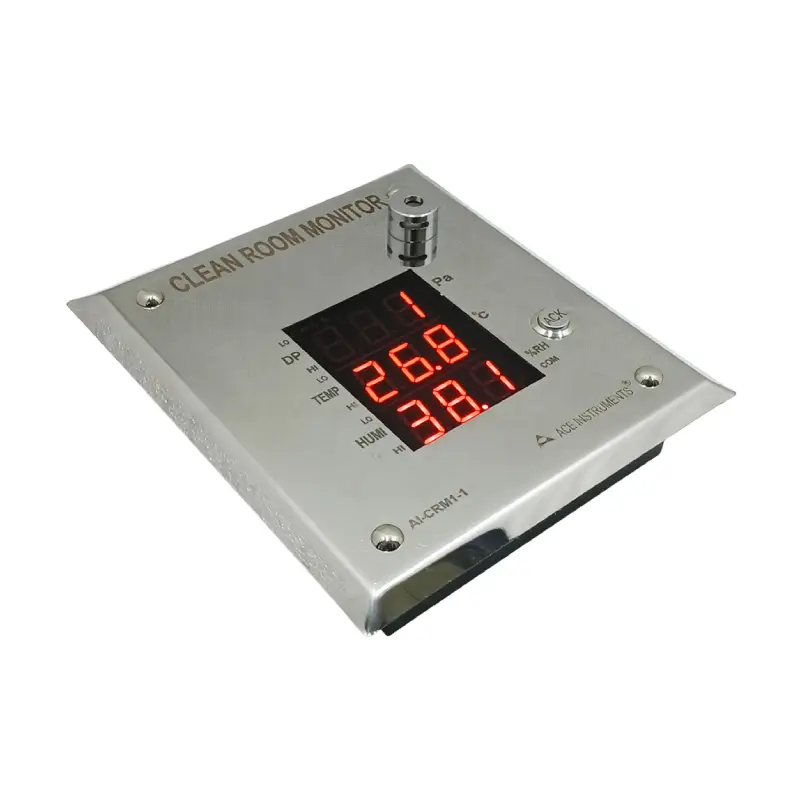

ACE Pharma Clean Room Monitor AI-CRM1-1 is a reliable Clean Room Monitor for pharmaceutical and controlled environments. This Differential Pressure Monitor measures temperature, humidity, and pressure differences with high accuracy. It helps maintain cleanroom conditions and supports regulatory compliance. The clear Differential Pressure Indicator provides real-time readings for quick action. Its flush-mount design reduces cabling and simplifies installation. Users can mount it on modular wall panels or brick walls. This monitor suits GMP-compliant cleanroom applications.
Applications: Pharmaceutical Clean Rooms, Laminar Air Flow Cabinets, Hospital OT rooms, Isolation rooms, Infection rooms, HVAC, Biosafety Cabinets, etc.

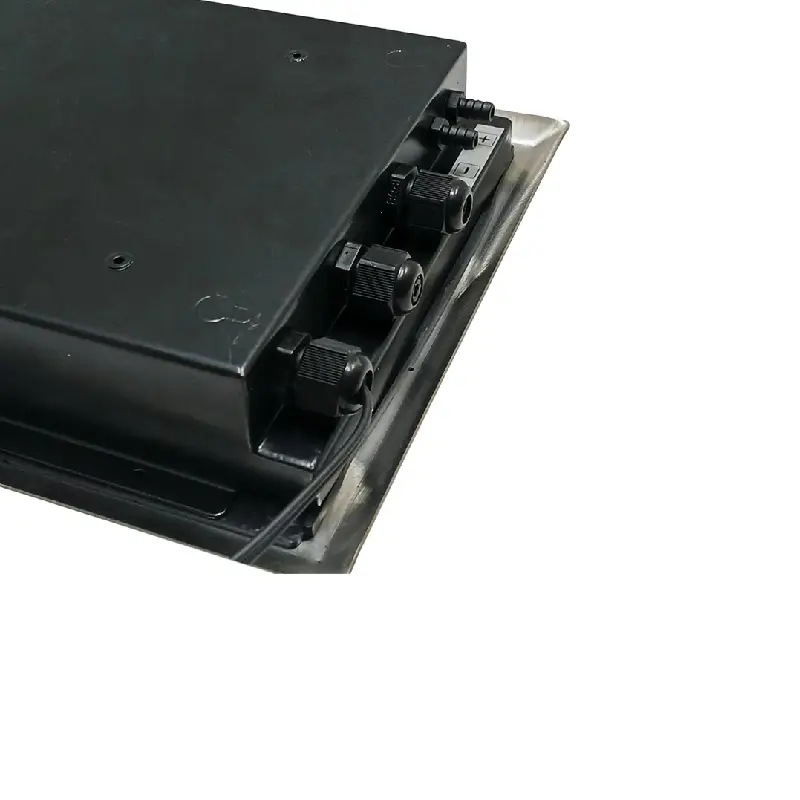

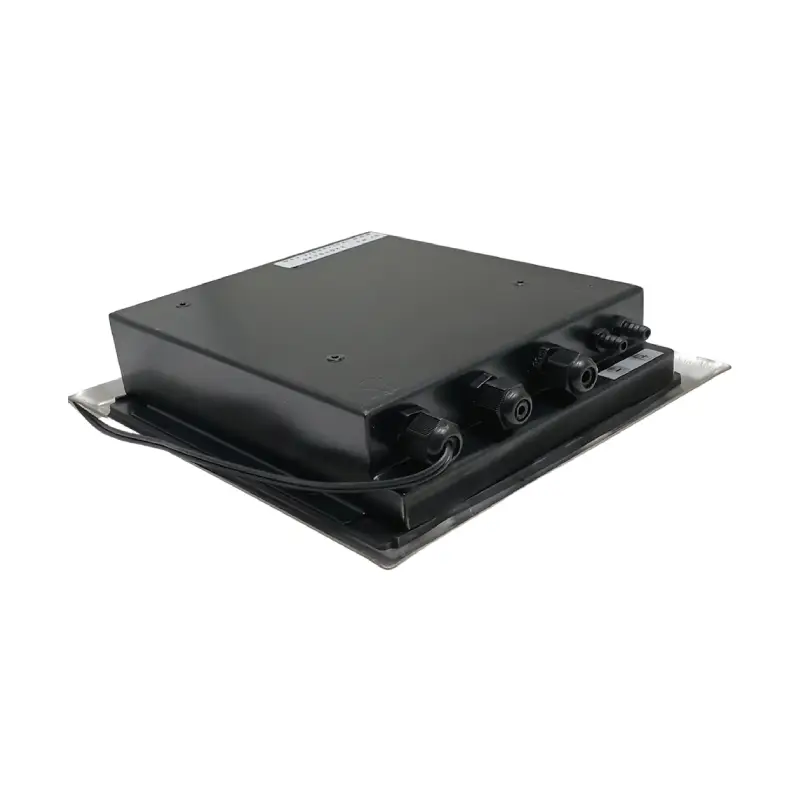

ACE Pharma Clean Room Monitor AI-CRM1-1 sensors for all 3 parameters are integrated inside for ease of use & installation. The combination humidity & temperature sensor is flush to the front stainless steel plate & the differential pressure is built-in with hose nipple connections at the rear for +ve & -ve pressure connections.
| Model No | AI-CRM1-1 (Internal Sensor) |
|---|---|
| Measuring Parameters | Differential Pressure, Temperature, Humidity |
| Differential Pressure Range | Please select range from above drop down |
| Resolution_1 | 0.1mm.W.C. or 1 Pascal |
| Temperature Range | 0.0 to 50.0 Deg. C |
| Resolution_3 | 0.1 °C |
| Humidity Range | 0.0 to 100.0 %RH |
| Accuracy | ±1.8% for 10 to 95% RH |
| Resolution_2 | 0.1 %RH |
| Sensor Type | Piezoresistive Sensor for Differential Pressure; Polymer sensing for Temperature; capacitive polymer sensing for Relative humidity |
| Sensor | Integrated Humidity & Temperature Sensor flushed to front plate Built-in differential pressure sensor with Brass Hose Nipples (Chrome Plated) for Differential Pressure At Rear (4mm x 2 Nos.) Optional External Humidity & Temperature Sensor (Please Contact Store) |
| Display | 3 Digits for % R.H. ( Humidity ) on Line 3, 3 Digits for Differential Pressure on Line 1, 3 Digits for Temperature ( Deg. C) on Line 2, 3 Line Red 7 Segment LED Display of height 8” |
| Differential Pressure Entry | 2 Nos. 4 mm. Hose Nipples at top |
| Setting | By 4 keys on the front stainless steel panel |
| Buzzer | Integrated Buzzer, Optional External buzzer available (Contact Store) |
| Power Supply | 12-24VDC, by the way of 110-230 VAC, 50-60Hz Adaptor provided along with (Fits well in USA and European countries Also) |

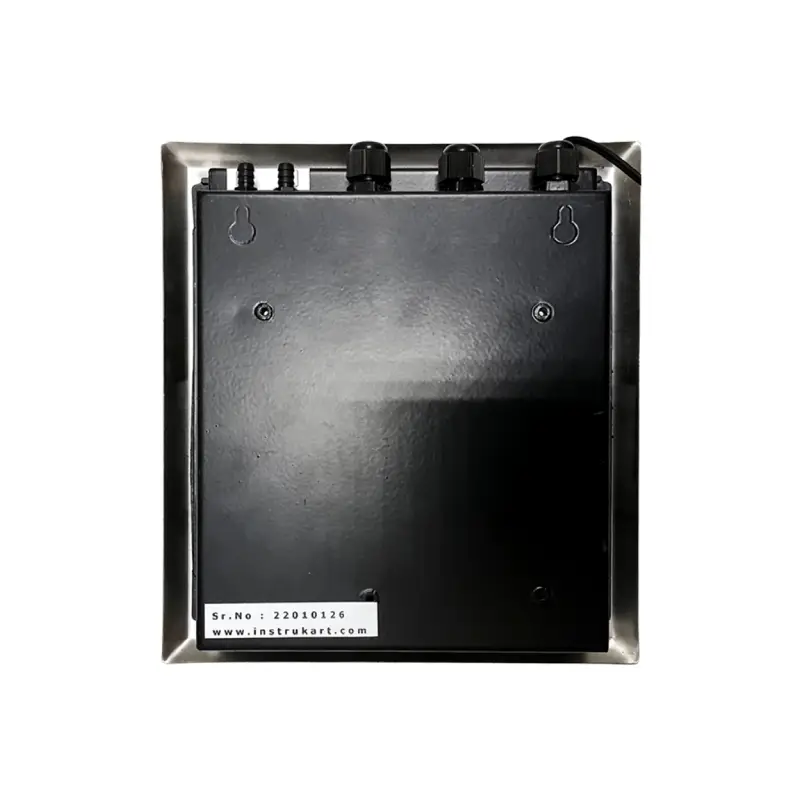

| Enclosure | MS Powder Coated Body with stainless steel front flush plate for modular wall mounting, optional concealed box brick wall mounting |
| Output | 4-20mA Output (Please select above dropdown) |
| Communication | RS 485 Modbus RTU Protocol communication for BMS / SCADA / PLC integration (Please select above dropdown) |
| Mounting | Wall mounting / Modular Wall mounting with Stainless Steel Front Flush Plate for Clean Rooms |
| Compliance | Multilevel password protection as per USFDA 21 CFR part 11 specification |
| Warranty | 1 Year Manufacturing Warranty |
| Calibration | Provided alongwith and valid for 1 year, traceable to National Standards. |
| Supply Scope | 1 Unit of CRM1-1 Clean Room Monitor, Power Adapter, Silicon Tube, Instruction Manual, and Factory Calibration Certificate |
| Weight | 600 Grams |
| Dimensions | MS Powdered Back Box :140 (W) x 150 (H) x 35 (D) mm, Stainless Steel Front Plate : 180 (w) x 200 (H) mm |
| Domain | Clean room environments, agriculture, HVAC operations, Clean Rooms, Cold Chain / Warehouse / Greenhouse, Pharmaceuticals |
| Select Output Type | 3 X 4 to 20mA, RS485 MODBUS |
| Select Range | 0 to 100 Pascals, 0.0 to 10.0 mm W.C / 0.39 in. W.C |
| Select Accessories | Wall Mount Hose Nipples, With out Wall Mount Hose Nipples |
| Manufacturer | Ace Instruments |
| Weight | 1.5 kg |
| Dimensions | Array |
