Clean Room Monitor ACE AI-CRM1-LCD is an intelligent cleanroom monitoring system designed for controlled environments, delivering real-time measurement and display of temperature, humidity, and particulate levels. Functioning as a reliable environmental monitoring system, it supports compliance with cleanroom standards through continuous oversight of critical conditions. Acting as a dependable particulate monitoring system, it features an integrated LCD for at-a-glance visibility and AI-assisted analysis for enhanced accuracy. Ideal for pharmaceutical, semiconductor, medical, and laboratory applications, it enables proactive environmental control, alarm management, and consistent operational performance.
Applications: Pharma Clean Rooms, Hospital Operation Theatre Rooms, Isolation Rooms, APIs, Bulk Drugs, Electronic Hardware Manufacturing Plants, Test Plants, Green Houses.

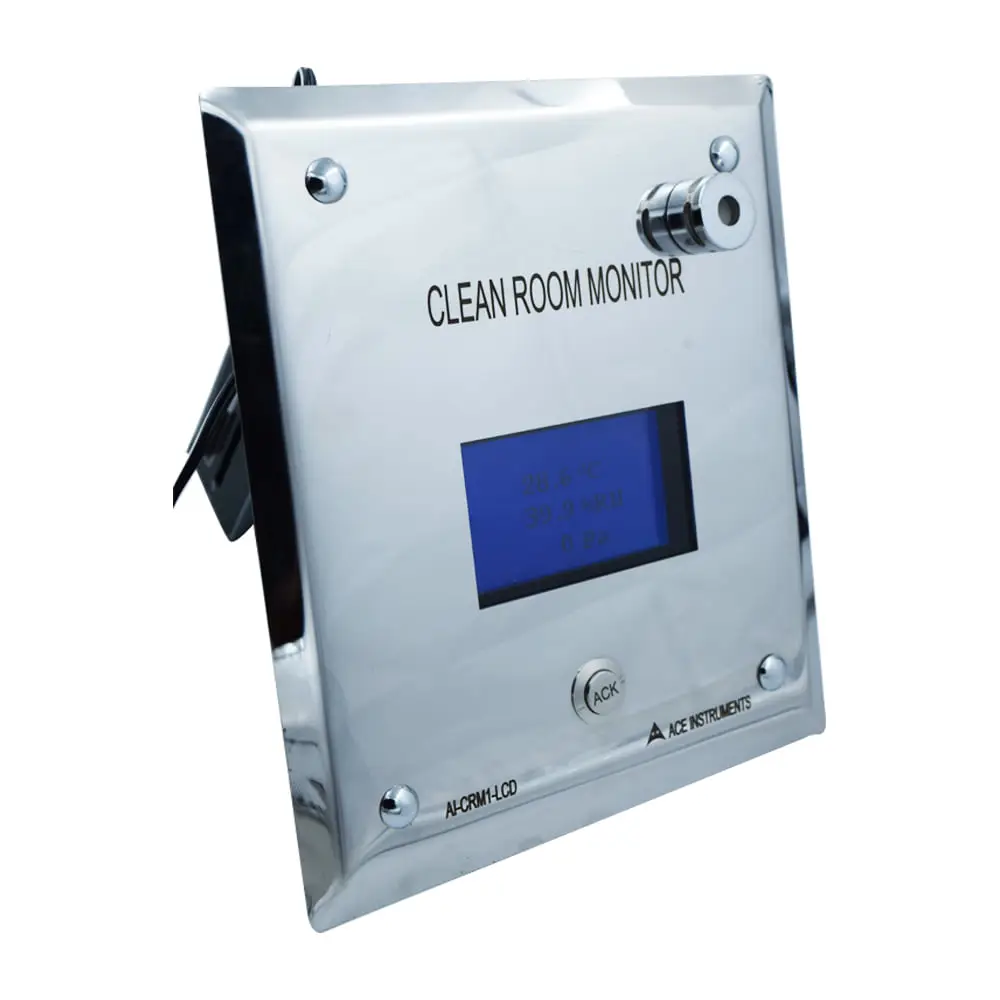

ACE AI-CRM1-LCD Clean Room Monitor is a reliable monitoring solution designed to measure and display temperature, humidity, and differential pressure with a clear backlit LCD display. It features alarm alerts, acknowledgment key, multi-level password protection, and secure configuration settings for accurate monitoring and compliance in pharmaceutical, API, bulk drug plants, and cleanroom applications.
| Model No | AI-CRM1-LCD (3 in 1) |
|---|---|
| Measuring Parameters | Differential Pressure, Relative Humidity, Temperature |
| Temperature Range | 0 to +500 C typical for Temperature |
| Temperature Accuracy | ± 0.20 C for 0 to 500 C for Temperature |
| Temperature Resolution | Fixed 0.1 for both Temperature & Relative Humidity, 0.1 mm.W.C |
| Humidity Range | 0 to 99.9%RH typical for Relative Humidity |
| Humidity Accuracy | ± 1.8% for 10 to 95% RH for Relative humidity |
| Humidity Resolution | Fixed 0.1 for both Temperature & Relative Humidity, 0.1 mm.W.C |
| Differential Pressure | 0 to 100 pascals / -50.0 to + 50.0 mm.W.C |
| Accuracy | 3) +/- 0.5% F.S. for Differential Pressure |
| Resolution | 1 pascals for Differential Pressure |

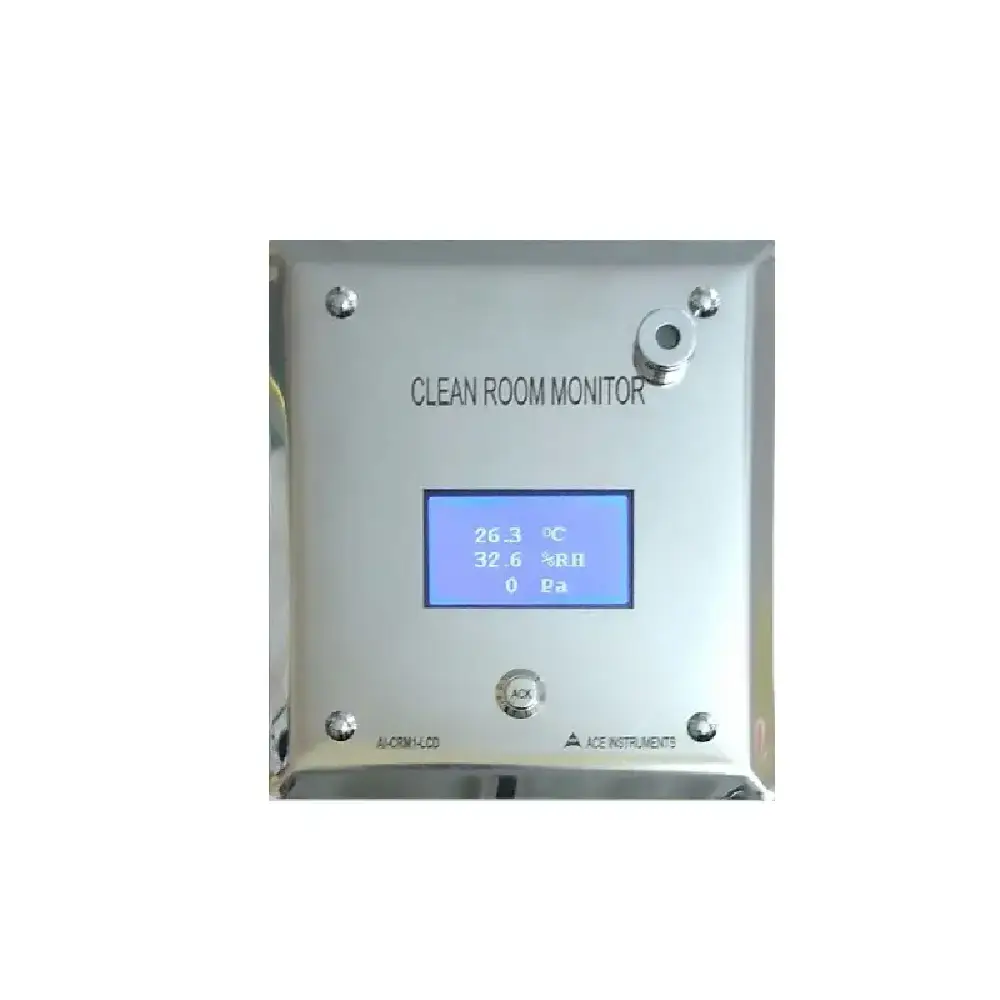

| Display | Multi row Graphic LCD Display 128 X 64 Blue Backlight with White Digits Individual Parameter Engineering Unit. |

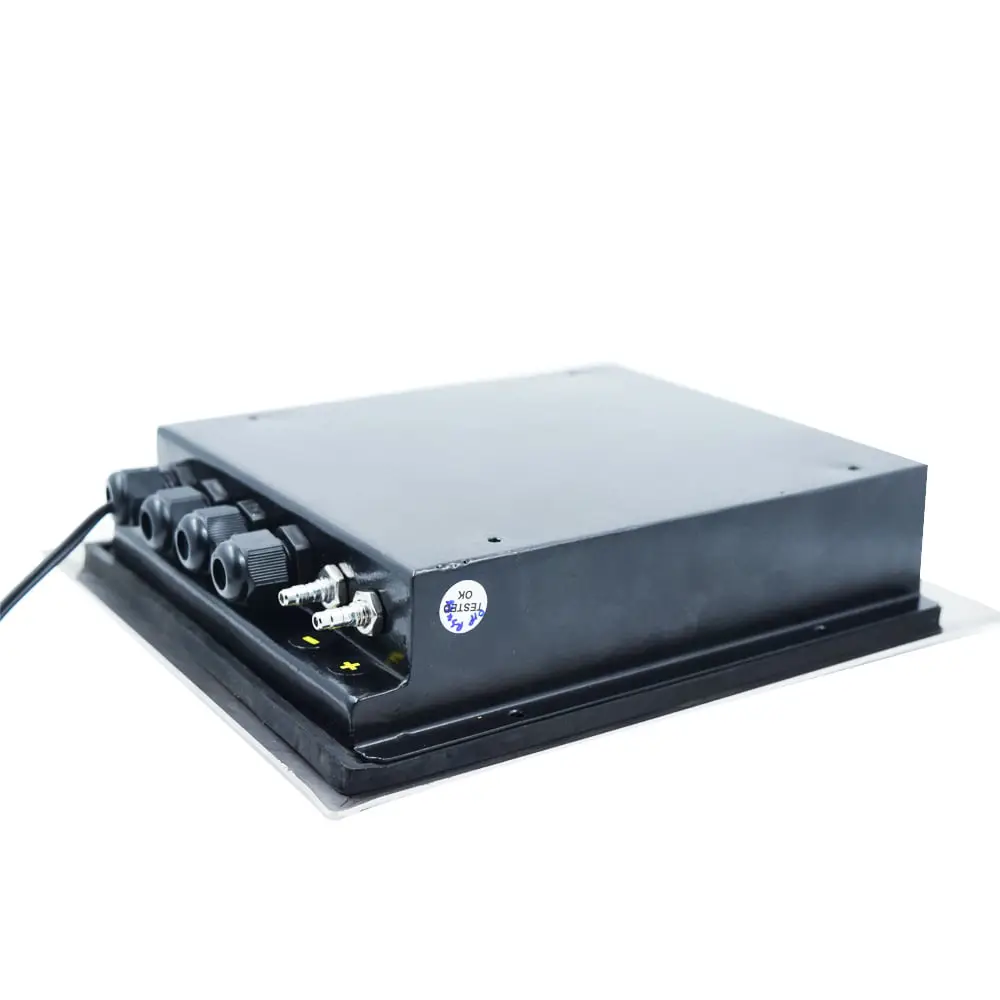

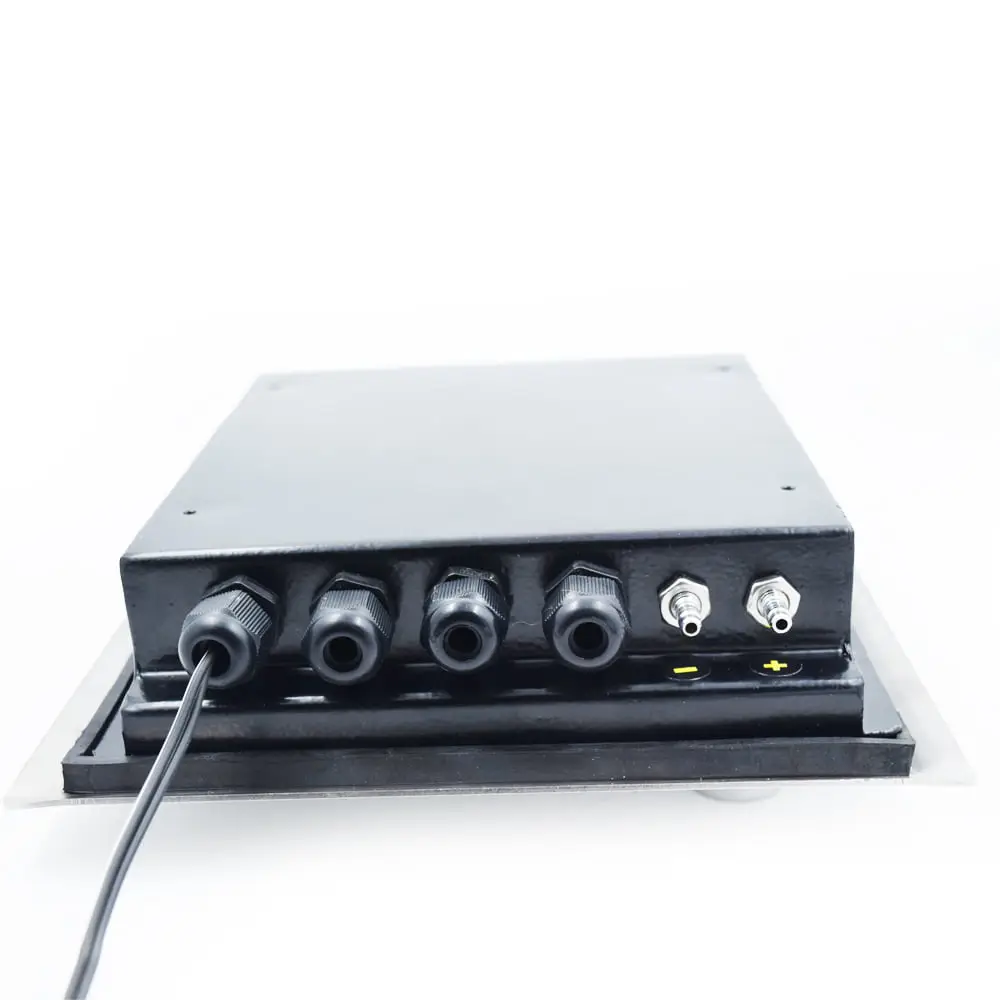

| Differential Pressure Entry | 2 Nos. 4 mm. Hose Nipples at top of clean room monitor enclosure |
| Supply Voltage | 24V DC, 250mA |
| Buzzer | Integrated Buzzer, Optional External buzzer available (Contact Store) |

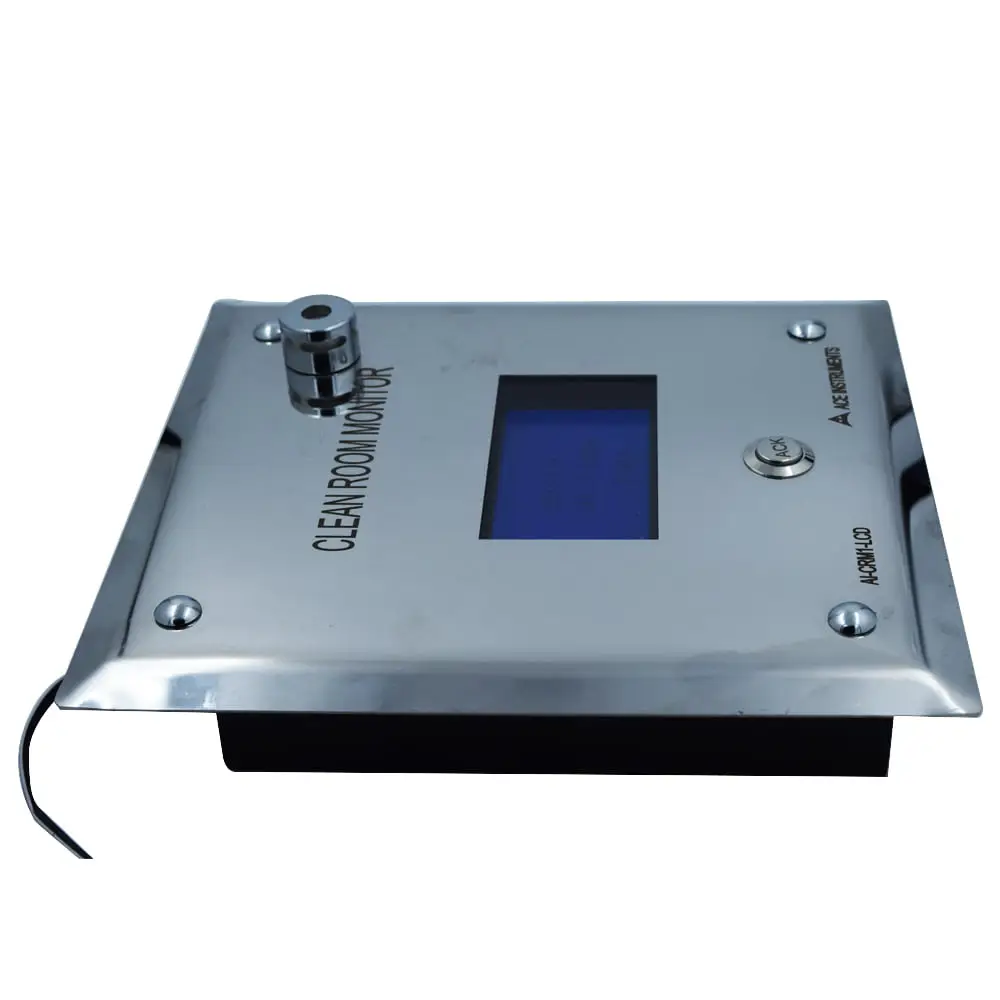

| Mounting | Wall mounting / Modular Wall Mounting with Stainless Steel Front Flush Plate |
| Enclosure | MS Powder Coated Body with stainless steel front flush plate for modular wall mounting, Optional concealed box brick wall mounting(Contact store) |
| Supply Scope | 1 Unit of Clean Room Monitor, 1 unit of Power Adaptor, Silicon Tube, Instruction Manual and Calibration Certificate |
| Select Output Type | 3 X 4 to 20mA, RS485 MODBUS |
| Domain | Clean room environments, agriculture, HVAC operations, Pharmaceuticals |
| Calibration | Will provided at no extra cost traceable to National/International Standards Valid for 1 year |
| Warranty | 1 Year Manufacturer Warranty |
| Weight | 975 Grams |
| Dimension | M.S. Back Box : 140(W) x 155(H) x 35(D) mm. Stainless Steel Front Plate : 180(W) x 200 (H) mm |
| Manufacturer | Ace Instruments |
| Weight | 1.5 kg |
| Dimensions | Array |
| SKU / Model | S-1194 |
