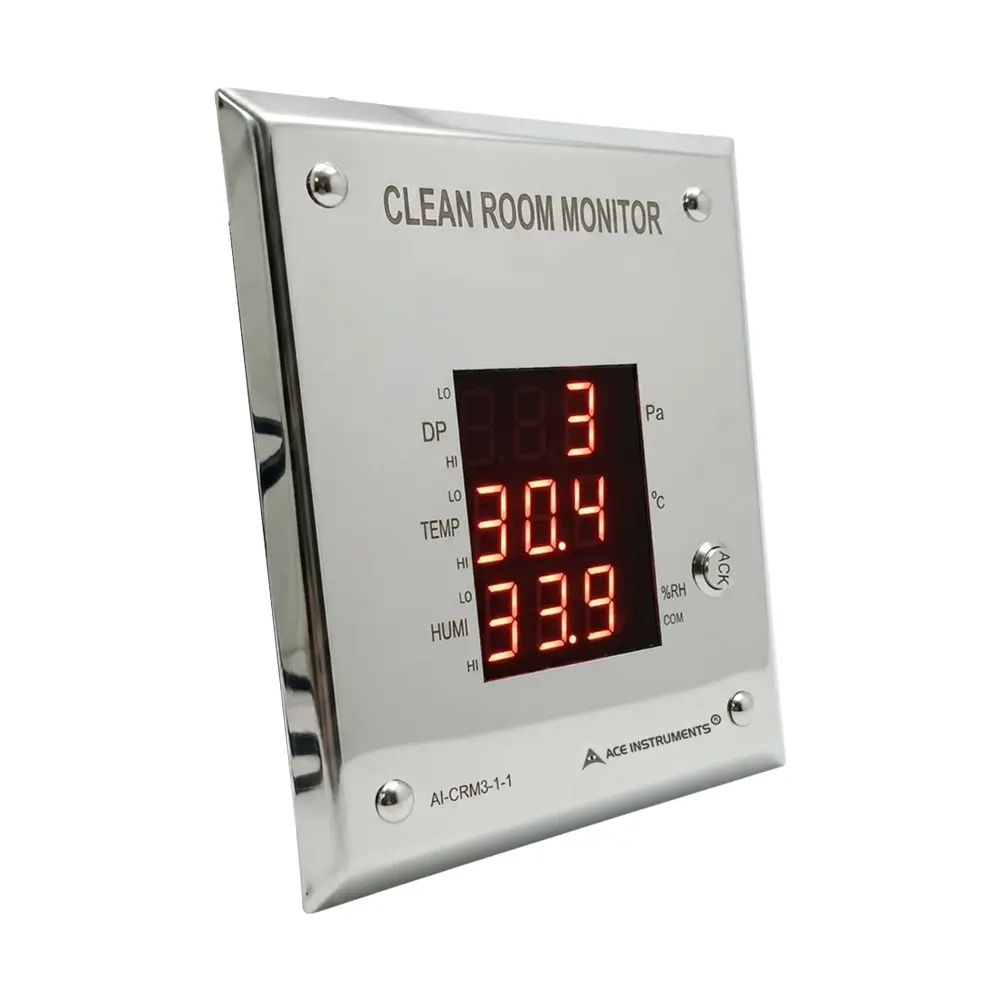

Cleanroom Air Quality & Environmental Monitor AI-CRM 3-1-1 simplifies cleanroom monitoring by measuring essential parameters as a reliable temperature humidity pressure monitor for critical environments. Designed for minimal cabling and easy flush mounting, this cleanroom wall monitor seamlessly integrates into both modular and brick cleanroom walls. Functioning as a dependable cleanroom air quality monitor, it ensures accurate, real-time tracking of environmental conditions. As a complete cleanroom air quality system, it supports compliance, safety, and consistent performance across pharmaceutical, laboratory, and other controlled environments.
Applications: Medical Labs, Pharma Labs, Green Houses, Hospitals Operation Theatre
Cleanroom Air Quality & Environmental Monitor AI-CRM 3-1-1 for Humidity &Temperature is externally provided, allowing it to be installed inside the operation theatre while the display panel can be mounted outside. This Pharma Clean Room Monitor features a large 0.8” high-brightness display with an integrated buzzer that provides alerts for process limit violations across all three critical parameters: Temperature, Humidity, and Differential Pressure. Additionally, status LEDs on the display clearly indicate alarm conditions, enabling quick identification and prompt corrective action
RS-485 Communication with Modbus RTU Protocol for seamless integration
High-Brightness LED Display for clear visibility in cleanroom environments
Integrated Buzzer Alarm to indicate process limit violations
Visual Alarm Indicators via LED display for immediate status recognition
Monitored Parameters: Temperature, Humidity, and Differential Pressure
| Model No | AI-CRM3-1-1 |
|---|---|
| Range | 0.0 to +50.0°C.Deg. C typical for Temperature 2) 0.0 to 100.0 %RH typical for Relative humidity 3) 0.0 to +25.0 mm. W.C./ 0 to 250 Pascals (Any other customized range as per user specifications) |
| Accuracy | 1) ± 0.5 Deg.C for -30 to 50 Deg.C for Temperature 2) ± 1.8% for 10 to 95% RH for Relative humidity 3) ± 0.5% F.S. for Differential Pressure |
| Resolution_1 | Fixed 0.1 for both Temperature & Relative humidity, 0.1 mm. W.C. or 1 pascal for different pressure |
| Display | 3 Line Red 7 Segment LED Display ; 4 Digits for Differential Pressure on Line 1 ; 4 Digits for Temperature ( Deg. C) on Line 2 ; 4 Digits for % R.H. ( Humidity ) on Line 3 All Digit Size: 1 Inch |
| Differential Pressure Entry | 2 Hose Nipples of 4mm size at top of clean room monitor enclosure |
| Sensors | 1) External Humidity & Temperature Sensor in Stainless Steel Front Flush Plate Enclosure 2) Built-in differential pressure sensor with Brass Hose Nipples (Chrome Plated) for Differential Pressure |
| Supply Voltage | 24VDC , 500mA |
| Enclosure | M.S. Powder Coated Body with Stainless Steel Front Flush Plate for Modular Wall Mounting /Optional Brick Wall Mounting |
| Communication | RS 485 Modbus RTU Protocol |
| Sensor Type | With External Sensor |
| Buzzer | Integrated buzzer for Alarm Hi & Lo in case of process violation of any of the 3 parameters |
| Setting | By 4 keys on the front stainless steel panel |
| Mounting | Wall mounting / Modular Wall mounting with Stainless Steel Front Flush Plate for Clean Rooms |
| Warranty | 1 Year Manufacturing Warranty |
| Dimensions | Enclosure: 110 X 150 X 30 mm, Stainless Steel Front Plate : 180 (w) x 200 (H) mm |
| Domain | Hospital Operation Theatres, HVAC, Offices / Homes, Pharmaceuticals |
| Weight | 700 Grams |
| Select Output Type | 3 X 4 to 20mA, RS485 MODBUS |
| Manufacturer | Ace Instruments |
| Weight | 1.2 kg |
