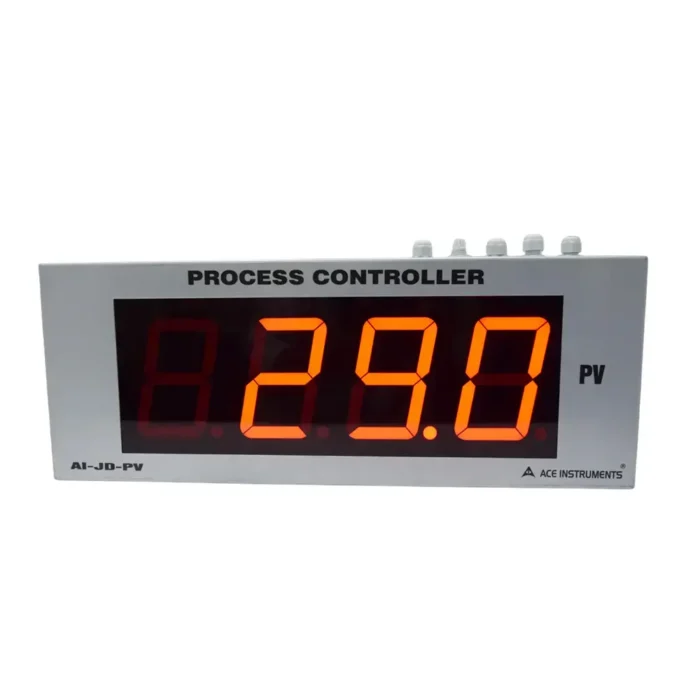

Jumbo Display Process Controller AI-JD-PV is a reliable Digital Process Controller designed for clear monitoring of temperature, pressure, flow, level, dew point, and other process parameters. This Jumbo Display Process Controller features a large 4-inch LED display for easy viewing from a distance. As a Process Display Controller and Digital Process Indicator, it supports 4–20 mA, 0–10 V, and Pt-100 inputs for use with different sensors and transmitters. It is suitable for production areas, HVAC systems, pharmaceutical facilities, food processing, laboratories, and utilities. The wall-mounted design includes dual relay outputs, with optional RS-485 Modbus and 4–20 mA retransmission for system integration.
Applications: Process indication, Plastics molding/extrusion monitoring, Chillers, Water heating boilers, Oven Control, Pressure/ Level/ Flow Monitoring.
Jumbo large display process controller AI-JD-PV is designed for clear and reliable monitoring of important process parameters in industrial environments. Featuring a large 4-inch LED display, it provides excellent visibility of process readings from a distance, making it convenient for continuous monitoring.
AI-JD-PV is a versatile Large Display Process Controller that supports 4–20 mA, 0–10 V, and Pt-100 RTD inputs. It can be used for monitoring temperature, pressure, level, flow, dew point, and other process parameters. 4-20 mA Process Controller and 0-10 V Process Controller input options allow flexible connection with compatible sensors and transmitters. With its bright 4 inch LED process controller display, users can quickly view process values in industrial areas. The controller features dual relay outputs for process control, while optional RS-485 Modbus communication allows integration with BMS and SCADA systems.
| Model No | AI-JD-PV |
|---|---|
| Display Size | 4 Inch |
| Input Type | 4–20 mA, 0–10 V, RTD Pt-100 |
| Communication | Optional RS 485 Modbus Protocol Communication for BMS/SCADA |
| Relay Rating | 230 VAC / 6 A |
| Retransmission Output | Optional 4–20 mA |
| Enclosure | Wall Mountable Powder Coated M.S. |
| Dimensions | 535(L) X 255(H) X 70(D) |
| Power Supply | Standard 230 V.A.C., 50 Hz. / Optional 24 VDC |
| Supply Scope | 1 Unit of Process Controller with Instruction Manual & Calibration Certificate |
| Calibration Certificate | Provided at no extra cost, traceable to National/International Standards, Valid for 1 year only |
| Warranty | 1 Year Manufacturing Warranty |
| Manufacturer | Ace Instruments |
| Dimensions | Array |
| SKU / Model | S-0098 |
