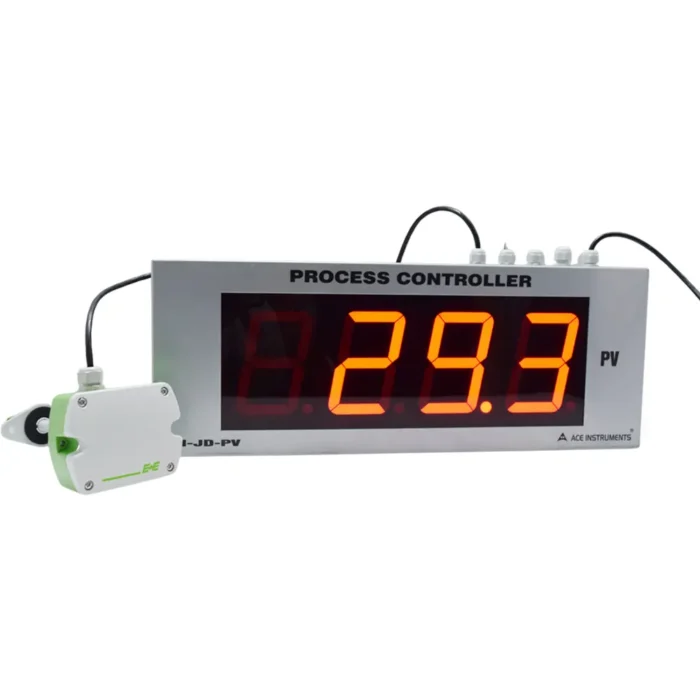

Jumbo Display Process Controller with Air Velocity Transmitter

Excl. VAT · Price in AED

Jumbo Display Process Controller with Air Velocity Transmitter provides accurate airflow monitoring with an integrated Air Velocity Sensor and large 4-digit LED display. This Process Controller supports 4–20 mA output and optional RS-485 Modbus for BMS and SCADA integration. The Jumbo Display Controller and Airflow Monitor provide clear real-time airflow readings and reliable continuous monitoring.

Applications: Laboratories, Indoor air quality, HVAC, Air handling units (AHU), Warehouses and storage facilities, building ventilation monitoring, Pharmaceutical.

In Stock

🔒 Secure Checkout

✅ Genuine Products

Jumbo Display Process Controller with Air Velocity Transmitter is designed for continuous and reliable airflow monitoring in demanding industrial environments. It combines an accurate air velocity sensor with a highly visible jumbo LED display, allowing operators to monitor airflow readings clearly from a distance. The controller provides real-time measurement for ventilation and process monitoring. It is suitable for HVAC systems, cleanrooms, laboratories, and production areas. Flexible signal outputs and communication options allow easy integration with modern building and process management systems for efficient monitoring and control.

Features Of Jumbo Display Process Controller with Air Velocity Transmitter :

Jumbo LED Display for clear long-distance visibility
Accurate Air Velocity Measurement for reliable airflow monitoring
Real-Time Readings for continuous process observation
Fast Response Time for quick detection of airflow changes
Continuous 24/7 Monitoring for demanding applications
Flexible Signal Outputs for easy system integration
Industrial-Grade Construction for reliable long-term operation
Easy Installation and Operation for convenient everyday use
Supports Efficient Airflow Control in ventilation systems
Suitable for HVAC, Cleanrooms, Laboratories and Industrial Areas

Model No	AI-JD-PV-AVT
Measuring Parameters	Air Velocity
Sensor	Air Velocity Sensor (EE650)
Measuring Range	0 to 10m/s (0 to 2000 ft/min), 0 to 15m/s (0 to 3000 ft/min), 0 to 20m/s (0 to 4000 ft/min) (factory setting)
Storage Temperature	-30°C to 60°C
Humidity Range	5 to 95% RH
Response Time	<4 sec
Electrical Connection	Screw terminals, 1.5 mm²
Electromagnetic compatibility	EN61326-1
Material	Polycarbonate
Protection class	IP65
Controller	Air Velocity Process Controller
Display	4 Digit 7 Segment LED Display of Height 4"
Excitation Voltage	Optional: 24V.D.C., 50mA Built In Supply for transmitter
Input	Analog 4-20 mA Or 0-10V from Sensor
Control Output	2 Relays NO/C/NC rated 230V/6 А
Communication	Optional RS 485 Modbus Protocol Communication for BMS/SCADA
Retransmission	Optional: 4-20 mA Retransmission
Enclosure	Wall Mountable Powder Coated M.S
Dimensions	535(L) X 255(H) X 70(D) mm
Weight	2.5 kg approx
Power Supply	Standard 110V to 230 V.A.C, 50-60 Hz./Optional 24 VDC
Supply Scope	1 Unit of Process Controller with Air Velocity Transmitter, Instruction Manual & Calibration Certificate
Calibration Certificate	Provided at no extra cost, traceable to National/International Standards. Valid for 1 year only
Warranty	1 Year Manufacturing Warranty
Manufacturer	Ace Instruments
Dimensions	Array

DS_Jumbo-Display-Process-Controller-with-Air-Velocity-Transmitter_Ver1.0.pdf (3 MB)
