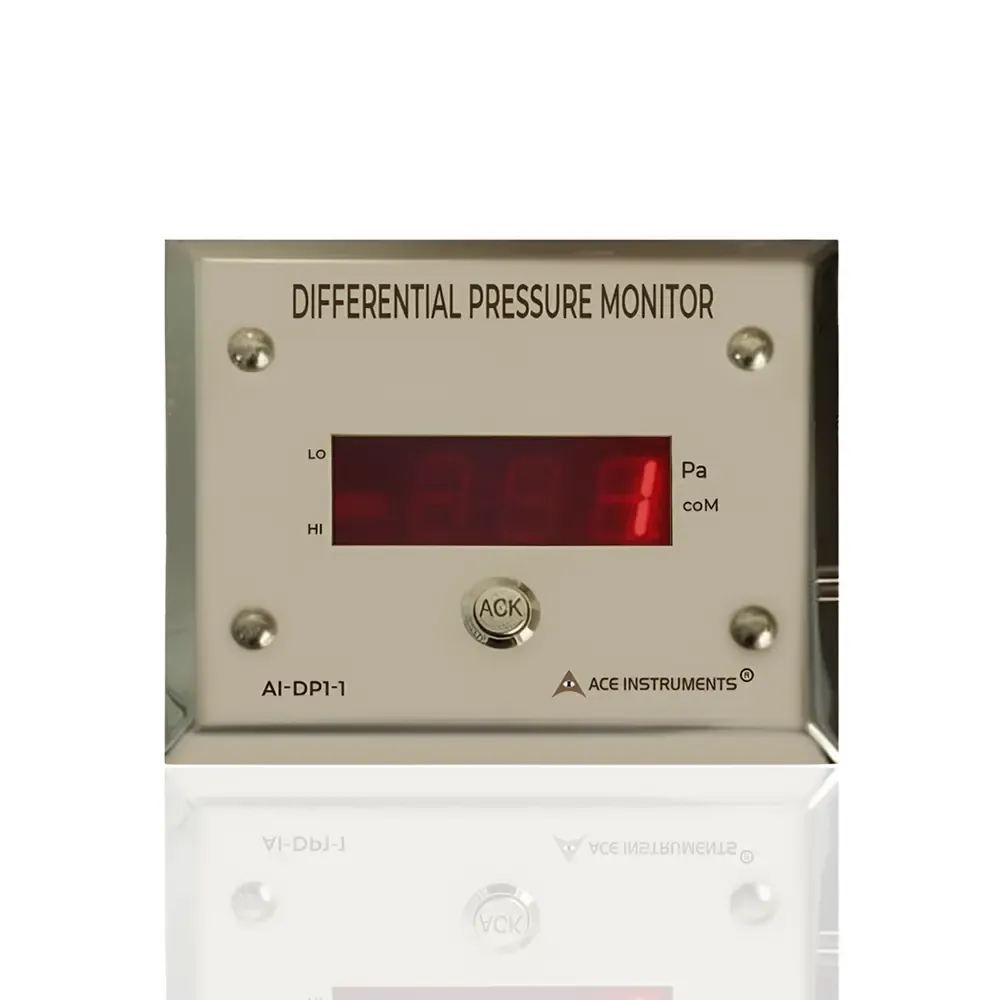

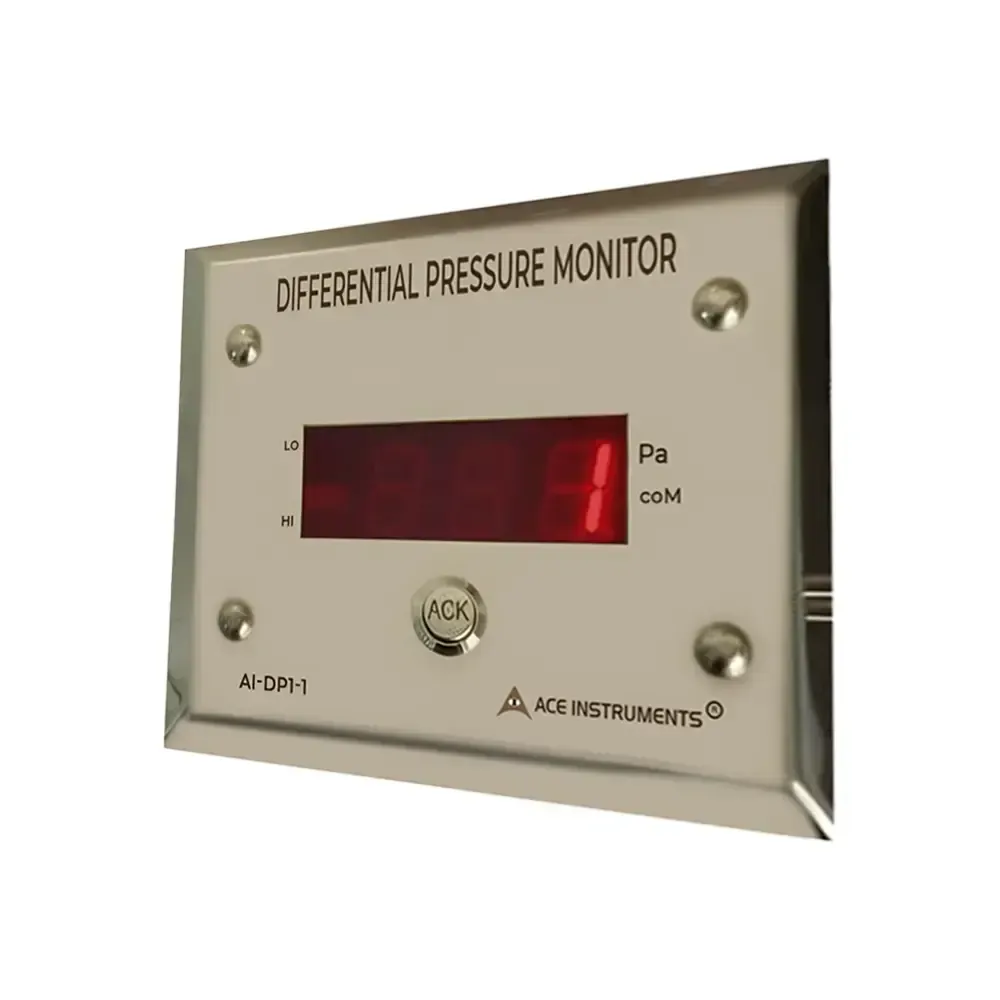

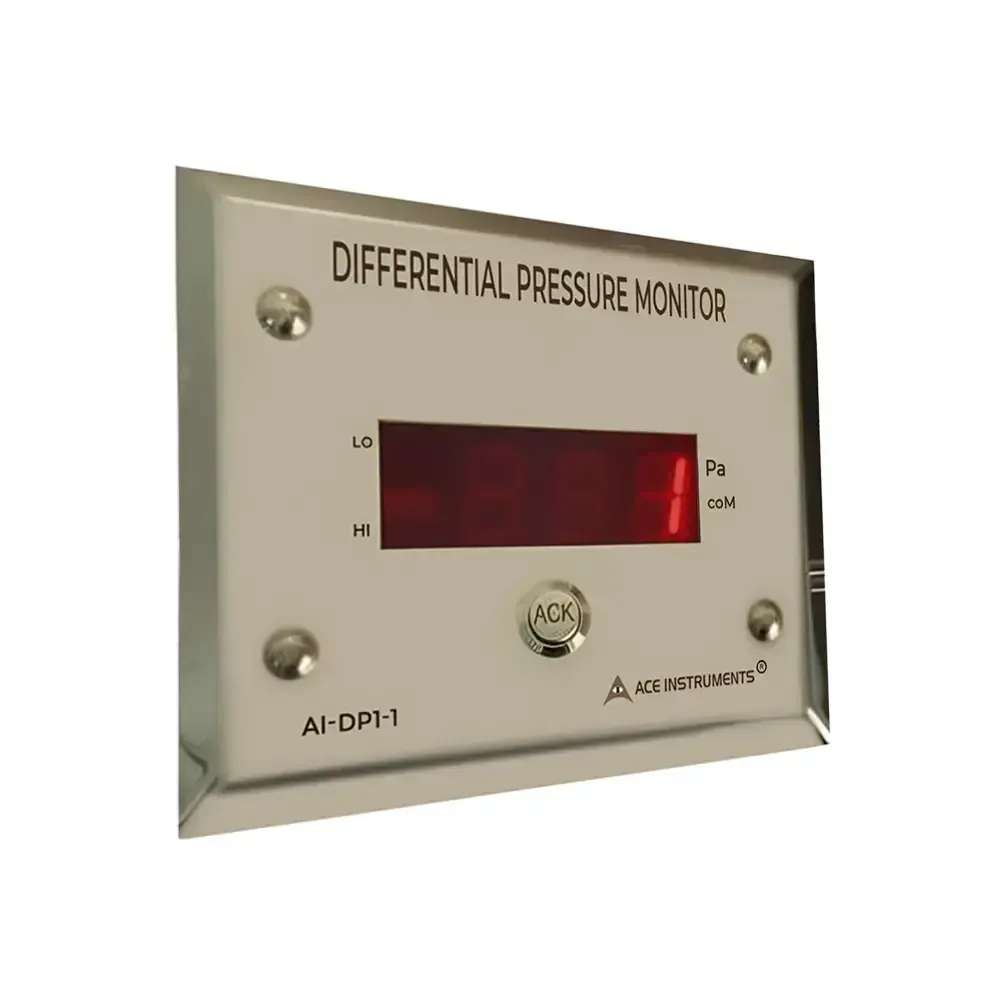

Differential Pressure Indicator AI-DP1-1 is a reliable instrument designed to provide live differential pressure readings on a bright LED display. This Differential Pressure Gauge supports positive or negative pressure measurement, with selectable ranges and customizable units such as Pa and mm.W.C. The Digital Pressure Monitor features a built-in sensor, programmable HI and LO buzzer alarms, and LED indicators for clear alert identification. The HVAC Differential Pressure Monitor supports flush mounting for convenient installation and provides accurate, easy-to-read pressure monitoring.
Applications: Laminar air flow cabinets · Cleanrooms · Operation theatres and isolation rooms · Biosafety cabinets · AHU and filter monitoring · Food processing
Differential Pressure Indicator AI-DP1-1 is a differential pressure monitoring solution designed for accurate room differential pressure measurement in cleanrooms, laboratories and industrial environments. Equipped with a high-precision differential pressure sensor, it delivers reliable real-time readings on a clear LED display.
The AI-DP1-1 supports RS485 Modbus communication and optional 4 to 20 mA output for integration with BMS, SCADA and PLC systems, enabling effective pressure monitoring, process control and compliance with critical environmental standards.
| Model No | AI-DP1-1-LED |
|---|---|
| Measuring Parameters | Differential Pressure |
| Select Range | -10.0to + 10.0 mm.W.C, -25.0 to +25.0 mm.W.C., -50.0 to +50.0 mm.W.C., 0.0 to +100.0 mm.W.C. |
| Accuracy | +/-0.5% of Full Scale |
| Sensors | Integrated High Speed Differential Pressure Sensor |
| Display | Integrated 4 Digit Red LED 7 Segment Display 0.8” |
| Unit Selection | Factory Fixed Selection for mm.W.C/Pascals |
| Analog Output | 4-20 mA ( Optional Contact Store ) |
| Communication | Standard RS485 Modbus for BMS/ SCADA Integration |

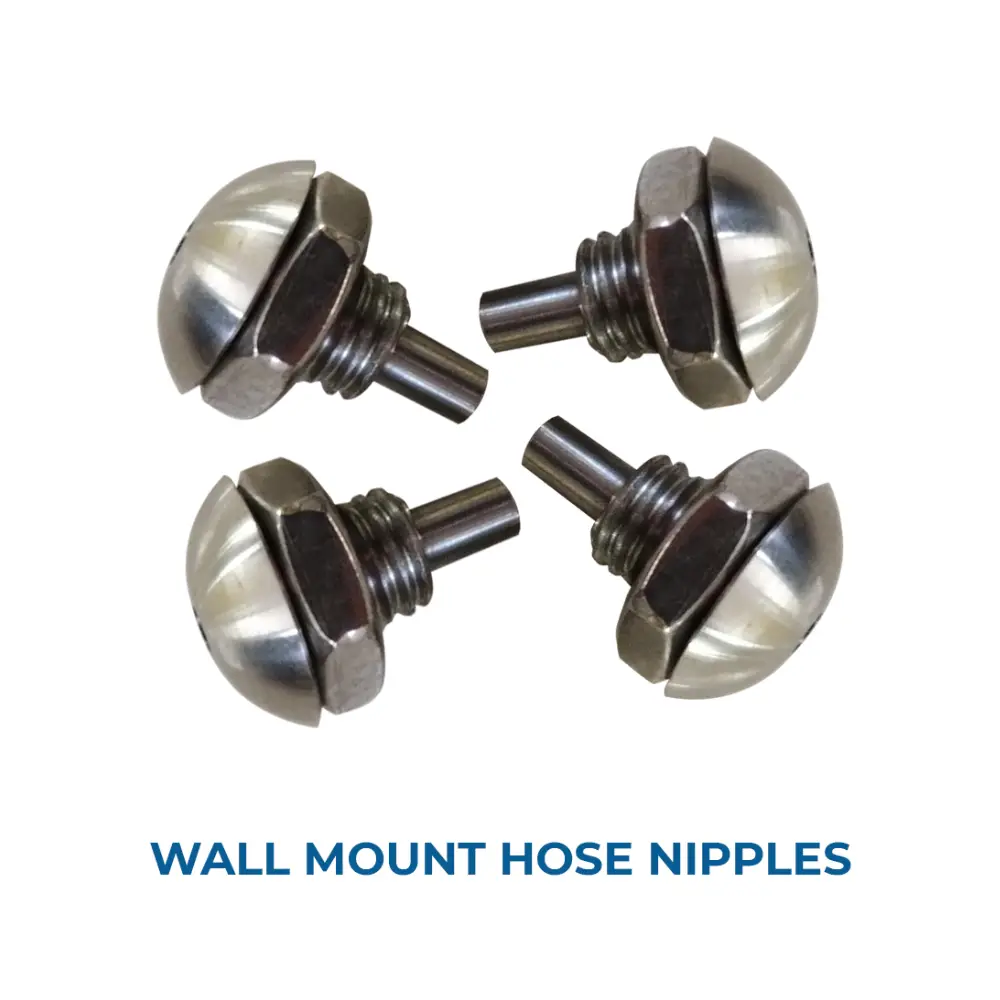

| Connection | 2 Nos. Hose Nipples of 4mm. Stainless Steel at the Back |
| Alarms | Built In High & Low Buzzer Alarm for Process Set Parameter Violation with Acknowledgement Key |
| Medium | Air or Gases ( Non Corrosive ) |
| Enclosure | Stainless Steel Front Flush Plate with M.S. Powder Coated Body |
| Mounting Type | Modular Wall Fitment in Clean Rooms |
| Power Supply | Universal 110–230 VAC, 50/60 Hz to 24 VDC Power Adapter with Region-Specific Power Plug (US,UK,UAE,EU) |
| Weight | 400 Grams |
| Dimensions | Instrument Enclosure is in 100×90×30 mm. (W×H×D) |
| Supply Scope | 1 Unit of Digital Differential Pressure Indicator, Power Adaptor, Silicone Tube, Instruction Manual, and Factory Calibration Certificate |
| Calibration | Will be provided at no extra cost valid for 1year traceable to Electronic Test & Development Centre |
| Warranty | 12-Month Warranty Against Manufacturing Defects |
| Manufacturer | Ace Instruments |
