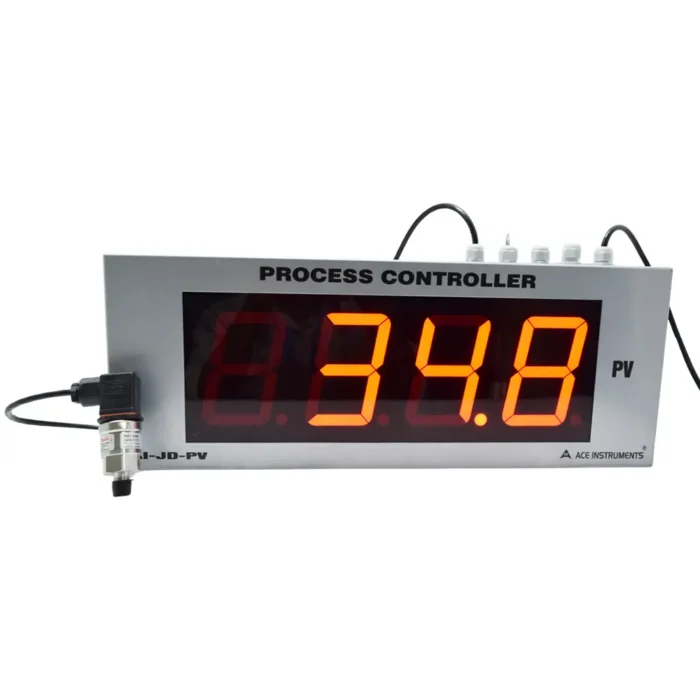

Jumbo Display Process Controller with Pressure Transmitter provides accurate and reliable pressure monitoring for industrial process applications. The integrated Pressure Sensor enables real-time pressure measurement, while the large display allows operators to view process values clearly from a distance. With its digital indication, it can function as a Digital Pressure Gauge for continuous monitoring and process control. Designed for stable operation and easy configuration, the system is suitable for manufacturing plants, process industries, HVAC systems, and other demanding industrial environments.
Applications: Industrial process, HVAC, Chemical and process industries, Hydraulic power units, Manufacturing and production plants, Manufacturing and production plants, Air compressor monitoring.
Jumbo Display Process Controller with Pressure Transmitter is a high-performance microcontroller integrated with the pressure transmitter for accurate industrial pressure measurement. It features a bright, large LED display for clear long-distance process visualization and real-time monitoring, making it an effective Large Display Pressure Transmitter solution. Supporting universal inputs including 4-20 mA Pressure Transmitter, RTD Pt-100, and thermocouples (J, K, R, S), it offers flexible and reliable process compatibility. Designed for continuous industrial operation, it ensures stable performance, fast response, easy configuration, and enhanced process control.
| Model No | AI-JD-PV-PR |
|---|---|
| Measuring Parameters | Pressure |
| Sensor | Pressure Sensor (MBS-3000) |
| Pressure Range | 0-1 bar to 0- 600 bar (Other Ranges Please Contact Store) |
| Accuracy | ±0.5% FS |
| Response Time | < 4 ms |
| Operating Temperature | -40°C to +85°C |
| Output | 0-10V, 4-20 mA |
| Overload Capacity | 6 X FS (max. 1500 bar) |
| Controller | Pressure Process Controller |
| Display | 4 Digit 7 Segment LED Display of Height 4'' |
| Excitation Voltage | Optional: 24V.D.C., 50mA Built In Supply for transmitter |
| Input | User Selectable: 4-20 mA,RTD Pt-100,J,K,R & S thermocouple |
| Retransmission | Optional: 4-20 mA Retransmission |
| Mounting | Wall Mounted |
| Enclosure | Front SS back M.S. Powder Coated |
| Dimensions | 5.3 x 5.3 x 14 cm |
| Weight | 2.5 kg approx |
| Power Supply | Standard 230 V.A.C., 50 Hz. / Optional 24 VDC |
| Supply Scope | 1 Unit of Process Controller with Pressure Transmitter, Instruction Manual & Calibration Certificate. |
| Calibration Certificate | Provided at no extra cost, traceable to National/International Standards, Valid for 1 year only |
| Warranty | 1 Year Manufacturing Warranty |
| Manufacturer | Ace Instruments |
