Digital Pirani Gauge Ace DHPG 210

Name: Buy Top 5 Digital Pirani Gauge | Reliable | Instrukart
Availability: InStock

Excl. VAT · Price in AED

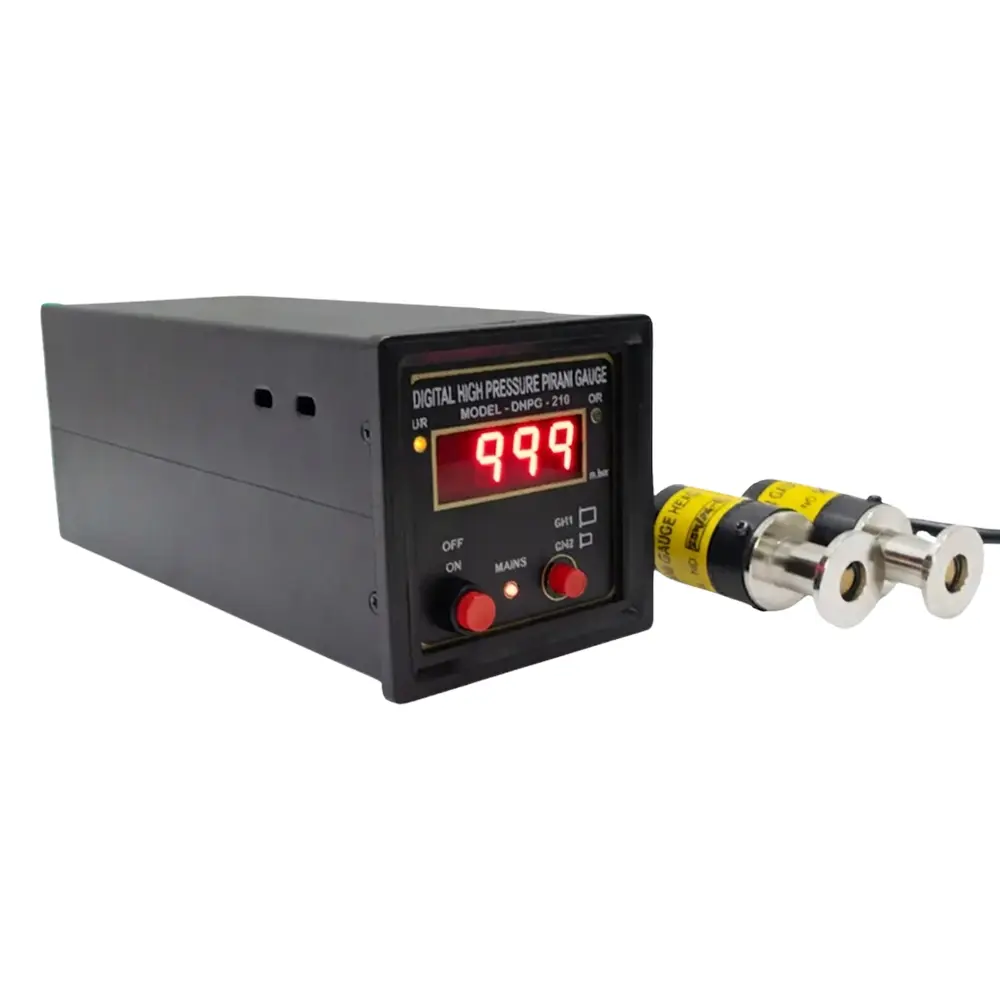

Digital Pirani Gauge Ace DHPG 210 is a reliable vacuum measurement device designed for precise and consistent vacuum monitoring across industrial applications. This Digital Vacuum Gauge features a high-accuracy Pirani sensor, microcontroller-based operation, and a clear 4-digit LED display for easy readings. As an Industrial Vacuum Gauge, it is suitable for sputtering units, coating systems, diffusion pumps, ejector systems, and other high-vacuum equipment. The Vacuum Monitoring Instrument supports KF10 connections and is available with single or dual gauge head options for flexible installation and dependable performance.

Applications: Vacuum Packaging, Vacuum Furnaces, Freeze Drying, Semiconductor Processing, Vacuum Coating, Vacuum Chambers, Sputtering Systems, Diffusion Pumps, and Vacuum Pump Monitoring.

In Stock

Select Model

Clear

🔒 Secure Checkout

✅ Genuine Products

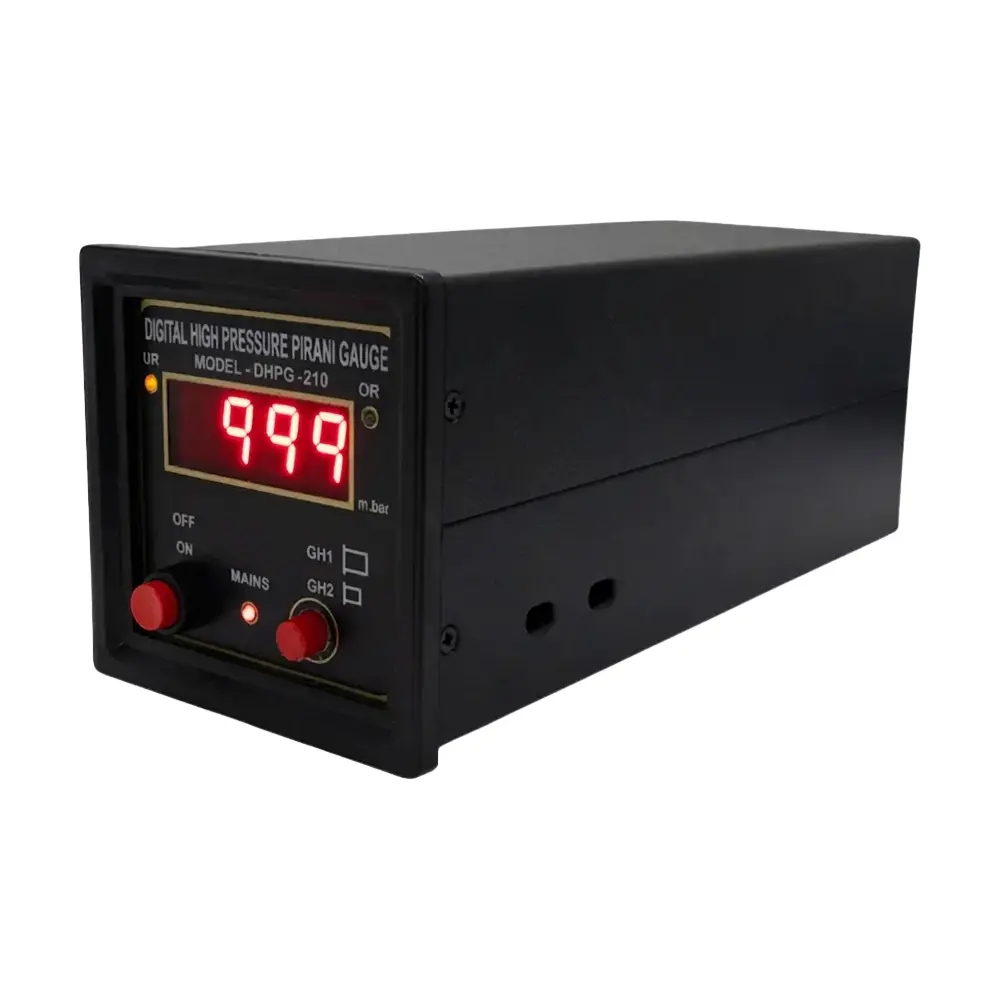

Digital Pirani Gauge DHPG 210 is a compact and reliable vacuum measurement instrument designed for accurate monitoring down to 0.001 mBar. It features a clear 4-digit LED display, panel-mount design, and adjustable set point with relay output for efficient vacuum process control.

Features of Digital Pirani Gauge Ace DHPG 210 :

Wide Vacuum Measurement Range 999 mBar to 0.001 mBar (1 Micron)
High Accuracy Pirani Sensor Provides reliable vacuum measurement with ±10% full-scale accuracy
Microcontroller-Based Design Ensures stable and reliable operation

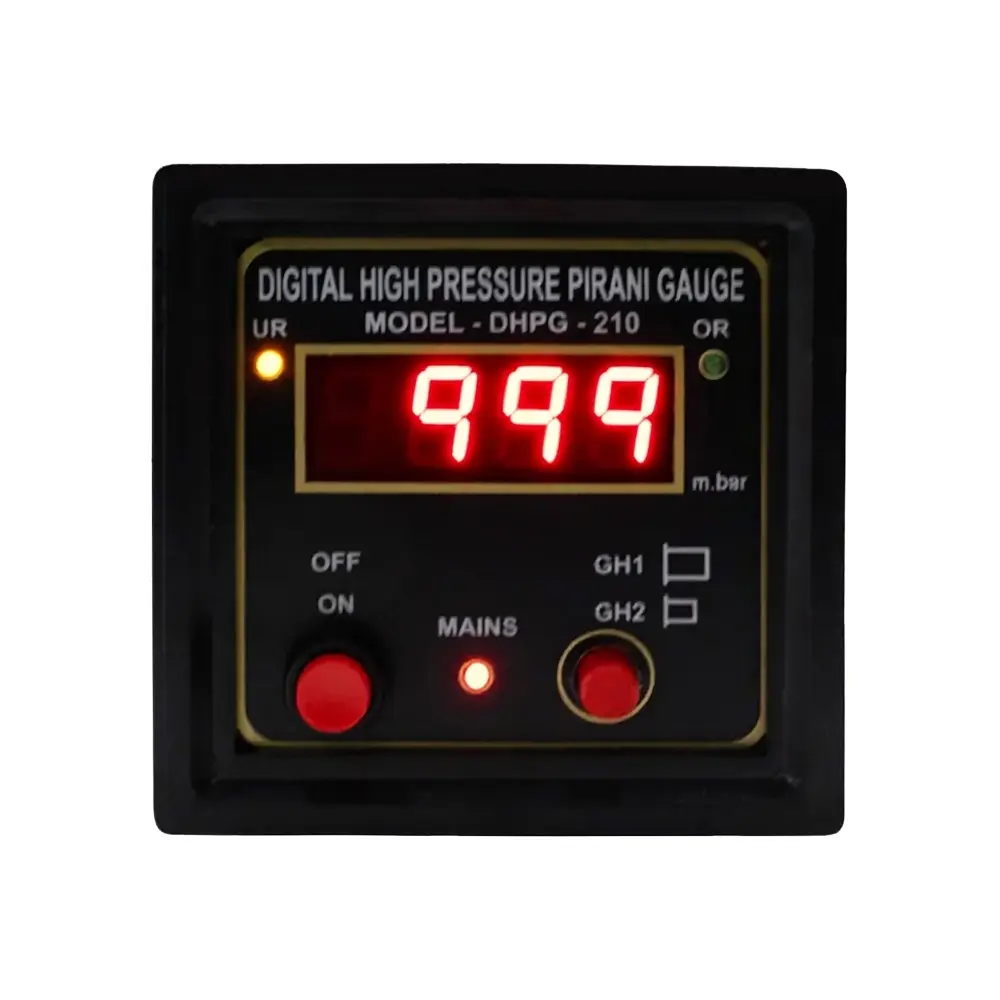

4-Digit LED Display Clear 7-segment display with automatic decimal resolution

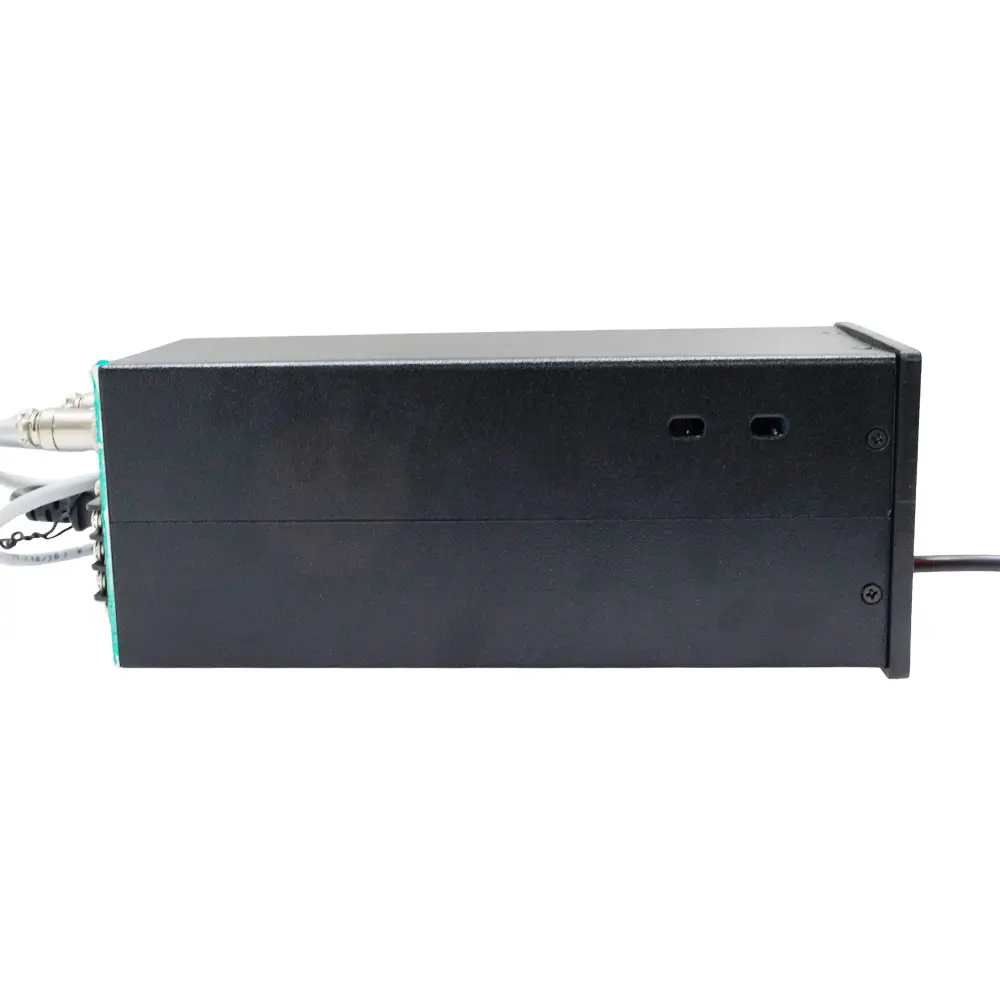

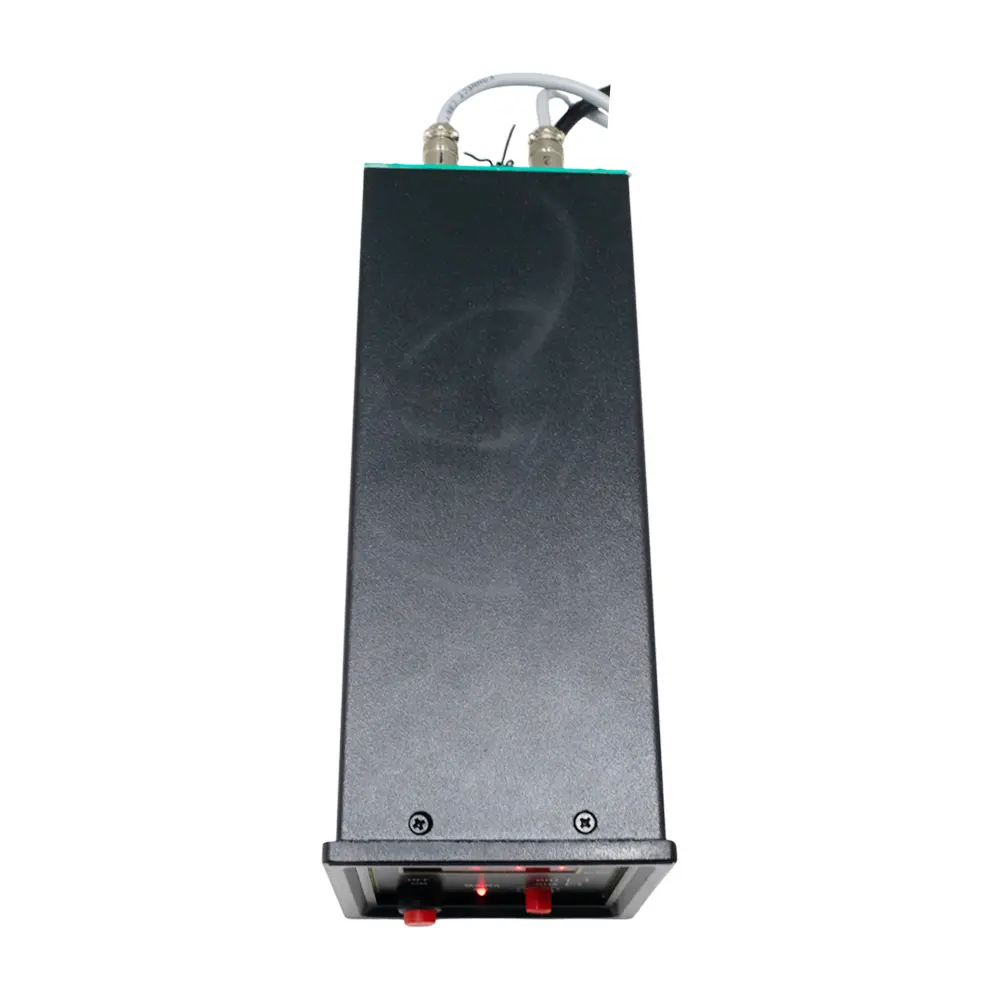

Panel Mounting Design Enables easy and convenient installation

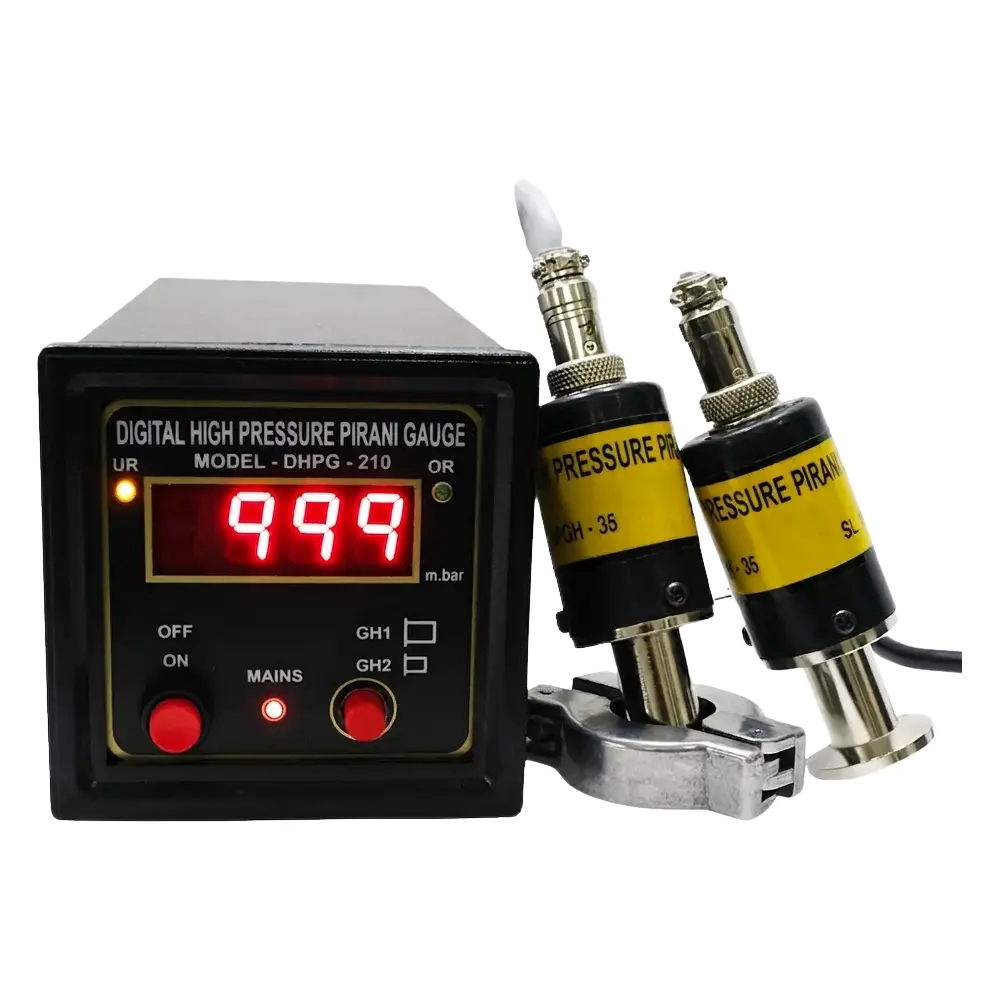

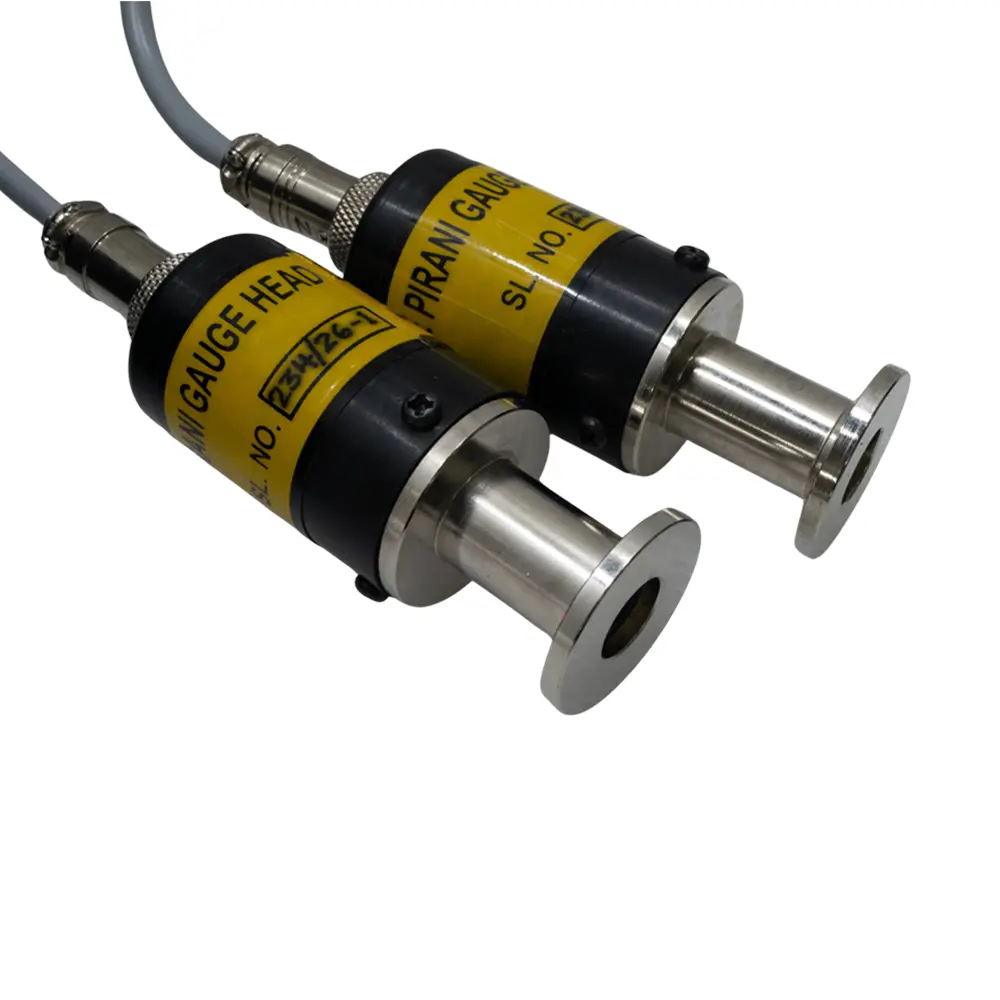

Single or Dual Gauge Head Available in multiple configurations
KF10 Flange Connection Simple and secure vacuum sensor connection
Set Point Relay Output Available on selected IS model for vacuum control
Factory Calibrated Calibration traceable to NABL standards

Model No	DHPG 210
Select Model	AI-DPHG-011 / AI-DHPG-210 Digital Pirani Gauge, AI-DPRG-015 / AI-DPRG-01 Pirani Gauge with Dual Gauge Head, AI-DPRG-1GH-SP / AI-DHPC-011S Pirani Gauge with Set Point Controller
Measuring Parameters	Vacuum
Measuring Range	999 mBar to 0.001 mBar ( 1 Micron )
Accuracy	±10% on Full Scale
Display	4 Digits Auto-Ranging, 0.5” High Display Red Color 7 Segment Type
Relay Output	Relay Set Point available only on Model DHPC-011S ( 1 Set of NO/CO/NC)
Weight	1500 Grams
Dimension	240 x 10 x 10 mm (L X B X H)
Power Supply	110-230VAC 50-60Hz With Region-Specific Power Plug (US,UK,UAE,EU)
Supply Scope	1 Unit of Digital Pirani Gauge, Power Adaptor, Instruction Manual and Factory Calibration Certificate with NABL Standard
Calibration Certificate	Provided along with and valid for 1 year, traceable to National Standards.
Warranty	1 Year Manufacturer Warranty
Manufacturer	Ace Instruments
Weight	1.5 kg
Dimensions	Array

DS_Digital-Pirani-Gauge-Ace-DHPG-210_Ver0.1-1.pdf (2 MB)
