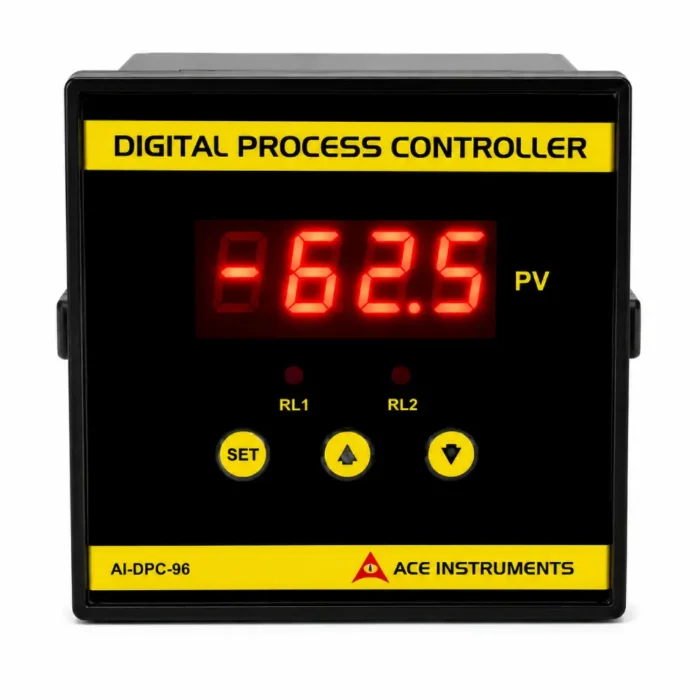

Industrial Process Controller ACE AI-DPC96 offers a compact and versatile solution for accurate monitoring and regulation of industrial processes. Designed to work with temperature sensors, thermocouples, and 4–20 mA signals, it supports flexible measurement and control applications. This Industrial Temperature Controller features a clear LED display, relay-based control, and analog retransmission output. As reliable Process Control Equipment, it is suitable for industrial automation, process monitoring, and temperature regulation. The Digital Process Controller enables efficient integration into various industrial control systems.
Applications: - Chemical Industries, HVAC Systems, Food & Beverage Processing, Pharmaceuticals, Cold Storage, Automotive Manufacturing, Machinery Rooms, Industrial Ovens, Furnaces, Process Skids, Packaging Machines, Refrigeration Systems, and Industrial Automation.
Industrial Process Controller is a versatile digital controller designed for reliable measurement and process control in industrial environments. It supports multiple signal types, including RTD Pt-100, J-Type and K-Type Thermocouples, and 4–20 mA inputs, allowing it to work with different sensors and process instruments. The front-key input selection makes configuration quick and convenient without requiring external programming tools. Equipped with dual relay outputs featuring NO, CO, and NC contacts, the controller provides flexible switching and control for various industrial processes. Its 4–20 mA retransmission output enables integration with PLC, SCADA, and other automation systems for remote monitoring and centralized process management.
| Model No | AI-DPC96 |
|---|---|
| Measuring Parameter | Universal Process Signals |
| Range | RTD Pt-100: -100.0 to +400.0°C, J-Type: 0 to 750°C, K-Type: 0 to 1200°C, R-Type: 0 to 1750°C, S-Type: 0 to 1750°C, 4–20 mA: -999 to +9999 (Zero & Span), 0–10 VDC: -999 to +9999 (Zero & Span) |
| Accuracy | ± 1% Full Scale |
| Resolution | 0.01, 0.1 |
| Display | 4 digit Red LED Display, 0.56" High, 7 Segment |
| Analog Outputs | Standard two wire 4-20mA Analog retransmission |
| Communication | Optional RS485 MODBUS output, Contact store |
| Relay Output | 2 Relay Outputs (2 Sets of NO/CO/NC) |
| Enclosure | ABS Plastic Body Panel Mounted Type |
| Weight | 520g |
| Dimensions | 96X96 mm Panel Mounting |
| Power Supply | 230VAC 50-60Hz With Region-Specific Power Plug (US,UK,UAE,EU) |
| Supply Scope | 1 Unit Process Controller, Calibration Certificate & User Manual |
| Calibration Certificate | Provided along with and valid for 1 year, traceable to National Standards. |
| Warranty | 12-Month Warranty Against Manufacturing Defects |
| Manufacturer | Ace Instruments |
| Weight | 12 kg |
| Dimensions | Array |
| SKU / Model | S-0096 |
